Quick Details
-
Product Name:
-
Spa pool cartridge filter
-
Color:
-
blue
-
Flow rate:
-
5.5m3/h/11.4m3/h/17m3/h/22.9m3/h/33.4m3/h
-
Filter area:
-
2.25,4.63,7.00,9.38,13.72m2
-
Valve connections:
-
1.5inch 50mm
-
Max working pressure:
-
350kpa/50psi/3.5bar
-
Usage:
-
Swimming pool filter
-
Advantage:
-
Superior Quality+Favorable
-
Package:
-
Carton Package
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PIKES
-
Model Number:
-
AF25/AF50/AF75/AF100/AF150
-
Product Name:
-
Spa pool cartridge filter
-
Color:
-
blue
-
Flow rate:
-
5.5m3/h/11.4m3/h/17m3/h/22.9m3/h/33.4m3/h
-
Filter area:
-
2.25,4.63,7.00,9.38,13.72m2
-
Valve connections:
-
1.5inch 50mm
-
Max working pressure:
-
350kpa/50psi/3.5bar
-
Usage:
-
Swimming pool filter
-
Advantage:
-
Superior Quality+Favorable
-
Package:
-
Carton Package

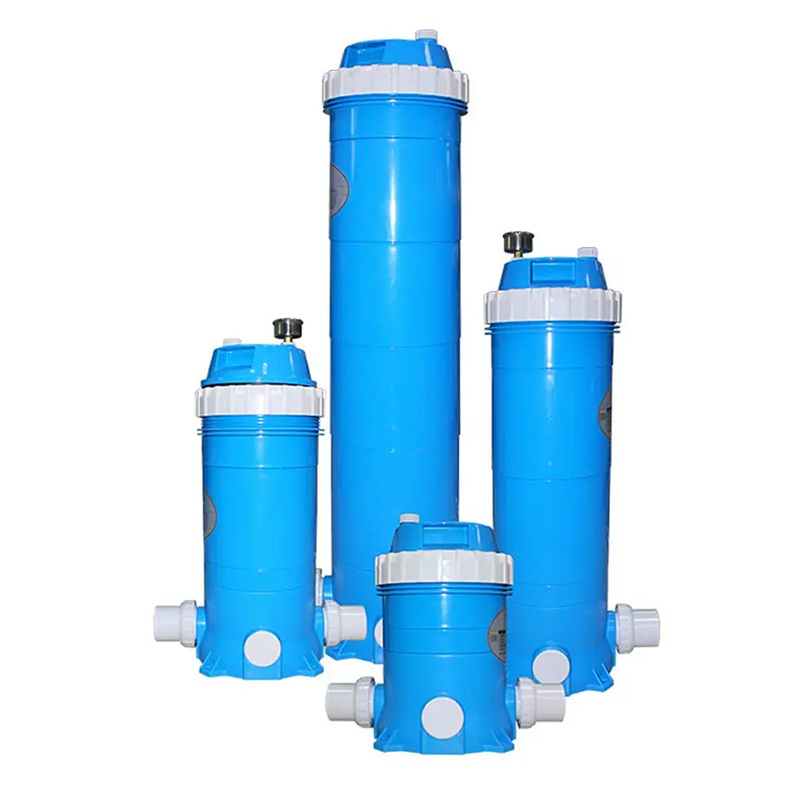

Aqua High Quality Pool Water Filter Cartridge Swimming Pool Cartridge Filter Spa Paper Cartridge Filters with Factory Price
Cartridge filtration is an effective trouble-free proven method of filtration. Pool water enters the filter and passes through a polyester single element cartridge. Suspended particles are trapped and the water is returned to the pool. As the build-up of dirt in the element increases, so the water pressure rises and the flow decreases. When the pressure reaches an unacceptable level, the element must be removed and cleaned.
Product Description
|
Model
|
High A(mm)
|
High B (mm)
|
Diameter C(mm)
|
Diameter D(mm)
|
Fitration Area
|
Design Flow
|
|
AF 25
|
445
|
387
|
225
|
397
|
2.25 m²
|
5.5 m³/h
|
|
AF 50
|
625
|
567
|
225
|
397
|
4.63 m²
|
11.4 m³/h
|
|
AF 70
|
805
|
747
|
225
|
397
|
7 m²
|
17 m³/h
|
|
AF 100
|
985
|
927
|
225
|
397
|
9.38 m²
|
22.9 m³/h
|
|
AF 150
|
1165
|
1107
|
225
|
397
|
13.72 m²
|
33.4 m³/h
|
