Quick Details
-
Brand Name:
-
NOYAFA, Noyafa
-
Model Number:
-
NF-8601W
-

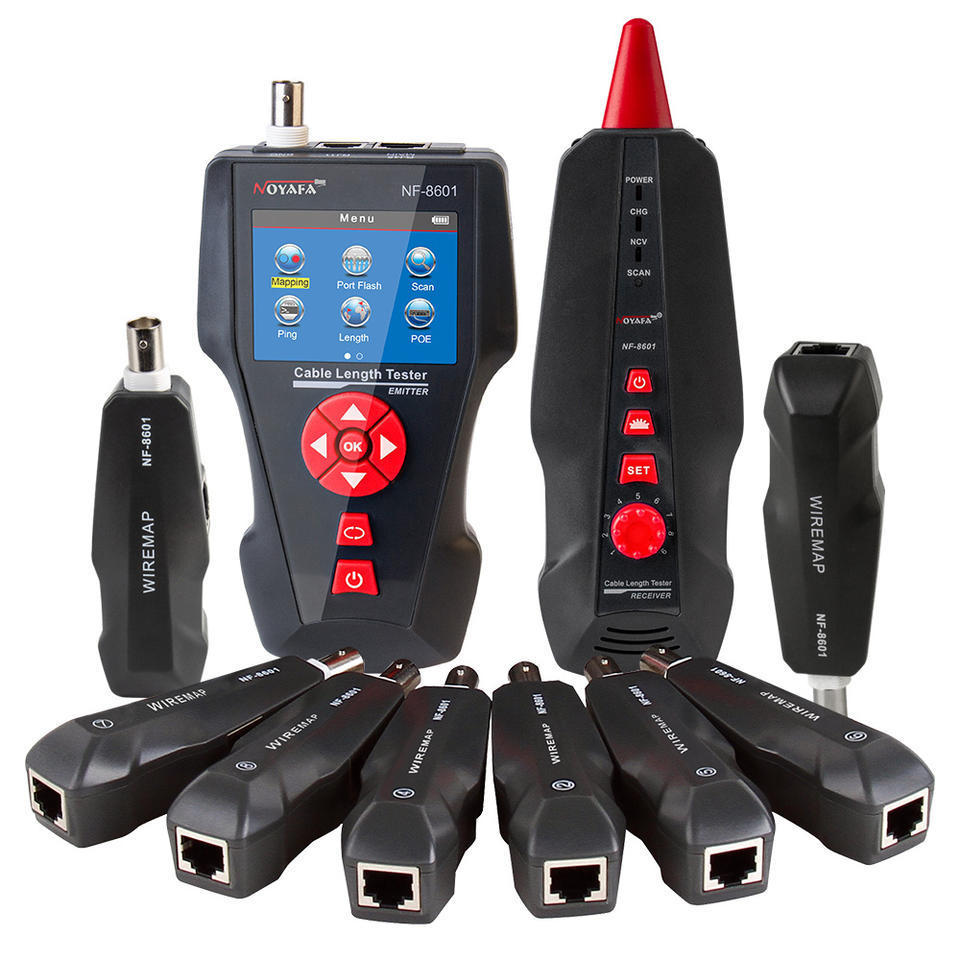

Product name:
-
LCD cable length tester
-
Color:
-
black
-
Is customized:
-
yes
-
Port:
-
RJ45, RJ11, BNC, USB,PING ,POE
-
test length:
-
RJ11,RJ45 ,BNC
-
Tracking type:
-
RJ45, RJ11, BNC and Metal Cable
-
Other function:
-
TF function
-
Power supply:
-
3.7V lithium battery
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
NOYAFA, Noyafa
-
Model Number:
-
NF-8601W
-
Product name:
-
LCD cable length tester
-
Color:
-
black
-
Is customized:
-
yes
-
Port:
-
RJ45, RJ11, BNC, USB,PING ,POE
-
test length:
-
RJ11,RJ45 ,BNC
-
Tracking type:
-
RJ45, RJ11, BNC and Metal Cable
-
Other function:
-
TF function
-
Power supply:
-
3.7V lithium battery
Products Description
|
Main function
|
|
1. PoE function: identify which pins are providing power and detect how much voltage . 2. PING function to test network
performance, data packet, min & max time. 3.Tone trace cable with complete AC Interference Rejection 4. Hub blink for locating network port by the flashing port light on Hub / Switch. 5. TF function to import and export data from comupter (160 sets, txt format). 6. Measure length of network cable, coaxial cable, telephone cable. 7. Quickly find the targeted cable without stripping isolation among unknown cables. 8. Capable to test open, short, cross connection, 9. Perform crosstalk test on network cable to solve the potential problem of slow speed. 10. 8 remote units help test 8 cable's continuity at one time. 11. Tone trace breakage and short position roughly. 12. Voltage detector: included in receiver (90-1000V) |
Specification
|
NF-8601W Transmitter specifications
|
|
|
|
Indictor
|
LCD 320x240 mm, with back light
|
|
|
Cable test types
|
STP/UTP 5E,6E network , telephone , coacial cable
|
|
|
Max. distance of wiremap
|
1000m
|
|
|
Max. distance of tracing
|
1000m
|
|
|
Max. distance of cable length
|
1000m
|
|
|
Max. distance of calibration
|
50m
|
|
|
Accuracy
|
up to 98%(after calibration)
|
|
|
Compatible connectors
|
RJ11,RJ45, PING/POE,BNC
|
|
|
Cable map indication
|
LCD (#1-#8)
|
|
|
Battery Type
|
3.7V lithium battery 1800mAh
|
|
|
Work temperature / humidity
|
10℃ ~ -60℃ / 0℃~70℃
|
|
|
Dimension(LxWxD)
|
173x92x34mm
|
|
|
NF-8601W Receiver specifications
|
|
|
|
Frequency
|
130kHz
|
|
|
The Max. working current
|
Less than 70mA
|
|
|
Earphone jack
|
1
|
|
|
LED illumination
|
2 LEDs
|
|
|
Battery type
|
Lithium battery
|
|
|
Dimensions (LxWxD)
|
218 x 46 x 29mm
|
|
|
NF-8601W Remote unit specifications
|
|
|
|
Compatible with connectors
|
RJ11,RJ45,BNC
|
|
|
Dimensions (LxWxD)
|
107 x 30 x 24mm
|
|
|
Remote units
|
8pcs
|
|
Product packaging
|
Packing
|
|
Transmitter demension(L*W*D): 173*92*34mm
Receiver demension(L*W*D): 183*58*35mm
Remote demension(L*W*D): 106*32*30mm
|
