Quick Details
-
Brand Name:
-
Twilight Optic
-
Use:
-
CATV, HFC Network, FTTH
-
Warranty Time:
-
Limited
-
Product Name:
-
Outdoor 2 Output CATV Optical Receiver
-
Optical connector type:
-
FC/APC or SC/APC
-
Fiber Type:
-
Single-mode
-
Input Optical wavelength:
-
1100-1600 nm
-
Optical Return Loss:
-
≥45 dB
-
Input Optical Power:
-
-15~+2 dBm
-
Recommended Input Optical Power:
-
-10~0 dBm
-
Dimensions:
-
220x140x100 MM
-
Weight:
-
0.7 KG
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
TW-CATV-Optical Receiver-2P-R1
-
Place of Origin:
-
China
-
Brand Name:
-
Twilight Optic
-
Use:
-
CATV, HFC Network, FTTH
-
Warranty Time:
-
Limited
-
Product Name:
-
Outdoor 2 Output CATV Optical Receiver
-
Optical connector type:
-
FC/APC or SC/APC
-
Fiber Type:
-
Single-mode
-
Input Optical wavelength:
-
1100-1600 nm
-
Optical Return Loss:
-
≥45 dB
-
Input Optical Power:
-
-15~+2 dBm
-
Recommended Input Optical Power:
-
-10~0 dBm
-
Dimensions:
-
220x140x100 MM
-
Weight:
-
0.7 KG
Optical Node With Return Path For CATV Outdoor Optical Receiver 2 Outpus SM SC/FC APC
Product Detail
| Product Name | Outdoor 2 Output CATV Optical Receiver |
| Type | CATV8684-2M |
| Optical connector type | FC/APC or SC/APC |
| Fiber Type | Single-mode |
| Input Optical wavelength | 1100-1600 nm |
| Optical Return Loss | ≥45 dB |
| Input Optical Power | -15~+2 dBm |
| Recommended Input Optical Power | -10~0 dBm |
| Dimensions | 220x140x100 MM |
| Weight | 0.7 KG |
| Product Keywords | optical receiver 2 outpus,optical receiver with return path for CATV,Outdoor optical receiver 2 outpus SM SC/FC APC |
Description
CATV8684-2M Optical Receiver caters to standard optical power or ultra-low optical power receiving, low-noise amplification, high level output technology, good (C/N, CTB, CSO) property, high-quality aluminum tensile alloy shell, good shielding effect, stable performance, cost-efficiency. lt applies to HFC network and it can realize FTTH, make network easier, lower cost and higher quality.
Features
(1) Exclusive use good quality modular PIN tube.
(2) Downlink signal gallium arsenide dual power output template, high output indicators, output level can be adjusted.
(3) Protection circuit is equipped for power supply and control circuit, with low-powe rconsumption design,more stable and reliable for the equipment.
(4) Input optical power displayed with LED, sensitivity 1dBm, convenient for debugging.
(5) Unique optical control AGC circuit, making the output optical power unchanged when input level is between +2 dBm to-8dBm, C \CTB C \ CSO s also basically unchanged.
(6) lt can add network management function, caters to GB/T20030-2005 standard, and it can monitor the working station, power voltage, output level and receiving optical power.
Application
CATV8684-2M Optical Receiver is an equipment to convert optical signal to RF signal, with amplification function to achieve transmission of image, sound and data signal.

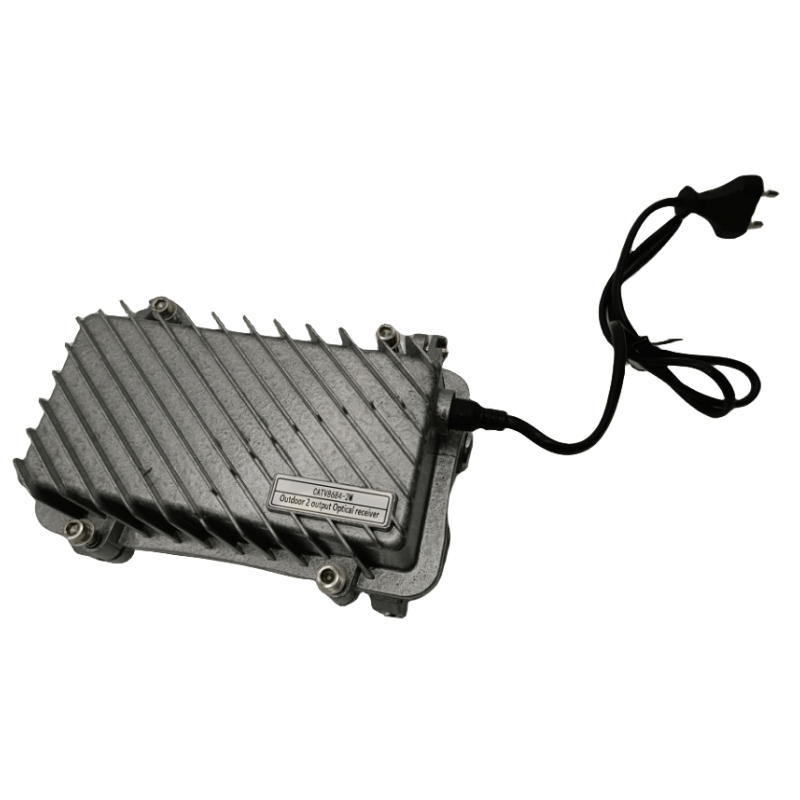

Detailed Pictures
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
