Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RGX-P2.5mm
-
HS Code:
-
8532100000, 8528591090
-
Application:
-
Indoor Led Video Wall
-
Pixel Pitch:
-
2.5mm
-
Control Protocol:
-
Novastar/Huidu/Linsn Control System
-
LED Chip:
-
Kinglight/Nationstar/MBI/CREE
-
Screen Dimension:
-
Size by Customize
-
Certificate:
-
CCC,FCC,ROHS,TUV,CE,ETL,BIS
-
Warranty:
-
3~5 Years
-
Refresh Rate:
-
1920Hz-3840Hz
-
Power Supply:
-
Meanwell/G-enegry/YOYI
Quick Details
-
Type:
-
LED
-
Brand Name:
-
RGX
-
Color:
-
Full Color
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
RGX-P2.5mm
-
HS Code:
-
8532100000, 8528591090
-
Application:
-
Indoor Led Video Wall
-
Pixel Pitch:
-
2.5mm
-
Control Protocol:
-
Novastar/Huidu/Linsn Control System
-
LED Chip:
-
Kinglight/Nationstar/MBI/CREE
-
Screen Dimension:
-
Size by Customize
-
Certificate:
-
CCC,FCC,ROHS,TUV,CE,ETL,BIS
-
Warranty:
-
3~5 Years
-
Refresh Rate:
-
1920Hz-3840Hz
-
Power Supply:
-
Meanwell/G-enegry/YOYI

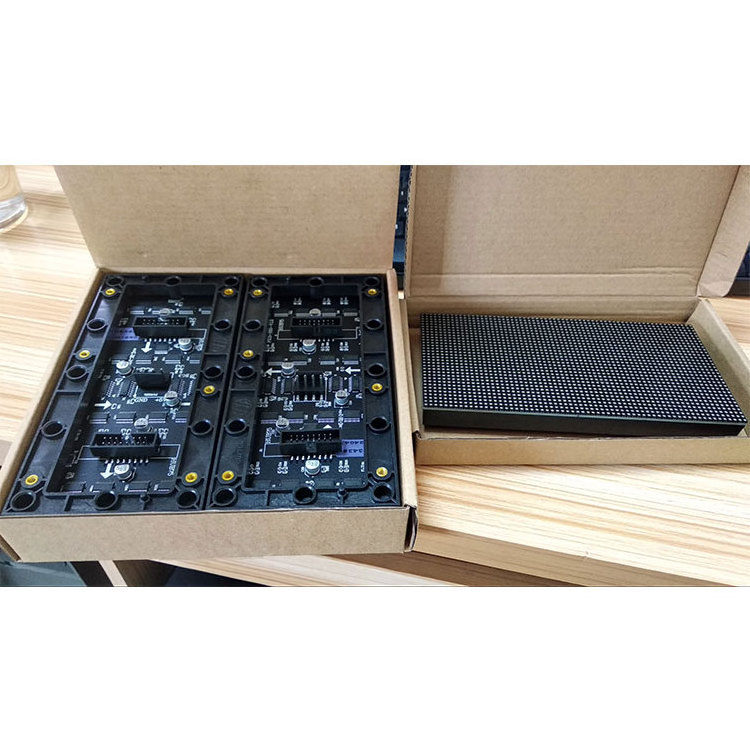

Latest New Model Indoor Led Module P2.5 160X80Mm 64X32 Pixel Dmx Rgb Smd P2.5 Led Panel Hub75 Matrix Led Rgb
|
Package LED Mode
SMD 2121 |
Pixel Density
160 ,000 dots/ sqm
|
Module Resolution
64x32 dots
|
Module Size
160(w) x80 (h) mm
|
|
Scanning Method
1/32 scan
|
Brightness
≥1,600 cd/sqm |
Color Temperature
3200K-9300K (adjustable) |
Pixel Configuration
3in1 (1 R 1 PG 1 B ) |
|
Input Voltage
5V
|
Lifespan
85,000~100,000 hours
|
Gray Level
RGB 256 graylevel
|
Viewing angle
Horizontal 160°, Vertical 140° |
Note: Each LED module comes with a 16PIN LED modules flat signal cable and a DC5V LED modules power cable.
You'd better buy all LED modules at a time for one LED display, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
We recommend that you purchase the LED display cabinet as the smallest unit for assembly.
Need to be personalized, Please
leave a message
to our sales staff for the LED display system solution.
