Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12700
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8.6*2.5*3.4
-
Cargo Tank Dimension:
-
5.8*2.5*1.7
-
Product name:
-
Dump Truck
-
Driving type:
-
LHD RHD
-
Emission:
-
Euro 2.3.4.(optional)
-
Max speed(km/h)(km/h):
-
102
-
Dimension(Lx W xH)(mm):
-
8685x2496x3850
-
Overhang(front/rear) (mm):
-
1500/725
-
Wheel base (mm):
-
3625+1350
-
Power:
-
400hp/295kw.2000r/min
-
Displacement(L):
-
11.896
-
Color:
-
Customer's Request
Quick Details
-
Condition:
-
Used
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
12700
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8.6*2.5*3.4
-
Cargo Tank Dimension:
-
5.8*2.5*1.7
-

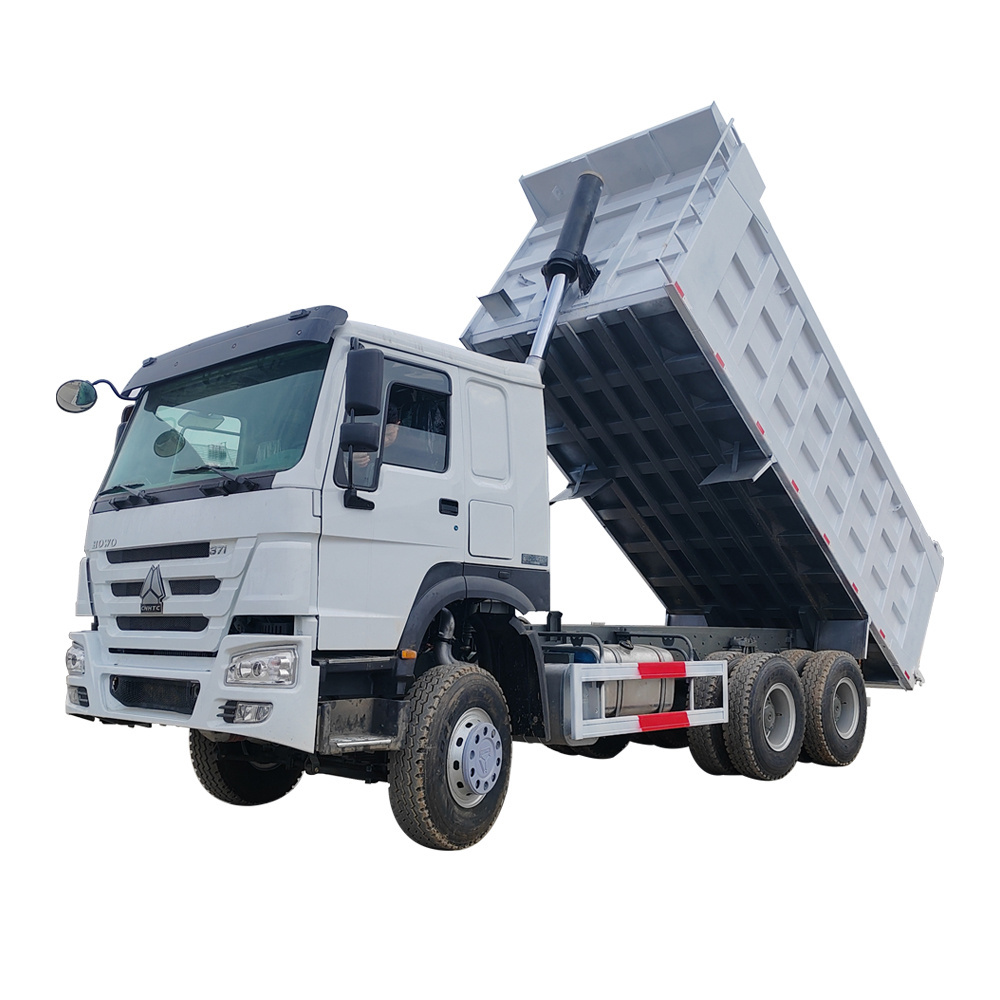

Product name:
-
Dump Truck
-
Driving type:
-
LHD RHD
-
Emission:
-
Euro 2.3.4.(optional)
-
Max speed(km/h)(km/h):
-
102
-
Dimension(Lx W xH)(mm):
-
8685x2496x3850
-
Overhang(front/rear) (mm):
-
1500/725
-
Wheel base (mm):
-
3625+1350
-
Power:
-
400hp/295kw.2000r/min
-
Displacement(L):
-
11.896
-
Color:
-
Customer's Request
Products Description
Specification
|
VEHICLE SPECIFICATION
|
DESCRIPTION
|
|
|
Truck Model
|
ZZ3257S3647W
|
|
|
Truck Brand
|
SINOTRUK—HOWO
|
|
|
Driving Position
|
Left hand Driving
|
|
|
Fuel tanker capacity（L）
|
300
|
|
|
The Total Mass
|
35,000kg
|
|
|
Cargo box
|
5600x2300x1500 mm
|
|
|
Box thickness
|
Boot 8mm side 6mm
|
|
|
Dead Weight
|
12300kg
|
|
|
Hydraulic Jack
|
Front Lift
|
|
|
Max speed（km/h）(km/h)
|
102
|
|
|
Color
|
Optional
|
|
|
Chassis & Add Components
|
|
|
|
Frame Details
|
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members.
|
|
|
Dimension(Lx W xH)（mm）
|
8685x2496x3850
|
|
|
Overhang(front/rear) (mm)
|
1500/725
|
|
|
Wheel base (mm)
|
3625+1350
|
|
|
Engine
|
|
|
|
Model
|
WP 12.400E201
|
|
|
Power
|
400hp/295kw.2000r/min
|
|
|
Emission
|
EURO II
|
|
|
Displacement(L)
|
11.896
|
|
|
Type
|
water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
|
|
Kind of Fuel
|
Diesel
|
|
|
Fuel Consumption(L/100km)
|
25L/100km
|
|
|
Clutch & Gear Box System
|
|
|
|
Clutch
|
SINOTRUKΦ430mm diaphragm spring clutch
|
|
|
Gear Box
|
HW19710
|
|
|
Axles
|
|
|
|
Front Axle Model
|
VGD95 axle. Capacity: 9000kg
|
|
|
Rear Axle
|
HC16 axle. Capacity:2X 16000kg
|
|
|
Ratio of rear axle
|
4.8
|
|
|
Electrical System
|
|
|
|
Battery
|
2X12V/165Ah
|
|
|
Alternator
|
28V-1500kw
|
|
|
Starter
|
7.5Kw/24V
|
|
|
Brake System
|
|
|
|
Service brake
|
Dual circuit compressed air brake
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
|
Auxiliary brake
|
Engine exhaust brake
|
|
|
Steering system
|
|
|
|
Model
|
ZF8118
|
|
|
Type
|
hydraulic steering with power assistance
|
|
|
Wheels & Tyres
|
|
|
|
Type
|
1200R20
|
|
|
Material
|
Steel tires
|
|
|
Quantity
|
10+1 spare
|
|
|
Cabin
|
|
|
|
Type
|
HW76 Standard cabin
|
|
|
single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper
system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
|
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated
or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines.
All controls,inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently
achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide
you lowest shipping fee.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated
or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines.
All controls,inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently
achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide
you lowest shipping fee.
