Quick Details
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
W-Re5/26
-
Product name:
-
Type CThermocouple
-
Surface:
-
Bright/Oxidized
-
Standard:
-
IEC 584, ASTM
-
Size:
-
Customized Size
-
Chemical composition:
-
NiCr,NiAl
-
Packing:
-
on spool or as coil
-
Certificate:
-
ISO
-
M.O.Q.:
-
1KG
-
Delivery time:
-
0-7 Days
Quick Details
-
Application:
-
Temperature measure
-
Conductor Material:
-
Tungsten Rhenium
-
Conductor Type:
-
Solid
-
Insulation Material:
-
FeP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
W-Re5/26
-
Product name:
-
Type CThermocouple
-
Surface:
-
Bright/Oxidized
-
Standard:
-
IEC 584, ASTM
-
Size:
-
Customized Size
-
Chemical composition:
-
NiCr,NiAl
-
Packing:
-
on spool or as coil
-
Certificate:
-
ISO
-
M.O.Q.:
-
1KG
-
Delivery time:
-
0-7 Days
Product Description
What is The Thermocouple sensor?
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a hot junction,which is exposed to the heat source. The terminals of the two wires are connected to the temperature measuring instrument(an electronic display unit).
What is the RTD(Resistance Temperature Detector)?
While the thermocouple measures temperature with the voltage between two dissimilar metal wires, RTD measures by the resistance of a simple wire.The resistance value changes as the temperature changes. The most popular RTD is PT100.Not only it offers accuracy, but also provides stability and repeatability. For more information about PT100, just feel free to message us.
Type C/Type D/ Type G Temperature range 0--2300°C
Type C/D/G W-Re wire are born only for measuring extremely high temperatures, max 2300°C,and continue workable in around 2000°C, vaccum or inert gas
enviroment. The W-Re wires are usually protected by Tungsten tube(sheath) or Molybdenum tube. Normal ceramic or Stainless steel material will not work under such high temperature.
A simple picture shows how the Thermocouple works
when the hot junction experiences a change in temperature, a voltage is created between the two wires(the Seeback effect) . The voltage can then be interpreted using thermocouple reference tables to calculate the temperature. The probe from Hot junction to the cold junction is mostly called Thermocouple. This is how a thermocouple measures temperature.
Thermocouple Wire types(the dissimilar metal wires)
The thermocouple wire is the key to measuring temperature. It goes by pair meter. One pair meter includes both Positive and Negative wire. It is suggested to select wires according to the heat source. Type C & Type D & Type G thermocouple wire are commonly used for temperature around 2000
°C. They are not listed in the ASTM Standards.
|
Code
|
+Positive leg
|
-Negative leg
|
Temperature Range
|
|
N
|
Ni-Cr-Si(NP)
|
Ni-Si-Mg(NN)
|
-454 to 2300°F (-270 to 1,260°C)
|
|
K
|
Ni-Cr-Si(KP)
|
Ni-Al(KN)
|
–454 to 2,300°F (–270 to 1260°C)
|
|
E
|
Ni-Cr(EP)
|
Cu-Ni<constantan>(EN)
|
-454 to 1600°F (-270 to 870°C)
|
|
J
|
Iron(JP)
|
Cu-Ni<constantan>(JN)
|
-346 to 1,400°F (-210 to 760°C)
|
|
T
|
Copper(TP)
|
Cu-Ni<constantan>(TN)
|
-454 to 700°F (-270 to 370°C)
|
|
B
|
Platinum Rhodium-30%
|
Platinum Rhodium-6%
|
32 to 3100°F (0 to 1700°C)
|
|
R
|
Platinum Rhodium-13%
|
Platinum
|
-58 to 2700°F (-50 to 1480°C)
|
|
S
|
Platinum Rhodium-10%
|
Platinum
|
-58 to 2700°F (-50 to 1480°C)
|
|
C
(W-Re5/26)
|
Tungsten 5% Rhenium
|
Tungsten 26% Rhenium
|
212 to 4172°F (100 to 2300°C)
|
|
D
(W-Re3/25)
|
Tungsten 3% Rhenium
|
Tungsten 25% Rhenium
|
212 to 4172°F (100 to 2300°C)
|
|
G
(W-Re26)
|
Pure Tungsten
|
Tungsten 26% Rhenium
|
212 to 4172°F (100 to 2300°C)
|
Type K Thermoelectric Voltage
A chart Interpreting the Voltage into the Temperature Celsius for Type K thermocouple wire.
Type B Noble Metal Thermoelectric Voltage in mv
A chart Interpreting the Voltage into the Temperature Celsius for Type B thermocouple wire.
How to measure the Flat surface & Curved surface temperature?
The Pad type
Probe is designed for use in industrial applications to measure surface temperature
by way of attachment via weld, braze, cement, or clamp. The pad is flexible to easy form to the contour of a flat or curved surface.
by way of attachment via weld, braze, cement, or clamp. The pad is flexible to easy form to the contour of a flat or curved surface.

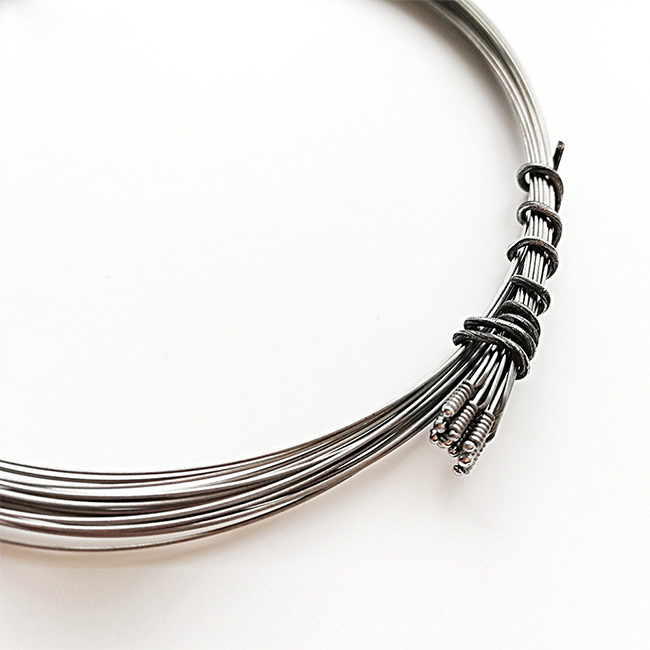

Thermocouple wire by pairs
Select the thermocouple wires as per the temperature range.For example, if the target is over 2000
°C, Type C WRe5/26 wire is suggested.
Thermocouple Probe with Bend
The probe can be fabricated with different materials, stainless and Nickel based inconel product. Some can be bent to meet the measure conditions.
Welded on the curved surface
When required to measure the temperature of irregular shapes,curved surface, round surface, welding the pad on the surface is recommended.
