Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
220V/50HZ/2.5KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisheng
-
Dimension(L*W*H):
-
1200*1060*2030mm
-
Product Name::
-
triangle tea bag filling vertical packing machine
-
Number of scales:
-
(optional 4 scales/6 scales/8 scales)
-
Bag size:
-
Inner bag: width 40-80MM length 60-80MM
-
Feeding method:
-
High-precision electronic scale feeding
-
Packing speed:
-
20-70 bags/min (depending on the material)
-
Measuring range:
-
0.5-7g
-
Air pressure:
-
0.8mpa
-
Air consumption:
-
0.6m3/min
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, counting, Accurate weighing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper, Nylon non-woven fabric
-
Weight (KG):
-
450
-
Voltage:
-
220V/50HZ/2.5KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qisheng
-
Dimension(L*W*H):
-
1200*1060*2030mm
-
Product Name::
-
triangle tea bag filling vertical packing machine
-
Number of scales:
-
(optional 4 scales/6 scales/8 scales)
-
Bag size:
-
Inner bag: width 40-80MM length 60-80MM
-
Feeding method:
-
High-precision electronic scale feeding
-
Packing speed:
-
20-70 bags/min (depending on the material)
-
Measuring range:
-
0.5-7g
-
Air pressure:
-
0.8mpa
-
Air consumption:
-
0.6m3/min
Applied to :

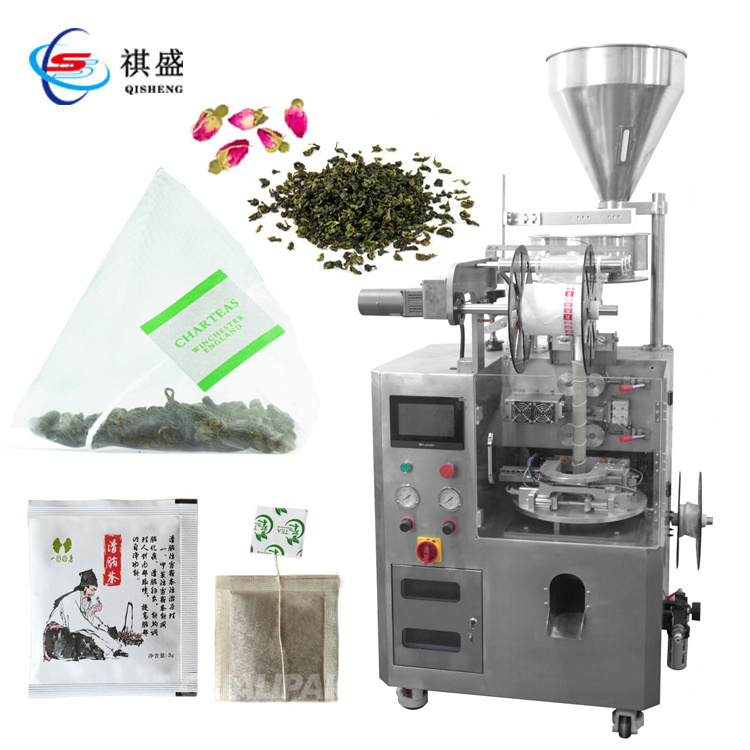

The triangular tea bag packaging machine is suitable for green tea, black tea, scented tea, rose, jasmine, osmanthus, coffee, healthy tea, Chinese herbal tea, sealwort maca, kudzu root Hovenia granules, etc. food, medicine and other industries
Features:
1. Applicable packaging materials: nylon triangular tea bag, non-woven triangular tea bag, corn fiber triangular tea bag (corn fiber three-dimensional triangular tea bag is favored by consumers for its degradability and environmental protection). 120, 140, 160, 180 (180 optional) triangular three-dimensional packaging, flat packaging can be automatically switched.
2. Applicable to triangular tea bag tags: it can solve the automatic production of any personalized customized hang tags: heart-shaped, butterfly, square, triangular and other shaped tea bag tags.
3. Ultrasonic non-marking sealing (firm sealing, hygienic, safe), touch screen electronic scale measurement and feeding method (simple operation, high precision).
4. It can automatically complete functions such as weighing, bag making, sealing, cutting, counting, finished product delivery (optional), finished product weight detection (optional).
| Parameter | |
| Model | ZLD-NB (optional 4 scales/6 scales/8 scales) |
| Bag size | Inner bag: width 40-80MM length 60-80MM |
| Feeding method | High-precision electronic scale feeding |
| Packing speed | 20-70 bags/min (depending on the material) |
| Measuring range | 1-7g |
| Power | 220V/50HZ/2.5KW |
| Air pressure | 0.8mpa |
| Air consumption | 0.6m3/min |
| Total Weight | 450KG |
| Dimensions | 1200*1060*2030mm |
| Standard configuration | |
| Name | Brand |
| Core control system | Delta |
| Servo | Inovance |
| Emergency button | Konaida |
| Start stop button | Konaida |
| Intermediate relay | Omron |
| Photodetector | BoJke |
| Touch screen | FS |
| Air switch | Tengen |
| Air cylinder | AirTAC |
