Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/Neutral
-
Model Number:
-
L08-I7-8550U
-
Memory Capacity:
-
DDR4 4G/8G/16G
-
Storage:
-
1* mSATA SSD + 1* SATA 2.5" HDD/SSD
-
Size:
-
23.0*17.5*5.0 CM
-
Interface:
-
8* USB; 2* LAN; 1* HD; 1* VGA; 6* RS232; 1* GPIO; 1* LPT; 1* PS2; SPK
-
Case Material:
-
Brushed Aluminum Alloy
-
CPU:
-
Intel Core i7-8550U, 4 Core 8 Thread
-
WIFI:
-
2.4GHz/5.0GHz Wifi Optional
-
Processor Main Frequency:
-
1.8GHz, turbo 4.0GHz
-
Power Supply:
-
12V 5A Adaptor
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM/Neutral
-
Model Number:
-
L08-I7-8550U
-
Memory Capacity:
-
DDR4 4G/8G/16G
-
Storage:
-
1* mSATA SSD + 1* SATA 2.5" HDD/SSD
-
Size:
-
23.0*17.5*5.0 CM
-
Interface:
-
8* USB; 2* LAN; 1* HD; 1* VGA; 6* RS232; 1* GPIO; 1* LPT; 1* PS2; SPK
-
Case Material:
-
Brushed Aluminum Alloy
-
CPU:
-
Intel Core i7-8550U, 4 Core 8 Thread
-
WIFI:
-
2.4GHz/5.0GHz Wifi Optional
-
Processor Main Frequency:
-
1.8GHz, turbo 4.0GHz
-
Power Supply:
-
12V 5A Adaptor

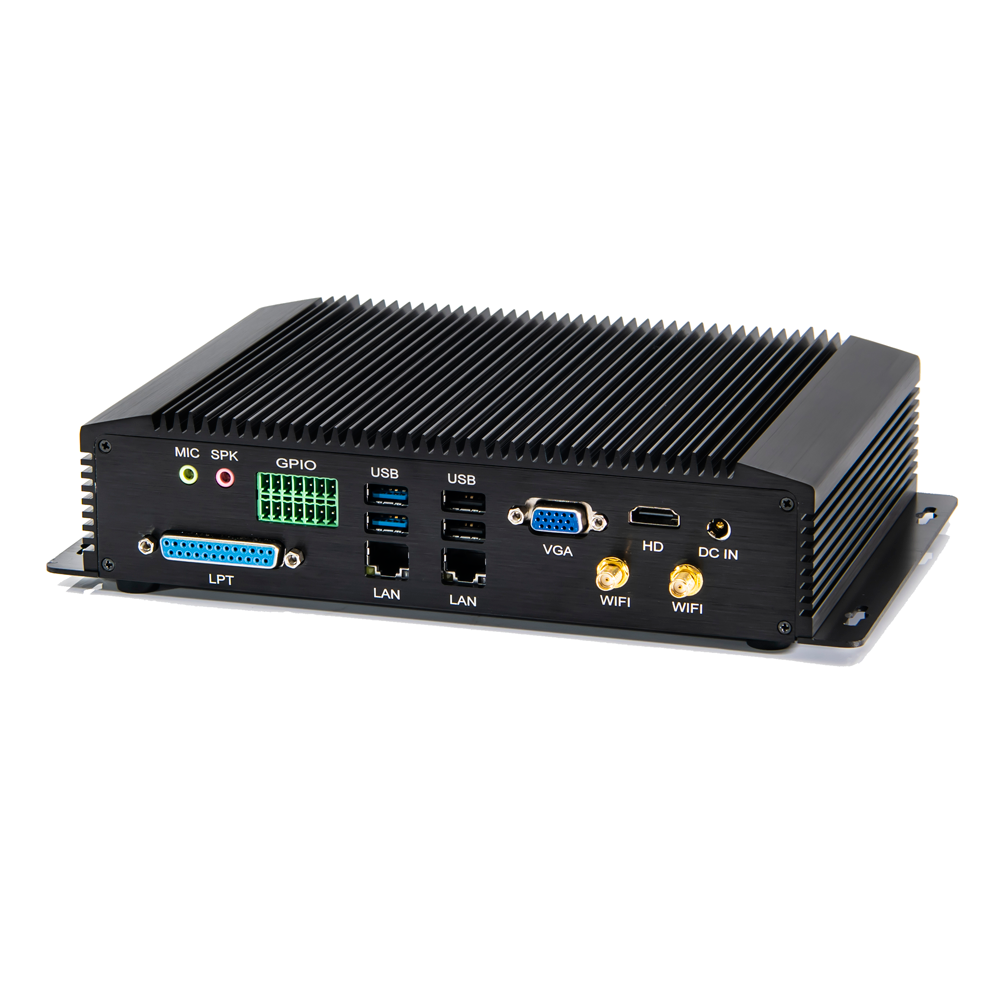

8Th Gen i7 8550U Fanless Mini PC Intel CPU 12V Industrial Embedded Computer Rugged Tiny PC 2 Ethernet Linux Win10 Din Rail Mount
1. Main characteristics
190mm x 150 mm custom structure;
Intel 8th/7th/4th/5th -U FCBGA1168 package CPU;
Support single channel DDR4 SODIMM memory;
1 x VGA interface, 1 x HDMI interface, 1 x dual channel 24 bit LVDS(Optional);
Provide 4 x USB 2.0 interface;
Provide 4 x USB 3.0 interface;
Provide 1 x PS2 interface for Mouse / Keyboard;
Provide 1 x SATA 2.0 interface;
Provide 6 x RS232 serial port;
Support mSATA SSD solid state drive;
Provide 2 x Gigabit Ethernet interface;
Provide a Mini-PCIE slot;
Support onboard motherboard diagnostics;
Support 12V DC power supply, DC power supply has reverse connection protection function, the power supply will not cause damage to the motherboard and external power supply.
2. Working environment
Working temperature: -10 ° C ~ +60 ° C
Storage temperature: -20 ° C ~ +85 ° C
Working humidity: 10% ~ 90%
Storage humidity: 5% ~ 95%, no condensation
Item Specifications
|
Processor |
Intel Core i7-8550U Processor, 4 core 8 thread, turbo 4.0 GH z |
|
Chipset |
Intel FCBGA1168 package CPU |
|
Memory |
Max 16G DDR4 2400/2666MHz laptop memory, 1* 260 pin SO-DIMM |
|
Storage Capacity |
Support 1* 2.5 inch SATA laptop HDD or SS D , 1* mSATA SSD |
|
Graphics |
Intel® UHD Graphics 620 |
|
Power Supply |
DC 12V/5A |
|
OS |
Windows8, 10 and all kind Linux OS |
|
Function |
Watch dog, Auto power on after power loss, PXE Boot, RTC Wake Up, Non-disk boot, State lamp interface, etc |
|
Case Material |
Full Brushed Aluminum Alloy |
| Dimension | 23*17.5*5 cm |
|
I/O |
1* HD 4K output +1* VGA Full HD output; |
|
2* Intel i213 Gigabit RJ45 Lan |
|
|
1* half height mini PCIe WiFi + 1* Full size mini PCI express slot + 1* SIM card slot |
|
|
4 * RS232+ 2*RS232/RS422/RS485 COM Port |
|
|
1* GPIO + 1* LPT + 1* PS2 |
|
|
4* USB 2.0 + 4* USB 3.0 |
|
|
1* SPK + 1* MIC, High Definition Audio Controller |
|
|
1* DC 12V Power interface |
|
|
Temperature |
-10~60 degrees |
|
Warranty |
30 days free defective replacement and 3 years free repair |
|
Relative humidity |
0~90% relative humidity |
|
TDP |
Theoretically max 15W, Real use max 8.7W |
|
TDP Down |
7.5W |
|
Weight |
NW 2.0kg, GW 2.5kg |
|
Package Content |
1* Mini PC; 1* power adapter; 1* power cord; 2* Antennas(optional); 1* Driver CD; 1*User manual, etc |
Main advantages
- Small size:
all Adeli fanless mini pcs smaller than A4 paper, some of the small size pc only 3.5-inch size, just like the HDD sized using it traditional fat computers. Most of that small size fanless mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
- Durability:
all those fanless mini pcs are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminum alloy computer case, very durable.
- Low power:
all the Adeli fanless mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
- Universal performance:
Adeli fanless mini pcs compatible with almost all popular operating systems, such as Win10, Linux. You can use this mini computer as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.
- Silent operation:
fanless mini pc also name as silent computer, quiet mini pc or silent desktop pc. As there is no fan inside, the pc runs totally silent all day long, make sure you can keep wholehearted in to your work.
What can this mini computer do?
- Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
- Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others
- Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
- Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs
- Used as server, used at industrial machine, hospital, etc
Item Details View:
