More than 50 years of overseas HVAC project experience，we have successfully completed hundreds of large-scale HVAC projects and
have a deep understanding of global HVAC projects.
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Hotel,Villa,Apartment ,Office,Building,Hospital
-
Place of Origin:
-
Foshan China
-
Brand Name:
-
Midea
-
Weight (KG):
-
300 KG
-
Product name:
-
Midea vrf vc air coditioner
-
Refrigerant:
-
R410A
-
Power supply:
-
380-415V/3Ph/50(60)Hz
-
Function:
-
Cooling
-
Compressor:
-
DC inverter
-
Noise:
-
57-68db(A)
-
Ambient temp(cooling ):
-
-5℃ to 55℃
-
EER:
-
4.33-2.88
-
Net weight:
-
188kg
-
Cooling capacity:
-
22.4-255kw
Quick Details
-
Type:
-
central air conditioner
-
Mounting:
-
Floor Standing
-
Airflow:
-
35000m³/h
-
Applicable Industries:
-
Hotel,Villa,Apartment ,Office,Building,Hospital
-
Place of Origin:
-
Foshan China
-
Brand Name:
-
Midea
-
Weight (KG):
-
300 KG
-
Product name:
-
Midea vrf vc air coditioner
-
Refrigerant:
-
R410A
-
Power supply:
-
380-415V/3Ph/50(60)Hz
-
Function:
-
Cooling
-
Compressor:
-
DC inverter
-
Noise:
-
57-68db(A)
-
Ambient temp(cooling ):
-
-5℃ to 55℃
-
EER:
-
4.33-2.88
-
Net weight:
-
188kg
-
Cooling capacity:
-
22.4-255kw
Product Presentation

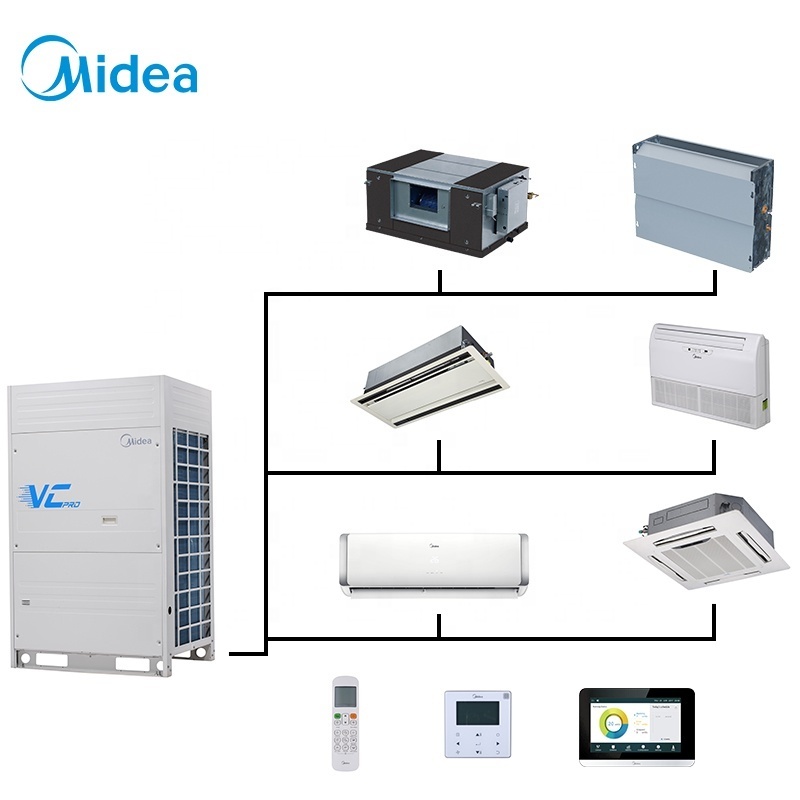

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
Why Choose Us
1.Experience
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint. in this case, you
do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you !
do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you !
3.Professional selectoion
Based on Midea diversified commercial air conditioning system, we can select the most suitable model for your project according to
the drawings.
the drawings.
4.Providing One-Stop Solution of HVAC System
One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control system,
installing accessories(refrigerant copper pipe, UPVC pipes, rubber insulation, hoist,brackets, communication wire etc),
refrigerant tools(vacuum pump, cutter,expansion tools etc), ventilation grill & diffuser etc.
installing accessories(refrigerant copper pipe, UPVC pipes, rubber insulation, hoist,brackets, communication wire etc),
refrigerant tools(vacuum pump, cutter,expansion tools etc), ventilation grill & diffuser etc.
5.Technical Support
HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product
installation on site.
6.After-sales service
We have Global After-Sales System with expertise service. Ensure your after-sales worry-free.
installation on site.
6.After-sales service
We have Global After-Sales System with expertise service. Ensure your after-sales worry-free.
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.
Product Line
|
Product name
|
Midea 380-415V DC inverter VRF VC Pro Series Cooling Only Air Conditioner
|
|
|
|
|||
|
Power Supply
|
380v-415v/3N/50(60)HZ
|
|
|
|
|||
|
Cooling1
|
Capacity
|
22.4KW-255KW
|
86-921KBtu/h
|
|
|||
|
|
Power input
|
5.3-93KW
|
|
|
|||
|
|
EER
|
4.75-2.85KW/KW
|
|
|
|||
|
Compressors
|
Type
|
DC inverter
|
|
|
|||
|
|
Type
|
DC inverter
|
|
|
|||
|
|
Max.ESP
|
20 default (Pa)
|
|
|
|||
|
Refrigerant
|
Type
|
R410A
|
|
|
|||
|
|
|
11000-75000m³/h
|
|
|
|||
|
|
|
58-68dB(A)
|
|
|
|||
|
Ambient temp
|
Cooling
|
-5℃ to54 ℃
|
|
|
|||
VRF VC Pro Series Cooling Only-
Optimized design for small to large
buildings
* META Technology
* Zen Air Technology
* Doctor M Technology
* Triple Confifigurations
* High Effiffifficiency G-Shape Heat Exchanger
* ESP up to 60Pa
* Precise Oil Control Technology
* Multi Silent Modes
* Duty Cycling
* Backup Operation
* Refrigerant Cooling PCB
* Zen Air Technology
* Doctor M Technology
* Triple Confifigurations
* High Effiffifficiency G-Shape Heat Exchanger
* ESP up to 60Pa
* Precise Oil Control Technology
* Multi Silent Modes
* Duty Cycling
* Backup Operation
* Refrigerant Cooling PCB
*
Dust-clean Function
*
Automatic Refrigerant Detecting/Charging
1.Wide Capacity Range
For single unit, the capacity is up to 30HP. For combined units, maximum three 30HP units can be combined with capacity up to 90HP.
2.
Wide Operating Temperature Range
The VC Pro VRF can operate stably in a wide ambient temperature range: from -5°C (-15°C*) to 55°C in cooling mode
3.Long Piping Capability
--Total piping length :1000m
--Longest piping length-actual (equivalent):175m(200m)
--Longest piping length after branch:40/90*m
--Level difference between IDUs and ODU-ODU above (below):90m(110m)
--Level difference between IDUs and ODU-ODU above (below):90m(110m)
--Level difference between IDUs:30m
*The longest length after first branch is 40m as standard but be extended to up 90m under certain conditions.
4.High Efficiency
High Eflciency Enhanced Vapor Injection (EVI) Compressor
The enhanced vapor injection DC inverter compressor increases refrigerant circulation and improves both cooling and heating capacity.
Plate Heat Exchanger (PHE) Subcooling
Plate Heat Exchanger as a secondary intercooler boosts up refrigerant subcooling and improves 10% energy efficiency.
5.
High Reliability
Precise Oil Control Technology
Four stages of oil control technology ensure all outdoor
compressor oil is always kept at a safe level, eliminating any compressor oil shortage problems.
Precise Oil Control Technology
Four stages of oil control technology ensure all outdoor
compressor oil is always kept at a safe level, eliminating any compressor oil shortage problems.
compressor oil is always kept at a safe level, eliminating any compressor oil shortage problems.
Multiple electrical components are integrated into a single
board, the integrated design can reduce the wiring connec
tions greatly, making the electrical wiring more simple and
reliable.
board, the integrated design can reduce the wiring connec
tions greatly, making the electrical wiring more simple and
reliable.
5.Branch Joints
For Heat Pump Outdoor Units
Branch joints for V6 & VC Pro VRFNote:Connecting three outdoor units
For Heat Recovery Outdoor Units
Branch joints between outdoor unitNote: Connecting four outdoor units
For Indoor Units
Branch joints for indoor units
6.Certifications and Authorization
IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification
