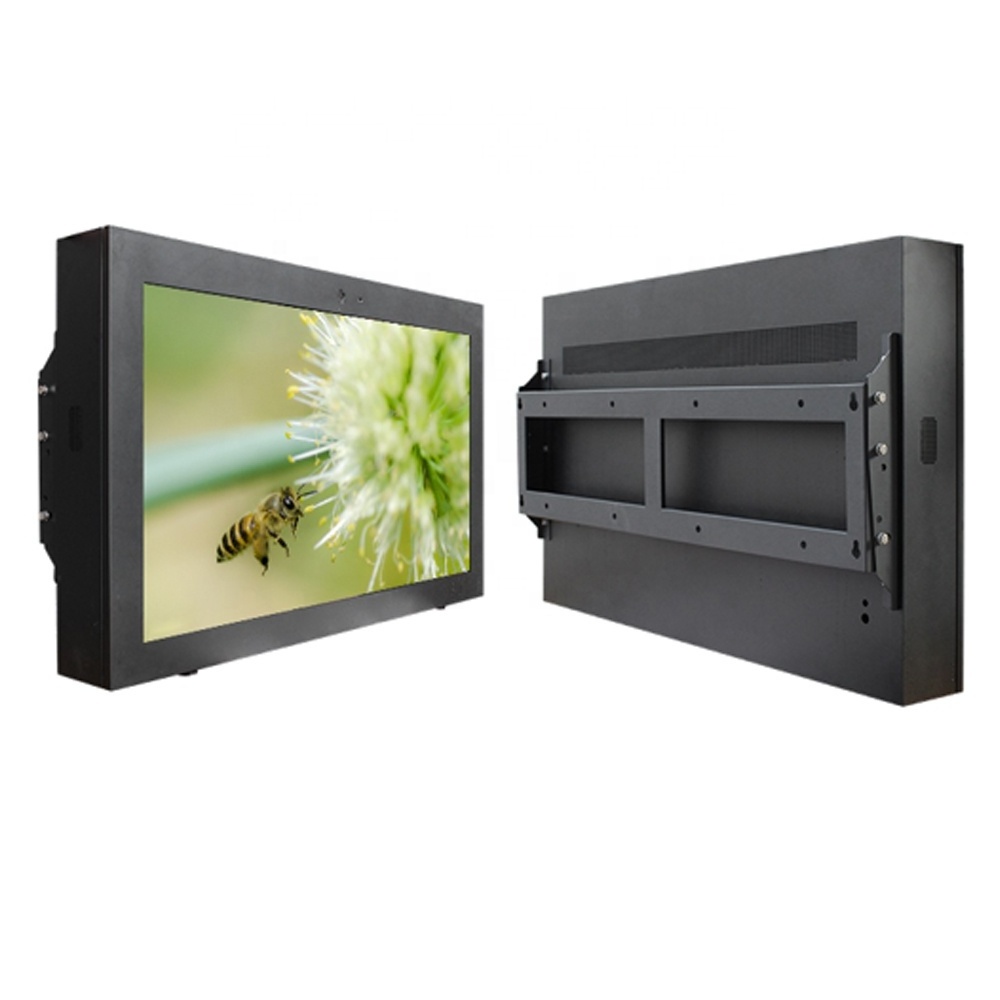

55 65Inch IP55 Waterproof Outdoor Bus Taxi Advertising Player High Brightness 4K Screen Lcd Display Wall Mounted Digital Signage

Android Version

RK3568 2GB+16GB, Android 7.0 OS

Display size

55inch. 1209.5*680.4mm

Internet

WiFi / Ethernet RJ 45 Port

Display rate

16:9

Visual Angle

178

Response time

5ms

Working frequency

60HZ

Resolution

3840(RGB) X 2160(FHD)

Contrast ratio

1500:1

Brightness

2000cd/m2

Colour

16.7 M

supply voltage

12V DC-IN

Outer case

1) Shell design: The shell is made of 1.0-2.0mm galvanized sheet, sprayed with Aksu outdoor special powder, and has been
anti-corrosion for over 7 years.

2) Waterproof design: The shell structure is designed with a waterproof groove and a waterproof maze for the inlet and outlet air
holes, meeting the IP55 protection level.

3) Dust prevention design: The inlet and outlet are designed with a specially designed dust prevention filter (medium to high
efficiency dust prevention filter), which filters out micro dust in the air and prevents mosquitoes and other insects from
entering the interior of the machine.

4) High transmittance glass: The protective glass in front of the entire screen adopts 6mm high transmittance tempered glass or AR
anti glare tempered glass, with a transmittance of ≥ 97% and high transmittance.

5) Maintenance: The entire machine adopts front and rear door opening, which can facilitate the maintenance of internal display
screens, glass, heat dissipation components, and electronic components; The entire machine adopts a modular design, which is
convenient for installation and maintenance.

6) Anti theft design: The base/hanger adopts an internal locking design to prevent the machine from being moved by screws from the
outside, truly achieving safety and anti-theft

Structural characteristics

The entire machine adopts a highly integrated modular design and standardized electrical design, with clear working status and
fast maintenance.

◆ Ultra long service life, 7 * 24 hours of uninterrupted operation, up to over 50000 hours.

◆ IP55 waterproof grade, using all outdoor metal baking paint, moisture-proof, UV resistant, and antioxidant.

◆ Adopting bright industrial grade LED backlight, the brightness can reach 2000cd/㎡, and with 6MM ultra white tempered glass, the
image is clear and visible under strong light.

◆ Adopting an intelligent and precise temperature control system, it not only dissipates heat and saves energy, but also does not
affect the display effect at all.

◆ Automatic environmental light sensing, high temperature protection, lightning protection, leakage protection, overvoltage
overload, waterproof and anti-theft protection, and other comprehensive protection.

The built-in industrial grade motherboard can control the monthly digital signage of the networked generation anytime and anywhere
in the world with a network cable. It supports large capacity SATA hard disk SD card storage media and USB2.0 and SSB3.0
interfaces, allowing your generation of machines to efficiently update items through USB flash drives even when there is no
network.

The product specifications support 1920 * 1080 high-definition video decoding, while supporting multiple split screen program
playback and RSS, PDF, slide show, TXT letter files, etc., perfectly showcasing the charm of multimedia digital advertising for
you.

Display and temperature control

1.1 Adopting an outdoor dedicated high brightness LCD screen with a brightness of 2000nit, visible under strong light, and
designed for a lifespan of 50000 hours.

1.2 High definition image quality, screen resolution: 3840x2160.

1.3 High dynamic contrast, clearer image, with a viewing angle of 178 °.

1.4 Intelligent photosensitive system, which can automatically adjust the screen brightness according to the environment, allowing
users to watch programs clearly/comfortably at different times, protecting their eyes.

1.5 Intelligent color calibration, automatic calibration of contrast colors or manual fine tuning, presenting a perfect picture.

Environmental adaptation parameters

1) The product uses well-known manufacturers' intelligent industrial control motherboards, and can be selected from single
machine/Android/industrial control computer motherboards. The default is Android dual core. Support remote and local program
management (optional).

2) Adopting internationally renowned industrial grade switching power supplies, suitable for different voltages in different
countries around the world, safe, stable, long lifespan, and high energy efficiency.

3) Equipped with built-in leakage protector and lightning protection, providing comprehensive safety protection.

4) Equipped with precise timers, available in both Chinese and English, can be set multiple times, and the machine can be turned
on and off at fixed times by day, week, and month.

5) Over temperature protection: When special circumstances such as blockage of the inlet and outlet air ducts are not detected and
maintained in a timely manner, resulting in high internal temperature, the system will turn off the power supply of the LCD
display screen, and the air cooling system will continue to operate normally to cool down, protecting the main components such as
the LCD screen and motherboard.

Software description

Image: It can support image files in formats such as JPG, BMP, GIF, and PNG.

Video: It can support audio and video files in formats such as VOB, AVI, WMV, MOV, MKV, RMVB, and FLV.

Audio: It can support audio files in formats such as MP3, AAC, APE, WMA, MAV, etc.

Subtitles: Manually add display subtitles, adjust subtitle font size, color speed, etc.

Date: The format (yyyy mm dd, etc.), size, and color of the date can be modified.

Time: The format (hh: mm: ss, etc.), size, and color of the time can be modified.

Week: The format, size, and color of the week can be modified (Monday, Monday, etc.).

Weather: You can add or delete city weather, and modify the weather display style.

Web page: Multiple web page addresses and display time for each page can be manually entered.

Document: supports playing Word, Excel, PPT, PDF files, and setting the playback duration and effect for each page.

Screen division: It can support arbitrary cutting, horizontal, vertical, and free combination and division of playback areas of
the screen.

Resolution; It can support program editing operations with different resolutions.

Support file types: can support component files such as video, audio, pictures, subtitles, PPT, web pages, mixed playback,
applications, weather, clock, tables, etc.

Permission Role Management: Administrators can create new roles and edit and modify role permissions.

User management: Administrators can create new users and assign user roles.

Group management: It can support multi-level group addition, deletion, and modification operations at the terminal.

Terminal control management:

Remote management: It can capture and view real-time information such as the current playing screen and program name of the
terminal.

The terminal can be remotely restarted, turned on, turned off, stopped, played, and adjusted for volume. The terminal can be
upgraded remotely.

Terminal management can perform operations such as terminal grouping, regional setting and naming, and fuzzy query of relevant
terminal information.

supply voltage

12V DC-IN

Power

<350W

Stand-by power consumptio

＜3W

Voltage

AC100-240V 50/60HZ

Stereo sound effect

Rated power: 10W x 2 Peak power :15W x 2

HDM I Output

1* Support 1080P/720P 50/60Hz Output

USB2.0 Interface

1* USB HOST,1* USB OTG / HOST

Working Environment

Power management: Complies with VESA DPMS standards
-30°C ~ 55°C (with fan cooling+heater)

Color

Black, white,silver or customized colors
