Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Festar
-
Model Number:
-
HT-225D
-
Product name:
-
Concrete Rebound Hammer
-
Voltage:
-
220V
-
Keyword:
-
Schmidt Hammer
-
MOQ:
-
1
-
Usage:
-
Concrete Testing Equipment
-
Power Source:
-
220V/50HZ
-
Brand:
-
Festar
-
warrany:
-
1year
-
Impact Energy:
-
0.225 mkg (2.207 Joule)
-
Measurement Range:
-
10 to 70 N²
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Customized support:
-
no
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Festar
-
Model Number:
-
HT-225D
-
Product name:
-
Concrete Rebound Hammer
-
Voltage:
-
220V
-
Keyword:
-
Schmidt Hammer
-
MOQ:
-
1
-
Usage:
-
Concrete Testing Equipment
-
Power Source:
-
220V/50HZ
-
Brand:
-
Festar
-
warrany:
-
1year
-
Impact Energy:
-
0.225 mkg (2.207 Joule)
-
Measurement Range:
-
10 to 70 N²
Resiliometer Digital Concrete Test Hammer, Sclerometer price for Concrete Compressive Strength
Products Description
Resiliometer Digital Concrete Test Hammer, Sclerometer price for Concrete Compressive Strength

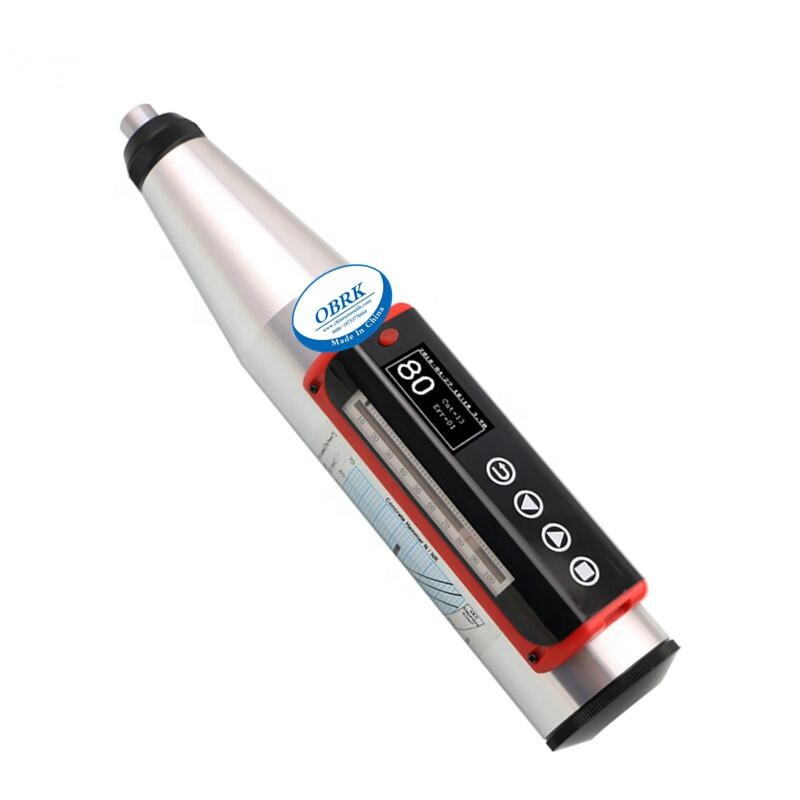

HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically.
HT-225D is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically.
|
Name
|
High quality digital schmidt hammer
|
|
Material
|
Stainless Steel
|
|
Test range
|
10-70Mpa
|
|
Impact energy
|
2.207±0.1J
|
|
Rigidity of tension spring
|
785±30N/m
|
|
Length of spring stretch
|
75±0.3mm
|
|
Static friction of pointer slider
|
0.65N±0.15N
|
|
Radius of spherical tip
|
25mm±1mm
|
|
The average rebound values on steel anvil
|
80±2
|
|
Data storage capacity
|
200 standard components
|
|
Power supply
|
Ni-Mh rechargeable battery
|
|
Dimensions
|
Φ54×280mm
|
|
weight
|
2.5Kg
|
Details Images
It is used for the non-destructive testing of the surface of hardened concrete in order to evaluate the strength in various parts
of a structure
Resiliometer Digital Concrete Test Hammer, Sclerometer price for Concrete Compressive Strength
Resiliometer Digital Concrete Test Hammer, Sclerometer price for Concrete Compressive Strength
Resiliometer Digital Concrete Test Hammer, Sclerometer price for Concrete Compressive Strength
keywords:Digital Concrete Test Hammer Portable Concrete Hammer Tester Concrete Rebound Hammer
Digital concrete test hammer, Rebound Hammer, Mechanical Schmidt Concrete Test Hammer For Concrete Schmidt Rebound Test Hammer,Top Seller ConcreteSclerometer/concrete Rebound Test Hammer
Digital concrete test hammer, Rebound Hammer, Mechanical Schmidt Concrete Test Hammer For Concrete Schmidt Rebound Test Hammer,Top Seller ConcreteSclerometer/concrete Rebound Test Hammer
Our Service
Installation and training
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
After Sale Service
1.One year guarantee for whole machine.
2.24 hours technical support by email or calling
3.If there is any problem found of the machine, we will repair it for free in one year.
