Quick Details
-
Type:
-

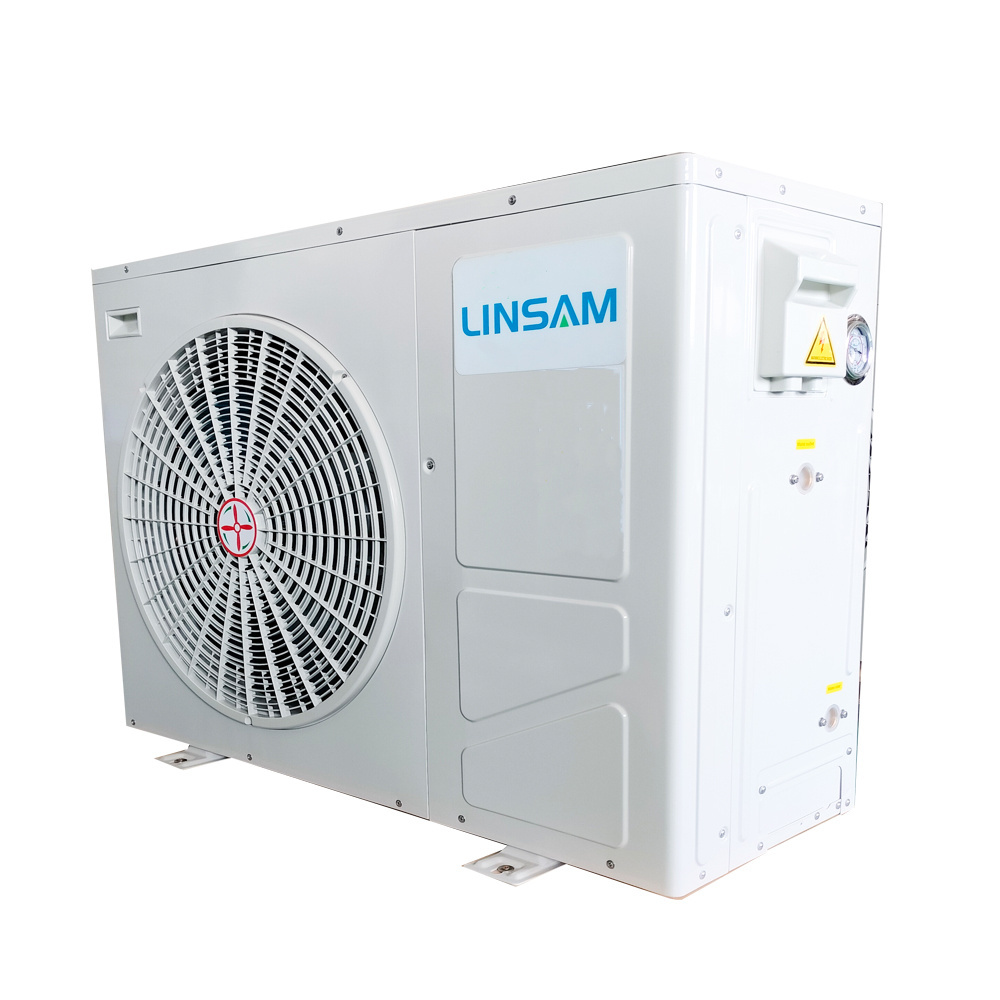

Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
linsam
-
Model Number:
-
TAE-03
-
Heating capacity:
-
9.7kW
-
Compressor:
-
Scroll Copeland
-
Refrigerant:
-
R410A or R417A or R407C
-
Power supply:
-
380V/3Ph/50Hz
-
function:
-
heating and hot water
-
Max outlet water temp:
-
60 degrees
-
Cover:
-
Galvanized steel casing
-
Heat source:
-
Air
Quick Details
-
Warranty:
-
3 years
-
Application:
-
Outdoor, Hotel, Garage, Household
-
Power Source:
-
Electric
-
Type:
-
Air Source Heat Pump
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
linsam
-
Model Number:
-
TAE-03
-
Heating capacity:
-
9.7kW
-
Compressor:
-
Scroll Copeland
-
Refrigerant:
-
R410A or R417A or R407C
-
Power supply:
-
380V/3Ph/50Hz
-
function:
-
heating and hot water
-
Max outlet water temp:
-
60 degrees
-
Cover:
-
Galvanized steel casing
-
Heat source:
-
Air
| EVI Low Temp Heat Pump (heating&hot water) | |||
| Model | TAE-03(side fan) | ||
| Low temp heating capacity(1) | kW | 9.7 | |
| Input power(1) | kW | 2.6 | |
| Hot water output(1) | T/h | 0.21 | |
| Super low temp heating capacity(2) | kW | 5.8 | |
| Input power(2) | kW | 2.45 | |
| Hot water output(2) | T/h | 0.12 | |
| Max running current | A | 7.5/17.1 | |
| Power source | V/Ph/Hz | 220V/50Hz | |
| Nosie level | dB(A) | ≤60 | |
| Unit size | Length(A) | mm | 710/770/1030 |
| Width(B) | mm | 710/420/480 | |
| Height(C) | mm | 840/1250/820 | |
| Unit quality | kg | 120 | |
| Working temp range | ℃ | ‘-25℃~43℃ | |
| Rated/Max outlet water temp | ℃ | 55℃/60℃ | |
| Throttle | Electronic expansion valve | ||
| Refrigerant | R410A/R407C/R32 optional | ||
| Refrigerant charge qty | kg | 2.6 | |
| Compressor | Hermetically sealed scroll compresor ( Copeland ) | ||
| Compressor qty | pcs | 1 | |
| Evaporator | High efficiency blue finned aluminium tube heat exchanger | ||
| Controller | LCD controller easy operation(built-in high pressure, low pressure, over heating, over current, water flow, phase protections and so on) | ||
| Adding-on | Electric bottom heater installed | ||
| Hot water side | Type | High efficiency tank type/ high efficiency tube in tube heat exchanger/ plate heat exchanger optional | |
| Water flow | m 3 /h | 1.90 | |
| Connection pipe size | DN | 20 | |
| Advised heating area | m 2 | 50~80 | |
| Test conditions: | |||
| (1). Low temp heating: Air source side DB/WB is 7℃/6℃, outlet water temp 45℃. | |||
| (2). Super low temp heating: Air source side DB/WB is -12℃/-14℃, outlet water temp 41℃) | |||
