Quick Details
-
Model Number:
-
HDPE Pipe
-
Specification:
-
hdpe pipe 20-1600mm
-
Length:
-
hdpe pipe 5.8meters or 11.8meters
-
Thickness:
-
hdpe pipe 2mm-94.1mm
-
Standard:
-
ISO4427,AS/NZS4130
-
product name:
-
2 inch polyethylene pipe 3 4 inch hdpe pipe drip irrigation pipes
-
Working pressure1:
-
SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9,SDR7.4
-
Working pressure2:
-
0.4Mpa,0.6MPa,0.8MPa,1.0MPa,1.25MPa,1.6Mpa,2.0MPa, 2.5MPa
-
Application:
-
hdpe pipe for water supply
-
Certification:
-
ISO14001,OHSAS18001,ISO9001
-
working pressure 3:
-
PN4,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25
-
Connection:
-
Butt Fusion,socket fusion
-
specification:
-
hdpe pipe 20mm-1600mm
-
Working Temperature:
-
- 40℃ to 40℃
-
type:
-
polyethylene pipe hdpe pipe rolls irrigation pipe
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
dingrunda / OEM
-
Model Number:
-
HDPE Pipe
-
Specification:
-
hdpe pipe 20-1600mm
-
Length:
-
hdpe pipe 5.8meters or 11.8meters
-
Thickness:
-
hdpe pipe 2mm-94.1mm
-
Standard:
-
ISO4427,AS/NZS4130
-
product name:
-
2 inch polyethylene pipe 3 4 inch hdpe pipe drip irrigation pipes
-
Working pressure1:
-
SDR33, SDR26,SDR21,SDR17,SDR13.6,SDR11,SDR9,SDR7.4
-
Working pressure2:
-
0.4Mpa,0.6MPa,0.8MPa,1.0MPa,1.25MPa,1.6Mpa,2.0MPa, 2.5MPa
-
Application:
-
hdpe pipe for water supply
-
Certification:
-
ISO14001,OHSAS18001,ISO9001
-
working pressure 3:
-
PN4,PN6,PN8,PN10,PN12.5,PN16,PN20,PN25
-
Connection:
-
Butt Fusion,socket fusion
-
specification:
-
hdpe pipe 20mm-1600mm
-
Working Temperature:
-
- 40℃ to 40℃
-
type:
-
polyethylene pipe hdpe pipe rolls irrigation pipe
Product Description

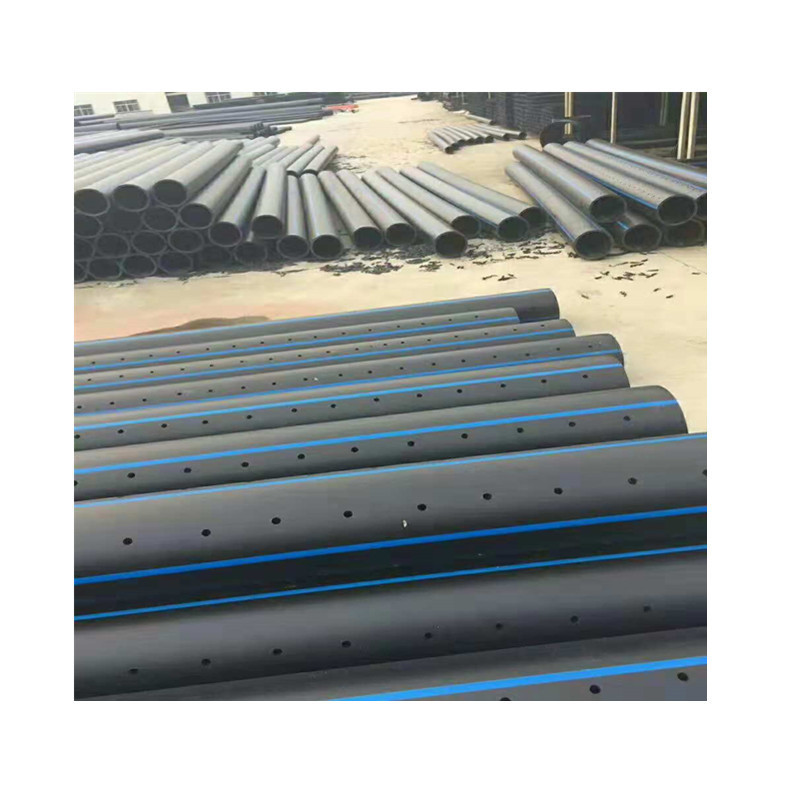

HDPE Pipe
PE pipe inner wall is smooth with features of low friction resistance and energy saving and does not change with the use of time.Its pressure loss is about 30% smaller than steel pipe, therefore,smaller pe pipe is a better way than steel pipe.PE pipe has good hygienic performance with no additives, so it is impossible to pollute the drinking water.Polyethylene material level is 0 (the lowest level) in ISO standard and it is moldy material. Compared with other commonly used plastic materials,mildew resistance of polyethylene is much higher resulting a long term use without scaling.
Specification:
Unit:mm
|
PE100
|
0.4MPa
|
0.5MPa
|
0.6MPa
|
0.8MPa
|
1.0MPa
|
1.25MPa
|
1.6MPa
|
2.0MPa
|
2.5MPa
|
||||||||
|
Outside Diameter
|
PN4
|
PN5
|
PN6
|
PN8
|
PN10
|
PN12.5
|
PN16
|
PN20
|
PN25
|
||||||||
|
|
SDR41
|
SDR33
|
SDR26
|
SDR21
|
SDR17
|
SDR13.6
|
SDR11
|
SDR9
|
SDR7.4
|
||||||||
|
|
Wall Thickness (en)
|
|
|
|
|
|
|
|
|
||||||||
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
2.0
|
2.3
|
3.0
|
||||||||
|
25
|
-
|
-
|
-
|
-
|
-
|
2.0
|
2.3
|
3.0
|
3.5
|
||||||||
|
32
|
-
|
-
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.6
|
4.4
|
||||||||
|
40
|
-
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.7
|
4.5
|
5.5
|
||||||||
|
50
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.7
|
4.6
|
5.6
|
6.9
|
||||||||
|
63
|
-
|
-
|
2.5
|
3.0
|
3.8
|
4.7
|
5.8
|
7.1
|
8.6
|
||||||||
|
75
|
-
|
-
|
2.9
|
3.6
|
4.5
|
5.6
|
6.8
|
8.4
|
10.3
|
||||||||
|
90
|
-
|
-
|
3.5
|
4.3
|
5.4
|
6.7
|
8.2
|
10.1
|
12.3
|
||||||||
|
110
|
-
|
-
|
4.2
|
5.3
|
6.6
|
8.1
|
10.0
|
12.3
|
15.1
|
||||||||
|
125
|
-
|
-
|
4.8
|
6.0
|
7.4
|
9.2
|
11.4
|
14.0
|
17.1
|
||||||||
|
140
|
-
|
-
|
5.4
|
6.7
|
8.3
|
10.3
|
12.7
|
15.7
|
19.2
|
||||||||
|
160
|
-
|
-
|
6.2
|
7.7
|
9.5
|
11.8
|
14.6
|
17.9
|
21.9
|
||||||||
|
180
|
-
|
-
|
6.9
|
8.6
|
10.7
|
13.3
|
16.4
|
20.1
|
24.6
|
||||||||
|
200
|
-
|
-
|
7.7
|
9.6
|
11.9
|
14.7
|
18.2
|
22.4
|
27.4
|
||||||||
|
225
|
-
|
-
|
8.6
|
10.8
|
13.4
|
16.6
|
20.5
|
25.2
|
30.8
|
||||||||
|
250
|
-
|
-
|
9.6
|
11.9
|
14.8
|
18.4
|
22.7
|
27.9
|
34.2
|
||||||||
|
280
|
-
|
-
|
10.7
|
13.4
|
16.6
|
20.6
|
25.4
|
31.3
|
38.3
|
||||||||
|
315
|
7.7
|
9.7
|
12.1
|
15.0
|
18.7
|
23.2
|
28.6
|
35.2
|
43.1
|
||||||||
|
355
|
8.7
|
10.9
|
13.6
|
16.9
|
21.1
|
26.1
|
32.2
|
39.7
|
48.5
|
||||||||
|
400
|
9.8
|
12.3
|
15.3
|
19.1
|
23.7
|
29.4
|
36.3
|
44.7
|
54.7
|
||||||||
|
450
|
11.0
|
13.8
|
17.2
|
21.5
|
26.7
|
33.1
|
40.9
|
50.3
|
61.5
|
||||||||
|
500
|
12.3
|
15.3
|
19.1
|
23.9
|
29.7
|
36.8
|
45.4
|
55.8
|
-
|
||||||||
|
560
|
13.7
|
17.2
|
21.4
|
26.7
|
33.2
|
41.2
|
50.8
|
62.5
|
-
|
||||||||
|
630
|
15.4
|
19.3
|
24.1
|
30.0
|
37.4
|
46.3
|
57.2
|
70.3
|
-
|
||||||||
|
710
|
17.4
|
21.8
|
27.2
|
33.9
|
42.1
|
52.2
|
64.5
|
79.3
|
-
|
||||||||
|
800
|
19.6
|
24.5
|
30.6
|
38.1
|
47.4
|
58.8
|
72.6
|
89.3
|
-
|
||||||||
|
900
|
22.0
|
27.6
|
34.4
|
42.9
|
53.3
|
66.2
|
81.7
|
-
|
-
|
||||||||
|
1000
|
24.5
|
30.6
|
38.2
|
47.7
|
59.3
|
72.5
|
90.2
|
-
|
-
|
||||||||
|
1200
|
29.4
|
36.7
|
45.9
|
57.2
|
67.9
|
88.2
|
-
|
-
|
-
|
||||||||
|
1400
|
34.3
|
42.9
|
53.5
|
66.7
|
82.4
|
102.9
|
-
|
-
|
-
|
||||||||
|
1600
|
39.2
|
49.0
|
61.2
|
76.2
|
94.1
|
117.6
|
-
|
-
|
-
|
||||||||
Features:
1. Nontoxic
2. Corrosion resistance
3. No Leakage
4. Higher flow capacity than steel pipes
5. Convenient for construction and installation
6. Lower installation costs than cement and steel pipes
7. Longevity of working life more than 50 years
8. HDPE pipe can be recycled and environment-friendly
Applications:
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.
Packing:
1. Diameter smaller than 110mm hdpe pipes,quantity less than 1000 meters,delivery time is about three days.
2. Diameter smaller than 315mm hdpe pipes,quantity less than 1000 meters,delivery time is around five days.
3. Diameter 355mm to 630mm hdpe pipes, quantity less than 1000 meters, delivery time is around one week to 15 days.
Physical properties index:
|
No.
|
Item
|
|
Requirements
|
|||
|
1
|
Percentage of breaking-elongation,%
|
|
≥350
|
|||
|
2
|
Longitudinal reversion(110℃),%
|
|
≤3
|
|||
|
3
|
Oxidation induction time (200℃)min
|
|
≥20
|
|||
|
4
|
Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2)
|
80℃ static hydraulic strength (165h)
|
No break, no leakage.
|
|||
|
|
|
Percentage of breaking-elongation,%
|
≥350
|
|||
|
|
|
Oxidation induction time (200℃)min
|
≥10
|
|||
|
1. Only suitable for pipe in blue color.
|
|
|
|
|||
|
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber,
food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field. |
|
|
|
|||
Technical data sheet:
|
No
|
Items
|
HDPE Pipe
|
|
1
|
Molecular
|
≥300 000
|
|
2
|
Density
|
0.960 g/cm3
|
|
3
|
Tensile breaking strength
|
≥28 Mpa
|
|
4
|
Longitudinal contraction rate of return
|
≤3%
|
|
5
|
Breaking elongation
|
≥500%
|
|
6
|
Resistant to corrosion
|
good
|
|
7
|
Tensile strength
|
≥28Mpa
|
|
8
|
Static hydraulic strength
|
1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage
|
|
|
|
2)80℃,cycle stress5.5Mpa,165h,no break,no leakage
|
|
|
|
3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage
|
|
9
|
MFR(190℃,5kg,)g/10min
|
≤25%
|
|
10
|
Oxidation induction time (200℃)min
|
≥20
|
Connection Methods
Socket Fusion Joint
1.Select the equipment
2.Square and prepare the pipe ends 3.Heat the parts
4.Join the parts
5.Allow to cool.
Butt Fusion Joint
1.Securely fasten the components to be joined
2.Face the pipe ends
3.Align the pipe profile
4.Melt the pipe interfaces
5.Join the two profiles together
6.Hold under pressure
Electro Fusion Joint
1.Prepare the pipes
2.Clamp the fittings and pipe(s)
3.Apply the electric current
4.Cold and remove the clamps
