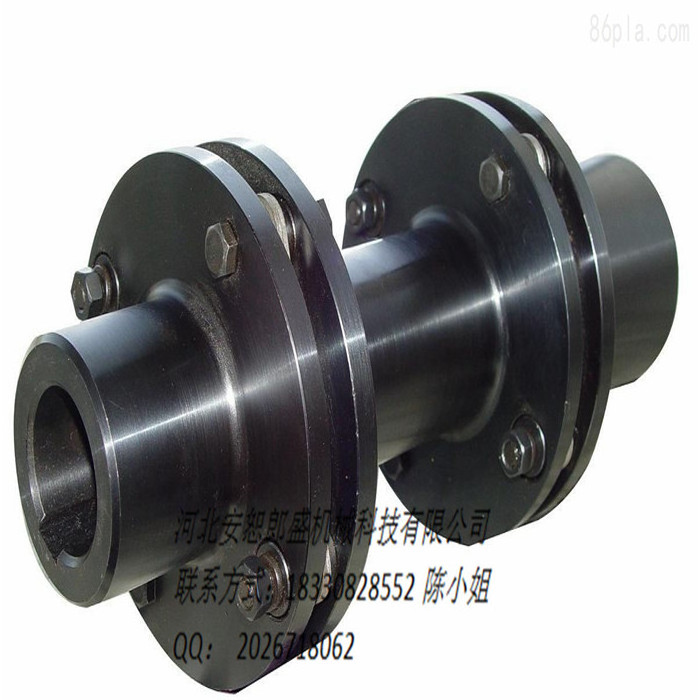

Disc coupling diaphragm coupling flexible diaphragm coupling

Disc coupling diaphragm coupling flexible diaphragm coupling

Details of  Disc coupling diaphragm coupling flexible diaphragm coupling

1. Material:60SiaMnA(SAE9260) ,50CrVA(SAE6150)

2.Surface treatment: bluing, phosphatization, galvanization, electrophresis and mechanical and etc.

3. Good quality and long service life.

Application of  Disc coupling diaphragm coupling flexible diaphragm coupling

CNC machine, CNC lathes, CNC machine center,

CNC milling machine ,engraving machine, metallurgical machinery, mining machinery,

petroleum machinery, Chemical Machinery, Hoisting Machinery,

Transport Machinery, water pump, Fan, etc

Advantage of  Disc coupling diaphragm coupling flexible diaphragm coupling

1.Elastomer connecting in the middle

2.Can absorb vibration, compensates for radial, axial and angular deviation

3.Oil resistance and electrical insulation

4.Have the same characteristic of clockwise and anticlockwise rotation

Classifications of  Disc coupling diaphragm coupling flexible diaphragm coupling
A: Welded shaft type with length compensation / expansion joint

B: Short type with length compensation / expansion joint

C: Short type without length compensation / expansion joint

D: Long type without length compensation / expansion joint

E: Double flange with length compensation / expansion joint

F: Long type with big length compensation / big expansion joint

G: Super Short type with length compensation / expansion joint

PICTURES

Packing and shipping

Package of universal coupling is

Plywood case / Carton / Customized

workshaop
