Quick Details
-
Grinding head motor:
-
5.5KW x5 + 4KW x 5
-
Pipe diameter:
-
19mm-63mm
-
Capacity:
-
3-30m/min
-
Machine size:
-
7.02m x 1.27m x 1.2m
-
Weight:
-
4.5T
-
Keyword:
-
steel pipe grinding machine
-
Color:
-
Green
-
Useful life:
-
10 years
-
After Warranty Service:
-
Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Field maintenance and repair service, Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Polish tube/pipe surface
-
Mojor Motor:
-
3KW
-
Grinding head motor:
-
5.5KW x5 + 4KW x 5
-
Pipe diameter:
-
19mm-63mm
-
Capacity:
-
3-30m/min
-
Machine size:
-
7.02m x 1.27m x 1.2m
-
Weight:
-
4.5T
-
Keyword:
-
steel pipe grinding machine
-
Color:
-
Green
-
Useful life:
-
10 years
-
After Warranty Service:
-
Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support, Field maintenance and repair service, Video technical support

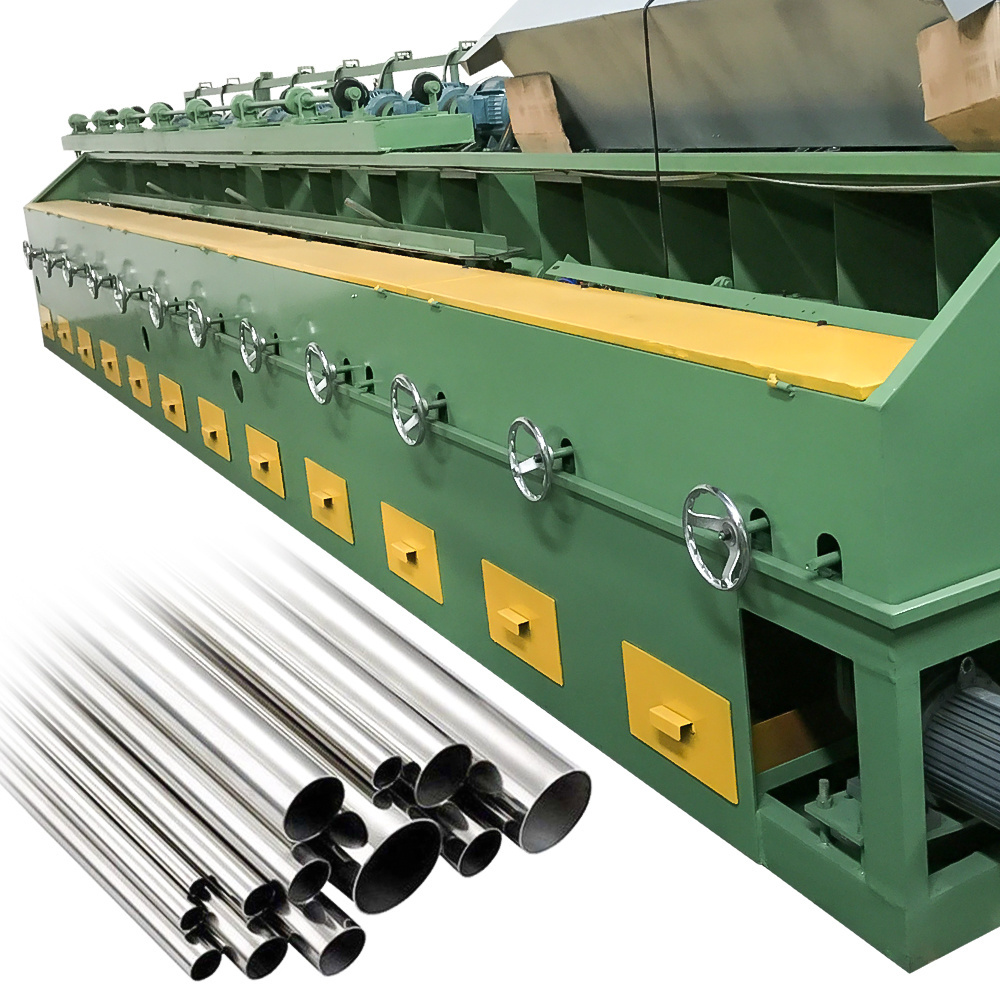

Pipe Buffing/Grinding Polishing Machine for Stainless Steel Round Tube
YXH —— The first foreign office established in the industry
Product Description
Parameter
| Technical data | YP-8 | YP-10 | DYP-10 | YP-8(New) | DYP-8(New) |
| Model(Unit) | 8 | 8 | 10 | 8 | 8 |
| Working range | 12.7—Φ63 | 19—Φ63 | 50—Φ113 | 12.7—Φ63 | 50—Φ113 |
| Polishing speed | 2~30M/NIM | 2~30M/NIM | 2~30M/NIM | 2~40M/NIM | 2~40M/NIM |
| Rated power(KW) | 5.5KW=4,4KW=4 | 5.5KW=5,4KW=5 | All 5.5KW | All 7.5KW | All 11KW |
| Motor power(KW) | 3kw VFD | 3kw VFD | 4kw VFD | 4kw VFD | 4kw CVT |
| Total power(KW) | 41 | 50.5 | 59 | 64 | 92 |
| Voltage(V) | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
|
Machine size
(L*W*H MM) |
5600*1270*1200 | 7020*1270*1200 | 7040*1450*1350 | 7940*1245*1350 | 7940*1450*1350 |
Packaging & Shipping
- We use steel wire and wooden frame to fix the Pipe/Tube Polishing Machine;
- In addition, used shockproof film to protect the main motors.
- We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
