Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOM
-
Model Number:
-
MR01A-01224
-
Height:
-
1.85mm
-
insulator:
-
LCP, UL94V-0
-
Contact:
-
phosphor bronze
-
Shell:
-
stainless picking
-
Certificate:
-
ISO-TS16949&RoHs certificate
-
Spring:
-
SWPB
-
operating voltage:
-
100V AC(rms)/DC
-
Curent rating:
-
0.5A
-
Product name:
-
SD Card Push TF Micro Board To Board Connector CD Socket Connector
Quick Details
-
Type:
-
Micro sd card connector
-
Application:
-
mobile/pad/car/camera
-
Gender:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ATOM
-
Model Number:
-
MR01A-01224
-
Height:
-
1.85mm
-
insulator:
-
LCP, UL94V-0
-
Contact:
-
phosphor bronze
-
Shell:
-
stainless picking
-
Certificate:
-
ISO-TS16949&RoHs certificate
-
Spring:
-
SWPB
-
operating voltage:
-
100V AC(rms)/DC
-
Curent rating:
-
0.5A
-
Product name:
-
SD Card Push TF Micro Board To Board Connector CD Socket Connector

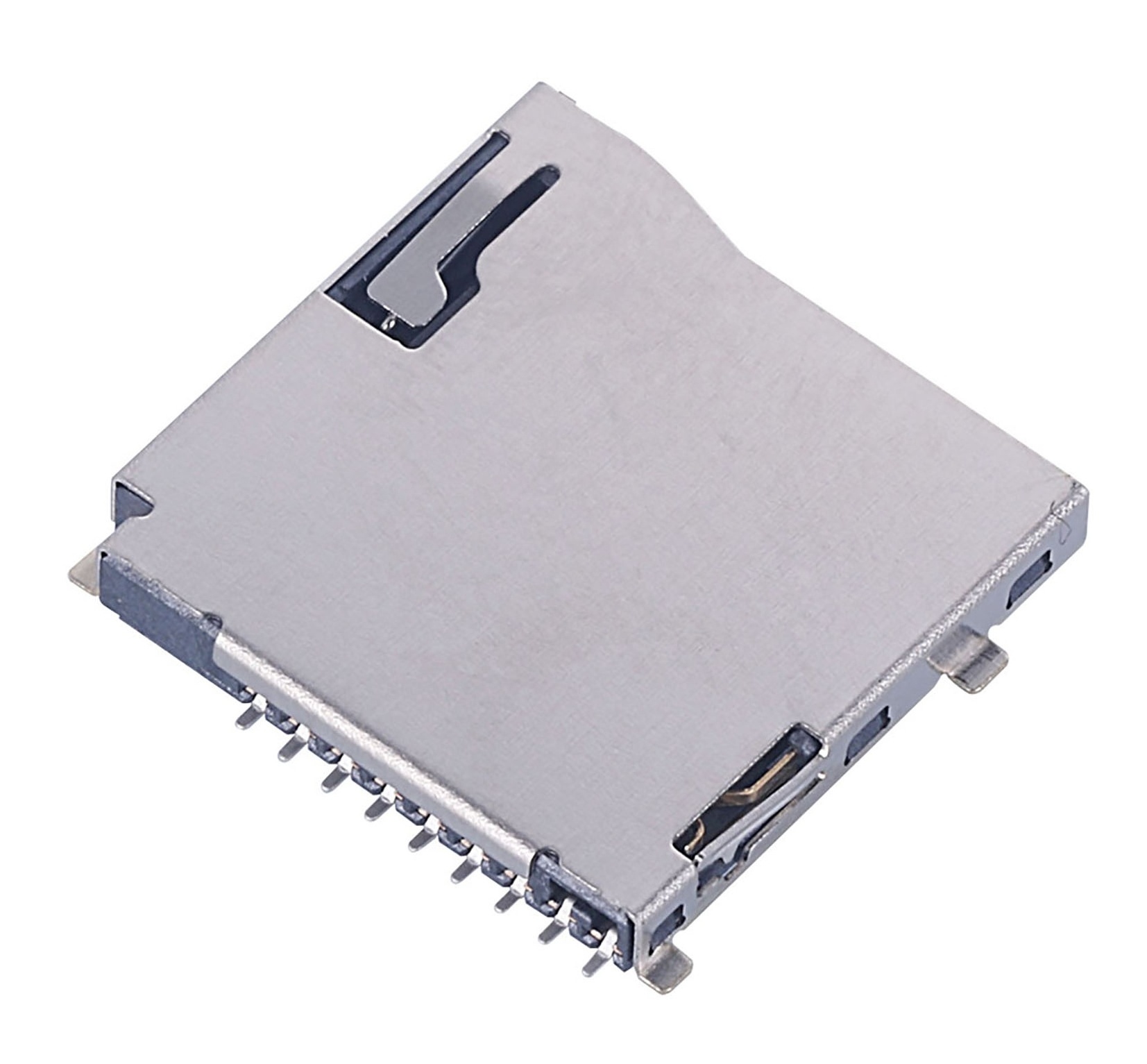

SD Card Push TF Micro Board To Board Connector CD Socket Connector
| name | SD Card Push TF Micro Board To Board Connector CD Socket Connector |
| Material | LCP UL94-V0 |
| Contact | phosphor bronze |
| solder tail |
Tin 160u" ,
selectived gold on contact area plating
|
| Shell | stainless, pickling |
| Spring | SWPB |
| operating voltage | 10V AC(RMS)/DC |
| Current rating | 0.5A |
| operating temprature | -25 ℃ - +80 ℃ |
| insulation resistance | 1000M ohms min. at 250VDC |
| Dielectric withstandig voltae | 500VAC/1minute |
| contact resistance | 1000m ohms max |
SD Card Push TF Micro Board To Board Connector CD Socket Connector
At present, enterprises has established a complete set, intelligent, standardization of modern assembly platform with different types of work collaboration and high efficient coordination to guarantee products are of high quality.
Successfully passed ISO9001/TS/ROHS/ERP and other system certifications and obtained many honors such as
National high-tech enterprise
.
Shenzhen High-tech enterprise.
In Reel & tape or tube Packing .
ATOM Corporation is a professional manufacturer of electronic connectors that integrates R&D, production and sales.
Products are mainly applied in over twenty fields: Digital electronic products, communication electronic products, automobile electronic products, banking terminal electronic products, medical electronic products, etc.
Welcome to communication!
