Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YING HANG YUAN
-
Model Number:
-
WF-YHY
-
Wire Gauge:
-
BWG16-27#
-
Product name:
-

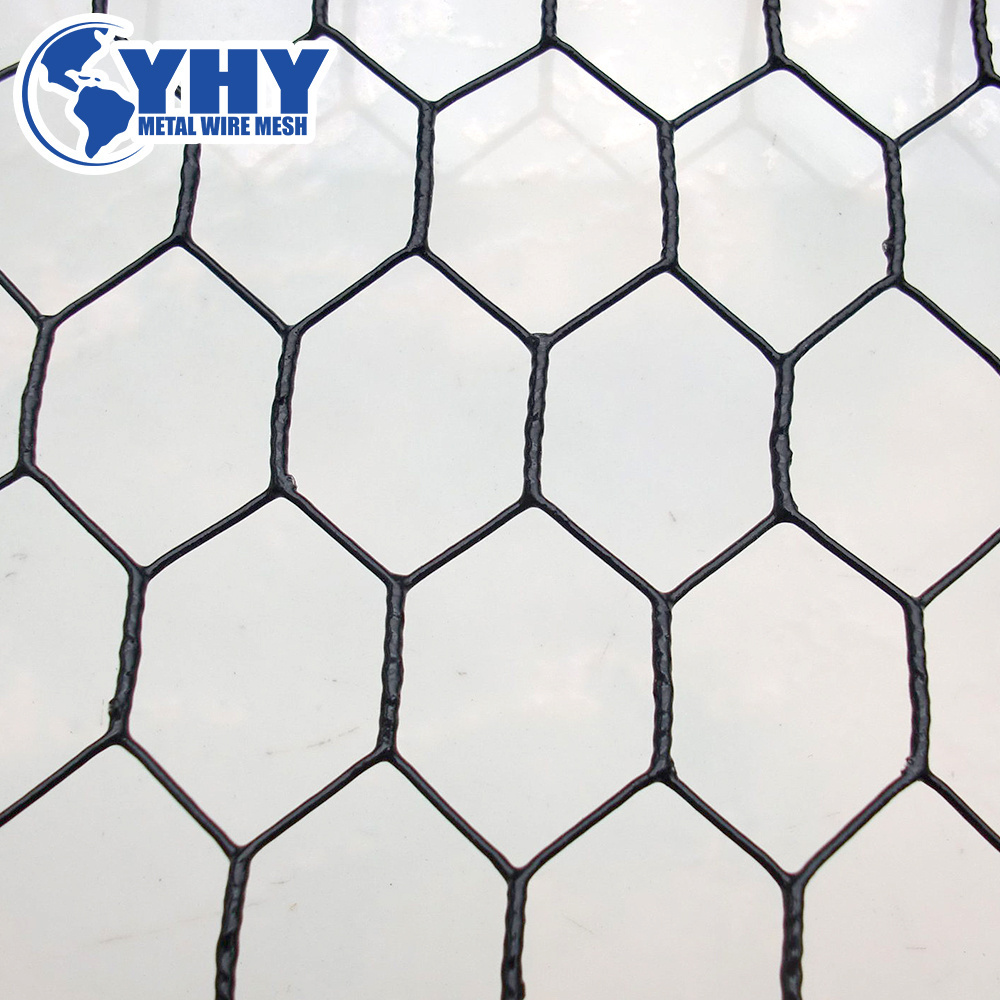

Hexagonal Wire Mesh
-
Mesh size:
-
3/8'' to 4''
-
Diameter:
-
BWG16# to 27#
-
Weaving:
-
normal twist, reverse twist.
-
Width:
-
1' to 2m, custom inquiry available at request.
-
Length:
-
30m, 30.5m, 50m, custom inquiry available at request.
-
Packing:
-
in waterproof paper. Custom packing available at request.
-
Certificate:
-
ISO9001:2000
-
Payment:
-
T/T, L/C
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Wire Cloth
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
YING HANG YUAN
-
Model Number:
-
WF-YHY
-
Wire Gauge:
-
BWG16-27#
-
Product name:
-
Hexagonal Wire Mesh
-
Mesh size:
-
3/8'' to 4''
-
Diameter:
-
BWG16# to 27#
-
Weaving:
-
normal twist, reverse twist.
-
Width:
-
1' to 2m, custom inquiry available at request.
-
Length:
-
30m, 30.5m, 50m, custom inquiry available at request.
-
Packing:
-
in waterproof paper. Custom packing available at request.
-
Certificate:
-
ISO9001:2000
-
Payment:
-
T/T, L/C
Hot dipped galvanized wire
Electro galvanized wire
PVC coated wire
Stainless steel wire
2. Features
well erosion-resisting
rustproof properties
3. Weaving Types
Straight twisted
Reversed twisted
|
Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) |
||
|
Mesh |
Wire Gauge (BWG) |
|
|
Inch |
mm |
|
|
3/8" |
10mm |
27,26,25,24,23,22,21 |
|
1/2" |
13mm |
25,24,23,22,21,20, |
|
5/8" |
16mm |
27,26,25,24,23,22 |
|
3/4" |
20mm |
25,24,23,22,21,20,19 |
|
1" |
25mm |
25,24,23,22,21,20,19,18 |
|
1-1/4" |
32mm |
22,21,20,19,18 |
|
1-1/2" |
40mm |
22,21,20,19,18,17 |
|
2" |
50mm |
22,21,20,19,18,17,16,15,14 |
|
3" |
75mm |
21,20,19,18,17,16,15,14 |
|
4" |
100mm |
17,16,15,14 |
|
Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) |
||||
|
Mesh |
Wire Gauge(BWG) |
Reinforcement |
||
|
Inch |
mm |
(BWG) |
Width(ft) |
Strand |
|
1" |
25mm |
22,21,20,18 |
2' |
1 |
|
1-1/4" |
32mm |
22,21,20,18 |
3' |
2 |
|
1-1/2" |
40mm |
20,19,18 |
4' |
3 |
|
2" |
50mm |
20,19,18 |
5' |
4 |
|
3" |
75mm |
20,19,18 |
6' |
5 |
|
Mesh |
Wire Dia(mm) |
|
|
Inch |
mm |
|
|
1/2" |
13mm |
0.9mm,0.1mm |
|
1" |
25mm |
1.0mm,1.2mm,1.4mm |
|
1-1/2" |
40mm |
1.0mm,1.2mm,1.4mm,1.6mm |
|
2" |
50mm |
1.0mm,1.2mm,1.4mm,1.6mm |
The outside package it is water-proof paper, then bulk loading into the container or package on wooden pallets.
Yes, we are the ISO and CE certificated Manufacturer and our factory founded in this industry since 1989.
2. Will your price competitive?
Yes, we have stable and large raw material supplier, we work with them for nearly 20 years. Our machine and technical it is most advanced, we will send our technical to aboard to learning new techniques every year.
3. Can we have a sample?
Yes, if the samples it is not much big, we can offer a free sample, the courier it is paid by customers.
4. Can we visit your factory?
Yes, you are welcome to visit us. we can pick you up from the airport.
5. What are the payment terms?
We can accept TT, LC, West Union, Money Gram, Cash.
