Quick Details
-
Product name:
-
Vacuum Pump
-
Model:
-
GM-0.5II
-
Pump Head:
-
2
-
Speed of Evacuation:
-
30 L/Min
-
Vacuum:
-
50 mbar
-
Working Temp.:
-
7~40℃
-
Motor Power:
-
160W
-
Power Supply:
-
AC220/110V±10%, 50/60Hz
-
Package Size(W*D*H)mm:
-
314*205*316
-
Gross Weight:
-
11kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Weight (KG):
-
11
-
Product name:
-
Vacuum Pump
-
Model:
-
GM-0.5II
-
Pump Head:
-
2
-
Speed of Evacuation:
-
30 L/Min
-
Vacuum:
-
50 mbar
-
Working Temp.:
-
7~40℃
-
Motor Power:
-
160W
-
Power Supply:
-
AC220/110V±10%, 50/60Hz
-
Package Size(W*D*H)mm:
-
314*205*316
-
Gross Weight:
-
11kg
Product Description

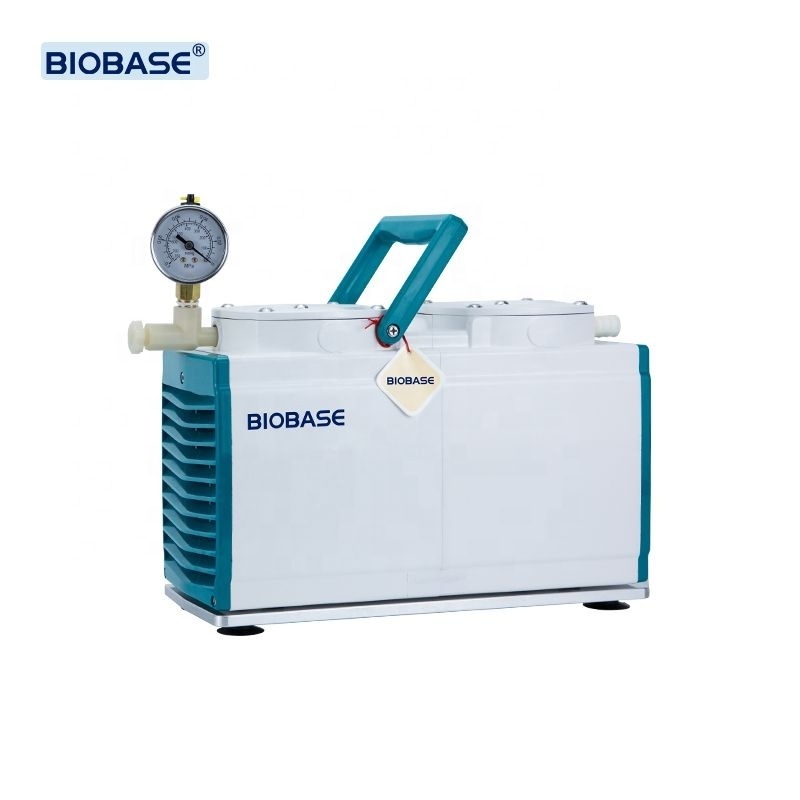

Laboratory Vacuum Pump
1. Oil free,clean exhausted air by built- in filter .
2. Automatic cooling exhaust system ensures 24 h operation continuously.
3. The pressure adjustable design can satisfy a certain range of vacuum and gas velocity. (This function does not apply to model GM-0.20)
4. TEFLON surface treatment, anti-gas corrosion.
5. orange look for anticorrosive vacuum pump(eg: GM-0.33IIP, GM-0.5P, GM-0.5IIP, GM-1.0P)
Specification
|
Model
|
GM-0.20
|
GM-0.5II
|
GM-0.5
|
GM-0.33II
|
GM-1.0
|
||||
|
Pump Head
|
1
|
2
|
1
|
1
|
2
|
||||
|
Speed of Evacuation
|
12 L/Min
|
30 L/Min
|
|
20 L/Min
|
60 L/Min
|
||||
|
Ultimate pressure
|
0.075 Mpa
|
0.095 Mpa
|
0.08 Mpa
|
|
|
||||
|
Vacuum
|
250 mbar
|
50 mbar
|
200 mbar
|
|
|
||||
|
Pressure
|
30 Psi Positive or
negative pressure |
Negative pressure
|
30Positive,
Positive or negative pressure |
Negative pressure
|
30Positive,
Positive or negative pressure |
||||
|
Inlet
|
φ6 mm
|
|
|
|
|
||||
|
Outlet
|
φ6 mm
|
Silencer
|
φ6 mm
|
Silencer
|
φ6 mm
|
||||
|
Working Temp.
|
7~40℃
|
|
|
|
|
||||
|
Body Temp.
|
<55℃
|
|
|
|
|
||||
|
Noise Level
|
<60 dB
|
|
|
<50 dB
|
|
||||
|
Motor Power
|
75W
|
160W
|
|
|
|
||||
|
Power consumption
|
AC110/220V±10%, 50/60Hz
|
|
|
|
|
||||
|
Diaphragm
|
NBR
|
|
|
|
|
||||
|
Valves
|
/
|
NBR
|
|
|
|
||||
|
Net Weight (kg)
|
4
|
10
|
6.6
|
6.2
|
10
|
||||
|
Gross Weight(kg)
|
4.5
|
11
|
7.6
|
7.5
|
11
|
||||
|
External Size
(L*W*H)mm |
195*98*156
|
300*120*235
|
210*160*235
|
215*120*235
|
300*160*235
|
||||
|
Package Size (L*W*H)mm
|
330*210*240
|
314*205*316
|
300*210*310
|
315*200*310
|
380*340*270
|
||||
