Quick Details
-
Function:
-
CNC cutting, Drawing, Punching
-
Effective working area:
-
1000mm*700mm
-
Cutting speed:
-
0-1200mm/s
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knifes:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Human Machine Interface (HMI):
-
Touch screen LCD
-
Machine resolution:
-
0.01mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Function:
-
CNC cutting, Drawing, Punching
-
Effective working area:
-
1000mm*700mm
-
Cutting speed:
-
0-1200mm/s
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knifes:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen types:
-
Common signing pen, Oil pen, ball-point pen, Silver pen
-
Human Machine Interface (HMI):
-
Touch screen LCD
-
Machine resolution:
-
0.01mm

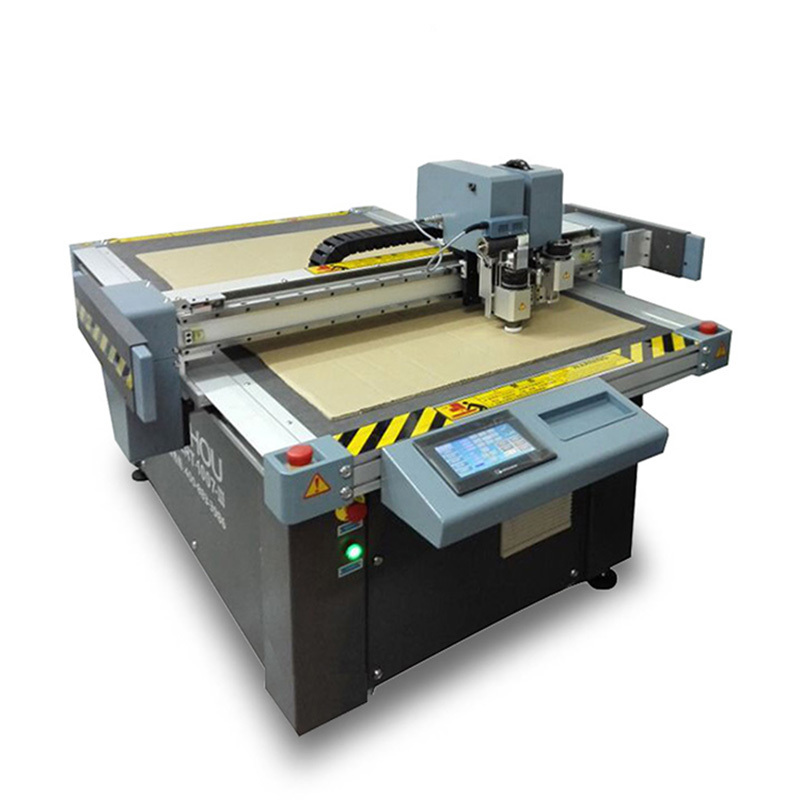

Factory Supply Ruizhou CNC cutting machine for composite materials gasket sponge
Brief introduction for CNC composite materials cutting machine
RUIZHOU RZCRT5-1007E CNC cutting machine are designed for composite materials cutting , such as glass fiber, carbon fiber, rubber or some other composite material. It is widely applied in package, advertisement, cloth, bag, footwear, construction industries. It can also cut cardboard, corrugated board, grey board, honeycomb board, KT board, plastic sheet, cloth fabric, car mats, PVC, PU, etc.
RZCRT5-1007E can be equipped with multi-functional combined cutting tools, CCD positioning system, advanced frequency converter and some other good quality components or devices. It is easy for users to handle. And more often, RZCRT5-1007E CNC cutting machines are suitable for samples making in offices, schools or research institute s because of its’ small size.
Parameters of Cardboard Cutting machine RZCRT5- 1007 E
|
Model of cutting machine |
RZCRT5-1007E |
|
Effective working area |
1000mm×700mm |
|
Cutting speed |
0-1200mm/s |
|
Cutting thickness |
0-25mm ( customized cutting machine can up to 50mm) |
|
Our Advantag es |
1.A whole piece aluminum platform
2.Welding stable machine structure
4.Safety device
|
|
Method of fixing material |
Divisional vacuum absorption |
|
Knife |
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
|
Pen type |
Common signing pen, Oil pen, ball-point pen, Silver pen |
|
Human Machine Interface (HMI) |
Touch screen LCD |
|
Machine resolution |
0.01mm |
|
Software resolution |
0.025mm |
|
Interface of transmission |
Network port |
| Command system | HP-GL and GP-GL compatible formats |
| Gearing | Linear guide and gear rack |
|
Motor |
Servo motor |
|
Machine Working Voltage |
220V |
|
Air pump power |
5.5KW |
|
Energy saving device |
Frequency converter |
| Safety device | Automatic laser device |
|
Software system |
Independent research and development CNC software |
|
Control system |
Cutting table and computer display |
Tools and its functions of RZCRT5-1007E
Cutting samples of RZCRT5-1007E
Composite materials cutting samples
Six advantages of RZCRT5-1007E
Packaging of Our cutting machines
RUIZHOU cutting machines are packaged with standard export wooden case which can guarantee your machine safety.
