Quick Details
-
Speed Ratio:
-
4.8:1
-
Output:
-
280kg/h
-
Maximum Screw Speed:
-
65r/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Overall Dimension:
-
1500x604x1053mm
-
Screw Diameter:
-
90mm
-
Speed Ratio:
-
4.8:1
-
Output:
-
280kg/h
-
Maximum Screw Speed:
-
65r/min

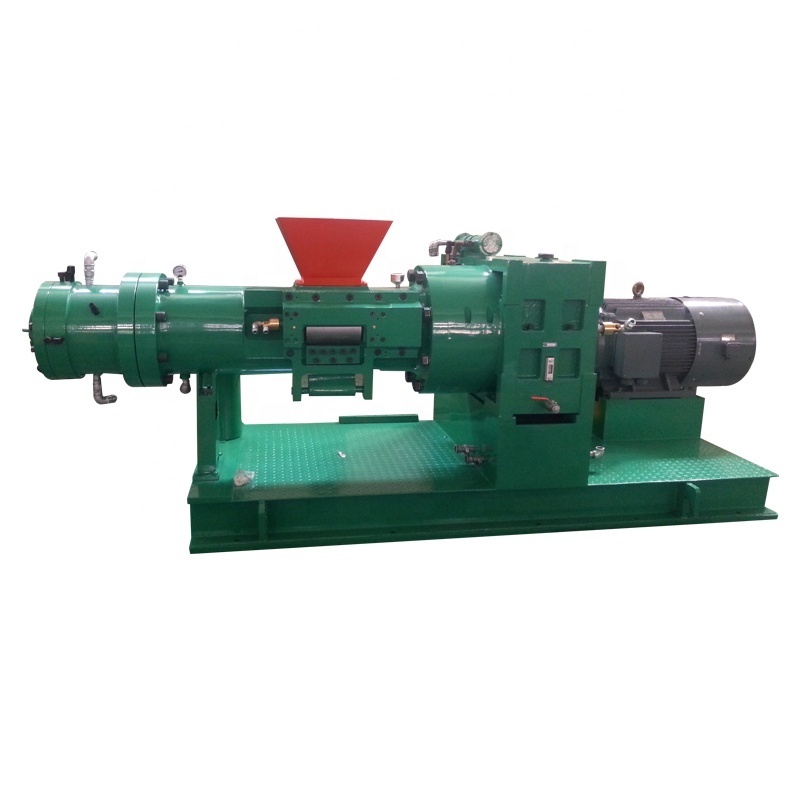

High efficency 90mm single screw hot feeding rubber extruder
Hot feeding rubber extruder machine can be used for the shaping extrusion of various kinds of rubber products, rubber products, rubber wrap up for the out layer of the wire and electric cable and to do the rubber filter extrusion as well.
Hot feeding rubber extruder machine mainly consists of the screw, die head, machine body, heating and cooling system, electrical system and reducing gear boxes. Below is the main product parameters:
|
Item |
Screw Diameter (mm) |
L/D Ratio |
M aximum Screw S peed ( r/min) |
Output (kg/h) |
Overall Dimension ( mm ) |
Weight (kg) |
|
XJ-60 |
60 |
4.5:1 |
75 |
7 2 |
1500x604x1053 |
880 |
|
XJ-65 |
65 |
4.5:1 |
75 |
85 |
1594x604x1053 |
1000 |
|
XJ-85 |
85 |
4.8:1 |
65 |
190 |
2065x760x1164 |
1500 |
|
XJ-90 |
90 |
4.8:1 |
6 5 |
280 |
2100x760x1164 |
2400 |
|
XJ- 115 |
115 |
4.8:1 |
60 |
420 |
2770x860x1344 |
3100 |
|
XJ-120 |
120 |
4.8:1 |
60 |
520 |
2800x860x1344 |
3600 |
|
XJ-150 |
150 |
4.6:1 |
55 |
1100 |
3411x900x1450 |
6100 |
|
XJ-200 |
200 |
4.35:1 |
45 |
2500 |
4549x1140x1750 |
7200 |
|
XJ-250 |
250 |
4.5:1 |
45 |
4200 |
4950x1150x1800 |
8200 |
