Quick Details
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
depends on the model
-
Weight:
-
5200 KG
-
Product name:
-
Gold CIP Plant
-
Keywords:
-
Cip Gold Plant Processing Equipment
-
Color:
-
Customer's Requirements
-
Capacity:
-
1-500tph
-
Quality:
-
High Reputation
-
Recovery rate:
-
98-99%
-
Installation:
-
Engineer Guidance
-
Certification:
-
ISO CE
-
Feature:
-
High Recovery Rate Easy
-
Price:
-
Negotiable
Quick Details
-
Production Capacity:
-
1-500TPH
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Eastman
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
depends on the model
-
Weight:
-
5200 KG
-
Product name:
-
Gold CIP Plant
-
Keywords:
-
Cip Gold Plant Processing Equipment
-
Color:
-
Customer's Requirements
-
Capacity:
-
1-500tph
-
Quality:
-
High Reputation
-
Recovery rate:
-
98-99%
-
Installation:
-
Engineer Guidance
-
Certification:
-
ISO CE
-
Feature:
-
High Recovery Rate Easy
-
Price:
-
Negotiable
Product Introduction
Gold CIP Leaching Process Explained
CIP ( Carbon In Pulp) process is suitable for the treatment of oxidized gold ore with low sulfur content and mud content. It is unsuitable for the gold ore with high-grade silver as well. Generally, the proportion of gold and silver should not exceed 1:5. The best conditions for Carbon In Pulp process in China: PH=10-12, sodium cyanide concentration is not less than 0.015%, the particle size of activated carbon is 1.0-3.35mm, the best choice of carbon is coconut shell activated carbon, and the slurry concentration is 40-45%.
Metal recovery or concentration by adsorption on activated carbon has been the dominant process for gold extraction after leaching by cyanide in aerated alkaline slurry. The continuous processes of gold recovery by adsorption on activated carbon in agitated tanks, namely the carbon-in-pulp (CIP) and the carbon-in-leach (CIL)processes, have been widely used since the 1970s.
In the CIL (Carbon in Leach) or CIP (Carbon in Pulp) plants while the precious metals are being dissolved by the cyanide solution in the large volume tanks the dissolved metals are adsorbed by the active carbon. These processes are generally preferred for therelatively high grade and lower reserve ore types with very fine graded precious metals.
Metal recovery or concentration by adsorption on activated carbon has been the dominant process for gold extraction after leaching by cyanide in aerated alkaline slurry. The continuous processes of gold recovery by adsorption on activated carbon in agitated tanks, namely the carbon-in-pulp (CIP) and the carbon-in-leach (CIL)processes, have been widely used since the 1970s.
In the CIL (Carbon in Leach) or CIP (Carbon in Pulp) plants while the precious metals are being dissolved by the cyanide solution in the large volume tanks the dissolved metals are adsorbed by the active carbon. These processes are generally preferred for therelatively high grade and lower reserve ore types with very fine graded precious metals.
300TPD(12TPH) Rock Gold CIP Processing Plant in Kenya ▼
We provided a successful 300TPD(12TPH) rock gold CIP processing plant in Kenya. We design the CIP gold plant process flowchart & plant layout drawing according to ore conditions, provide a complete set of plant machines and send Chinese engineers to the mine site for plant installation & commissioning guidance. Make this gold CIP project installed successfully and satisfied with the customer.
The Main Machines & Accessories include below:

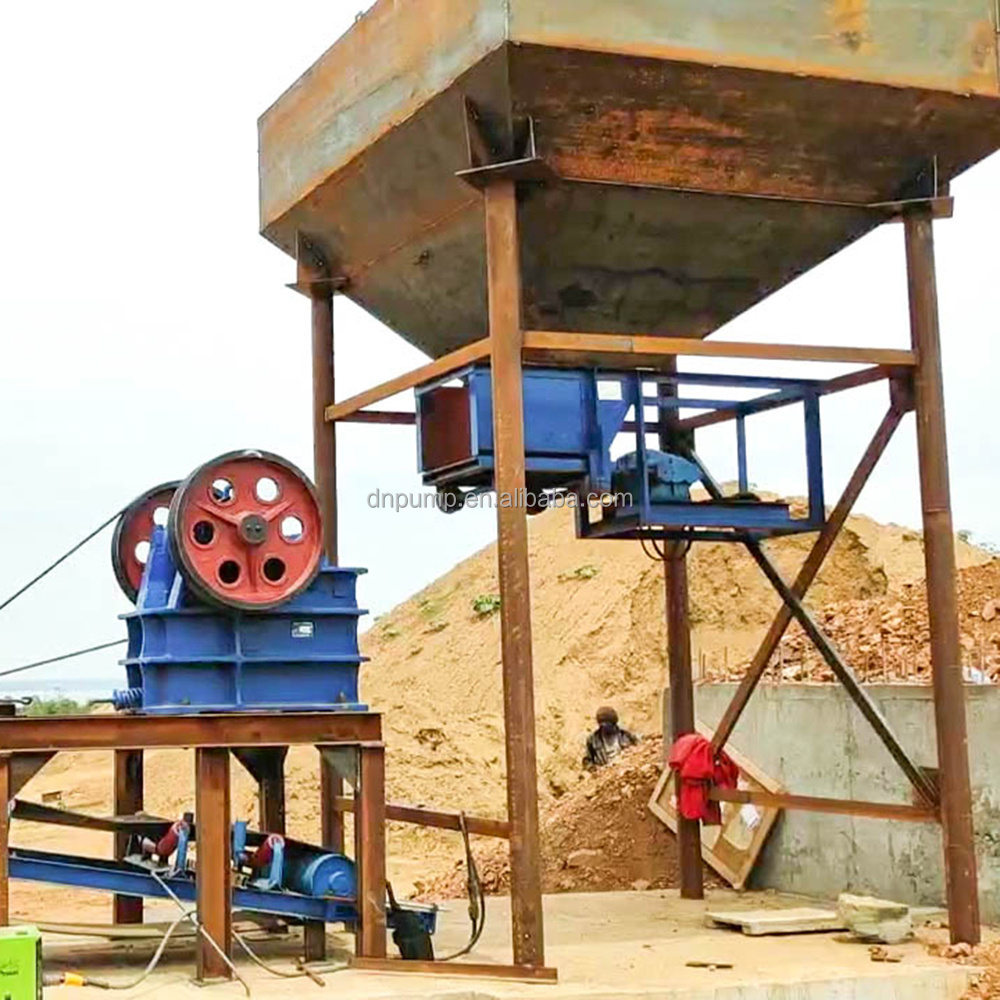

1. Feeding + Crushing system crush rock from 210mm to below 5mm :
Feeding Hopper+Chute Feeder+ Rough Jaw crusher+belt conveyor+Fine jaw crusher+vibration screen+ Roller Crusher
2. Grinding System
(grinding material to small powder 200mesh) :
Storage Bin+ Electromagnetic vibration feeder+ belt conveyor+Ball mill+HydroCyclone
3. Leaching Pretreatment :
3. Leaching Pretreatment :
include Thickener + Agitation tank ( for adjust density of slurry after thickener) +Liner vibrating screen
4. Leaching and Activated Carbon Adsorption processing :
include 2pcs double impeller Leaching agitation tank+ 7pcs double impeller Adsorption agitation tanks+ Roots blower（work for adsorption agitation tank)+ Liner vibrating screen for tailing dewatering+ Liner vibrating screen for screening carbon+ Cabon extractor +Cabon screen
5. Gold-loaded carbon desorption and electrolytic Stage:
Include : normal temperature& normal pressure Elution & Electrolysis system+Drying Oven for gold mud+ Gold smelting furnace
6. Carbon kiln for carbon regeneration
7. Tailing Water recycle system :
High pressure slurry pump+plate filter press+cone slurry tank for making suitable density of slurry before sending to filter
8. FIVE Reagent adding devices system:
each system include reagent agitation tank+reagent slurry pump+ reagent tank.
1) Flocculant make-up system for thickener
2) sodium cyanide reagent make-up system for 2pcs leaching agitation tank
3) Lime make-up system for 2pcs leaching agitation tank (for PH control)
4) sodium hydroxide&hydrochloric acid reagent make-up system for cone agitation tank
5) sodium hydroxide&&clean water&sodium cyanide reagent make-up system for Elution & Electrolysis system
9. Water pumps for water supply to complete plant .
1. Slurry Pumps for plant
1. Slurry Pumps for plant
2. Compelete set electric control pannels
3. Complete set Cables&wires
4. Diesel Generator for plant machines power
5. Complete set Water pipes &slurry pipes
Main Product
We have professional engineers team to draw flowchart based on customer's gold mine site details. We supplied full set gold plant:hopper, jaw crusher, vibrating screen, ball mill, spiral classifier, slurry pump, belt conveyor, Gold smelting furnace, etc.
Successful cases
Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
|
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
|
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
|
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
