Quick Details
-
Dimension(L*W*H):
-
3200 x 1500 x 1590mm
-
Weight:
-
900 KG
-
Marketing Type:
-
New Product 2024
-
Power source:
-
60-125hp tractor
-
Application:
-
firewood processing
-
Splitting force:
-
35T
-
Max splitting diameter:
-
400mm
-
Log length:
-
580mm
-
Adjustable wedge:
-
4, 6, 8 way splitting blade with hydraulic adjustable
-
Hydraulic chainsaw:
-
20"
-
Oil pump:
-
22 GPM
-
Capacity:
-
8-12 cbm/hour(2-3 cords)
Quick Details
-
Use:
-
firewood processing
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BF
-
Dimension(L*W*H):
-
3200 x 1500 x 1590mm
-
Weight:
-
900 KG
-
Marketing Type:
-
New Product 2024
-
Power source:
-
60-125hp tractor
-
Application:
-
firewood processing
-
Splitting force:
-
35T
-
Max splitting diameter:
-
400mm
-
Log length:
-
580mm
-
Adjustable wedge:
-
4, 6, 8 way splitting blade with hydraulic adjustable
-
Hydraulic chainsaw:
-
20"
-
Oil pump:
-
22 GPM
-
Capacity:
-
8-12 cbm/hour(2-3 cords)

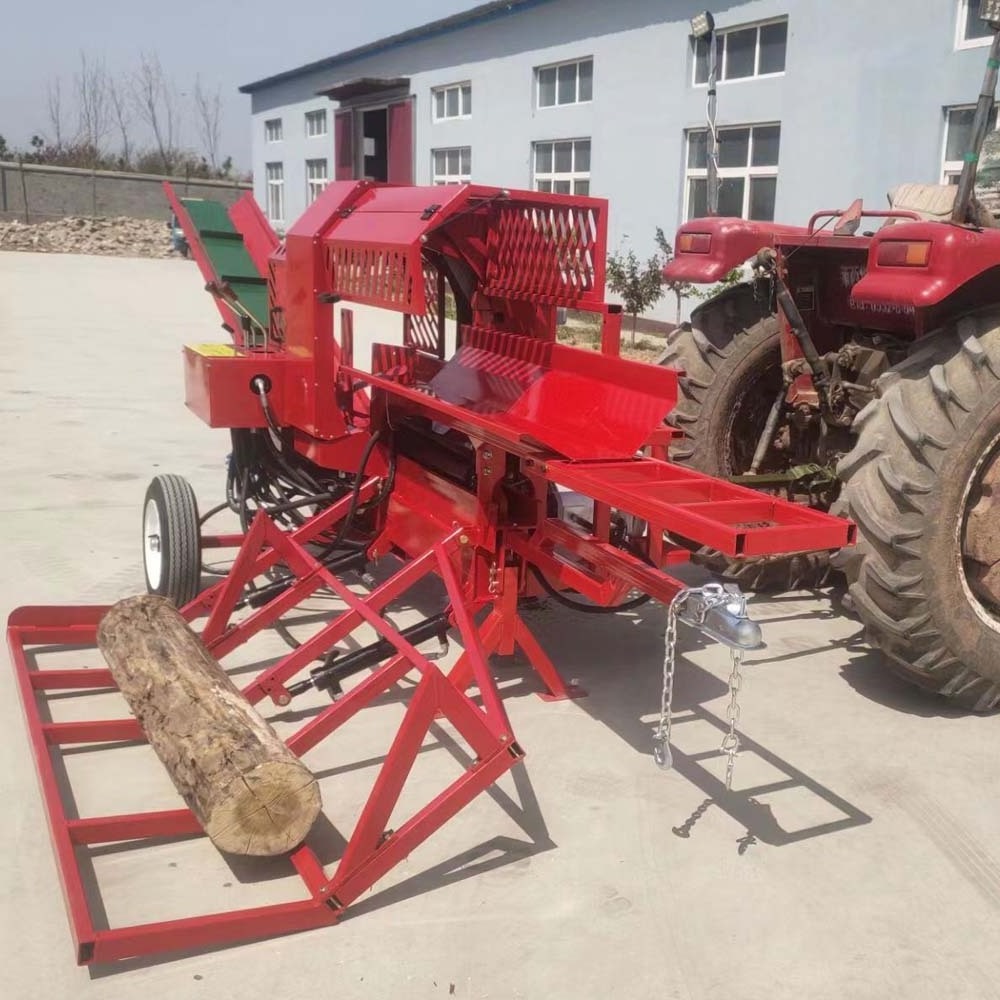

Model FWP35T-400(PTO), this firewood processor is a PTO version, powered by 60-125hp tractor
35 ton splitting force, equiped with a 20" hydraulic chainsaw, with max. 400mm splitting log diameter,580mm length, a ccessories come with 3m firewood discharge belt conveyor,
4 way splitter, towable with trailer coupler and wheels.
Accessories including:
Hydraulic log lifter
3m firewood discharge belt conveyor
4 way splitting wedge( 6 way and 8 way optional)
Detailed specification:
Split cylinder force: 35T
Capacity: 8-12 cbm/hour
Chainsaw: 20 inch
Splitting wood length: 100mm-6000mm
Max splitting diameter: 400mm
Max splitter length: 580mm
Adjustable height wedges: 4 way, 6 way, 8 way wedge with hydraulic adjustable
Automatic conveyor of feed wood(length x width) 1400 x 300mm
Engine power: power from 60-125hp tractor
Oil pump: 22GPM
Oil tank capacity: 40L
Control valve: 5 handle, 14- directional control valve
Tyre of wheel: 250/70R15C
Machine size: 5200 x 1750 x 1800mm
Packing size: 2500 x 1800 x 1800mm
N.W/G.W: 900/980kg
Customer reviews:
Related products:
Log trailer with crane for customer's choice if required, our log crane range from 1 ton -12 ton, trailer length from 3.6m to 6.3m, crane have CR02/CR04/CR06 accordingly, power option has PTO, gasoline/diesel engine for choice, and extendedable beam for option.
Q: what is the warranty?
A: we give 12 month manufactuer's warranty on the processor and accessories.
Q: Any power engine choice?
A: in addition to this PTO verstion, we have the gasoline/diesel version, electric 11kw/15kw version, skidsteer version available.
Q: what kind of accessories could i choose?
A: 1) log table with chain and in feed conveyor
2) log deck with hydraulic lifter(customer can choose either log table or this log lifter)
3) firewood discharge belt conveyor(3m standard, 4m/5m optional at extra cost)
4) splitting wedge (4 way/6 way/8 way optional)
Q: what is the delivery lead time?
A: usually speaking 15-20 days
Q: any certificate?
A: EPA approval for USA, Canada, Australian market and the rest market CE okay
Q: how it delivered?
A: usually ocean freight, as this machine is big in size and gross weight up to 990kg, so ocean freight is first choice,
LCL or FCL all okay.
Q: if any parts damaged or broken during warrany, what can you do for that?
A: we will provide the parts for free and get it delivered to customer by express or sea freight, it depends on the parts size and weight; ; also we make sure to provide all the parts for our machine for more than 5 years.
