Quick Details
-
Electric door strike operation:
-
Power to lock (fail-safe) / Power to open (fail-secure).
-
Voltage:
-
DC 12V / DC 24V ±10%
-
Current:
-
230mA(12V) / 115mA(24V)
-
Endurance:
-
1,000,000 cycles.
-
Keeper width:
-
38.8mm
-
Website:
-
www.pongee.com
-
Depth of lock slot:
-
15mm
Quick Details
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
Pegasus, Pongee
-
Product Name:
-

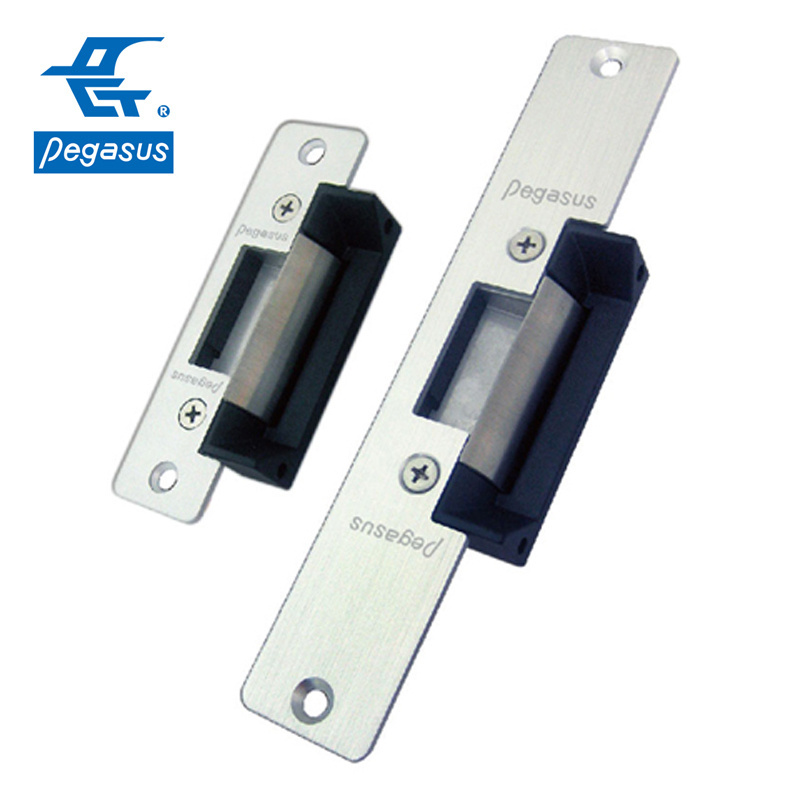

Fail-Safe And Secure Adjustable Electric Strike
-
Electric door strike operation:
-
Power to lock (fail-safe) / Power to open (fail-secure).
-
Voltage:
-
DC 12V / DC 24V ±10%
-
Current:
-
230mA(12V) / 115mA(24V)
-
Endurance:
-
1,000,000 cycles.
-
Keeper width:
-
38.8mm
-
Website:
-
www.pongee.com
-
Depth of lock slot:
-
15mm
Features
•The PGS-501 is a ANSI size electric door strike.
• Fail-Safe / Secure Adjustable
• Could be continuously energized.
• For light duty door.
•
Endurance:1,000,000 cycles.
Specifications
|
Model No. |
PGS-501 |
PGS-501L |
|
PGS-501-24V |
PGS-501L-24V |
|
|
Lock size (mm) |
124(L)x32(W)x32(H) |
202(L)x36(W)x32(H) |
|
Approx. weight |
165g±1% |
280g±1% |
|
Nominal voltage |
DC 12V / DC 24V |
|
|
Standby current |
230mA(DC 12V) / 115mA(DC 24V) |
|
|
Working current |
0mA |
|
|
Temp. range |
- 1 0 ℃ ~ 6 0 ℃ |
|
|
Power consumption |
2.76W |
|
|
Depth of lock slot |
15mm |
|
|
Suitable for spring latch bolt |
38(W) x 16(H)mm |
|
|
Material |
Front plate: Aluminum / Stainless steel Lock body: Zinc alloy Latches: Stainless steel |
|
|
Operation |
Pair with latch bolt mechanical lock.
|
|
|
Applications |
For aluminum steel or wooden door, brass door |
|
Dimensions: mm[inch]
How to change operation mode of electric strike
Ordering information
|
Model No. |
Appearance |
Dimensions(unit:mm) |
Material |
|
PG-FP150 |
|
150 x 28.6 |
Stainless steel |
|
PG-FP182 |
|
182 x 32 |
Stainless steel |
|
PG-FP202 |
|
201.6 x 32 x 16 |
Aluminum |
|
PG-FP209 |
|
209 x 31.7 |
Stainless steel |
|
PG-FP251 |
|
251 x 25 |
Stainless steel |
We reserve the right to change the specification without prior notice or obligation!
