Quick Details
-
Place of Origin:
-
Anhui, China, Anhui, China
-
Panel Dimensions:
-
2158*1236*35mm, 2158*1236*35mm
-
Panel Efficiency:
-
21%, 21%
-
Type:
-
All Black, Hot Sale, For home use
-
Warranty:
-
25 years
-

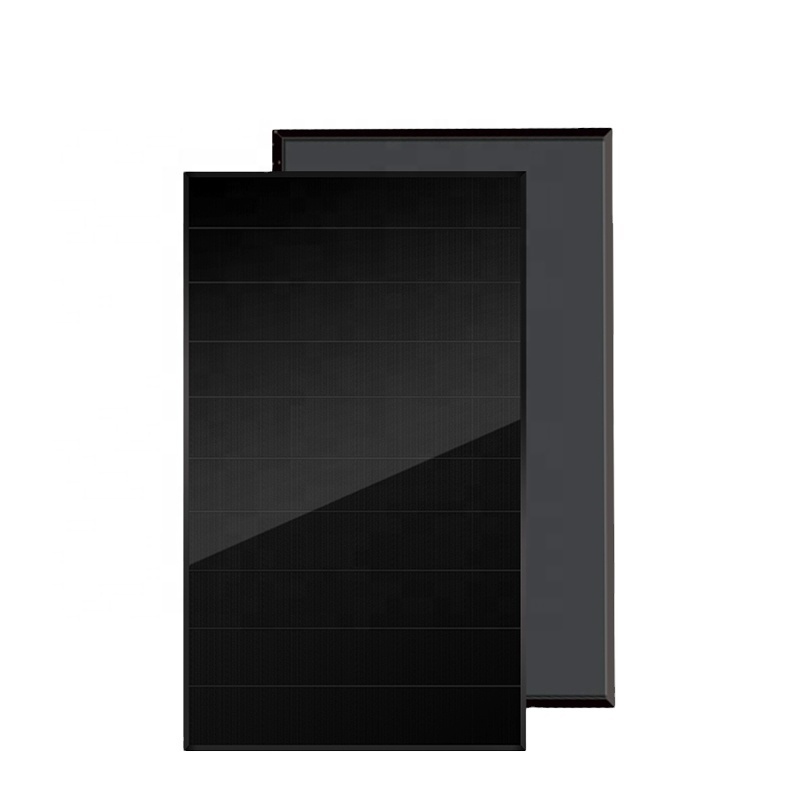

Product name:
-
Sola Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
Certificate
-
Junction Box:
-
IP68 Rated
Quick Details
-
Cell size:
-
182mmx182mm
-
Brand Name:
-
sunrover, sunrover
-
Model Number:
-
SUN540-560 DE21M(18)-EU shingled
-
Place of Origin:
-
Anhui, China, Anhui, China
-
Panel Dimensions:
-
2158*1236*35mm, 2158*1236*35mm
-
Panel Efficiency:
-
21%, 21%
-
Type:
-
All Black, Hot Sale, For home use
-
Warranty:
-
25 years
-
Product name:
-
Sola Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
Certificate
-
Junction Box:
-
IP68 Rated
Products Description
• Under the load of IEC 5400Pa,shingled has no new micro-cracks,although both shingled module and half-cell module passed the test (attenuation＜5%)
• High load resisting capacity reduces the production of micro-crack during transportation and power station installation.
When the shingled module is installed vertically and the single cell string is shaded,the output power of the shingled module can reach 86.65% of the normal operatiom.That's 35% more power than the half-cell module.
Certifications
Product Paramenters
|
Module
|
SUN540-DE21M
|
SUN545-DE21M
|
SUN550-DE21M
|
SUN555-DE21M
|
SUN560-DE21M
|
||||
|
Maximum Power(Pmax)
|
540W
|
545W
|
550W
|
555W
|
560W
|
||||
|
Maximum Power Voltage(Vmp)
|
43.20V
|
43.43V
|
43.66V
|
43.88V
|
44.10V
|
||||
|
Maximum Power Current(Imp)
|
12.50A
|
12.55A
|
12.60A
|
12.65A
|
12.70A
|
||||
|
Open-circuit Voltage(Voc)
|
48.08V
|
48.08V
|
48.07V
|
48.08V
|
48.09V
|
||||
|
Short-circuit Current(Isc)
|
14.54A
|
14.66A
|
14.67A
|
14.69A
|
14.70A
|
||||
|
Module Efficiency STC(%)
|
20.25%
|
20.43%
|
20.62%
|
20.80%
|
21.00%
|
||||
|
Operating Temperature(℃)
|
-40℃~+85℃
|
|
|
|
|
||||
|
Maximum system voltage
|
1500V DC
|
|
|
|
|
||||
|
Maximum series fuse rating
|
25A
|
|
|
|
|
||||
|
Power tolerance
|
0-5W
|
|
|
|
|
||||
|
Temperature coefficients of Pmax
|
-0.340%℃
|
|
|
|
|
||||
|
Temperature coefficients of Voc
|
-0.270%℃
|
|
|
|
|
||||
|
Temperature coefficients of Isc
|
0.04%℃
|
|
|
|
|
||||
|
Nominal operating cell temperature(NOCT)
|
42.3±2℃
|
|
|
|
|
||||
Product packaging
|
Type
|
Pallet
|
40HQ
|
|
SUN540-560 DE21M(18)
|
30pcs
|
600pcs
|
