Quick Details
-
Operating Speed:
-
12000-24000rpm
-
Spindle Type:
-
ISO30 Automatic Tool Change
-
Cooling type:
-
Air Cooling
-
Voltage:
-
220V/380V
-
Power:
-
9kw
-
Current:
-
18A / 30A
-
Frequency:
-
400hz-800hz
-
Collect:
-
ISO30
-
Bearing Type:
-
2x7008C & 2x7006C
-
Pole:
-
4
-
Single gross weight:
-
40
Quick Details
-
Weight (KG):
-
35
-
Brand Name:
-
Relia electric
-
Maximum Torque:
-
3.65Nm
-
Operating Speed:
-
12000-24000rpm
-
Spindle Type:
-
ISO30 Automatic Tool Change
-
Cooling type:
-
Air Cooling
-
Voltage:
-
220V/380V
-
Power:
-
9kw
-
Current:
-
18A / 30A
-
Frequency:
-
400hz-800hz
-
Collect:
-
ISO30
-
Bearing Type:
-
2x7008C & 2x7006C
-
Pole:
-
4
-
Single gross weight:
-
40
Product Overview

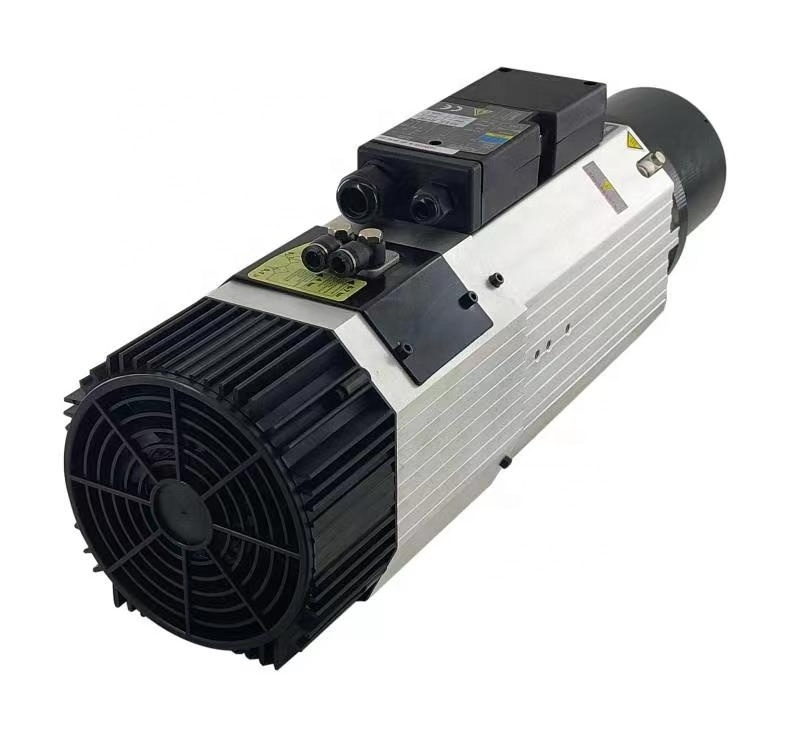

HJD143X133-9L Air Cooling Spindle Motor
|
Spindle Type
|
HJD143X133-9L
|
Cooling type
|
Air cooling
|
|
Speed
|
12000rpm-24000rpm
|
Power
|
9kw
|
|
Voltage
|
380v/220v
|
Current
|
30A/18A
|
|
Collet
|
ISO30
|
Frequency
|
400-800HZ
|
|
bearings
|
2X7008C P4 + 2X7006C P4
|
Weight
|
35kg
|
Related Products
Our Company
Changzhou Relia Electric Co., Ltd.
was established on 2009. We have more than 11 years experience of producing and exporting motors to more than 50 countries.
The mainly products we have:
1,Spindle motors(Water cooled / Air cooled / ATC) as well as VFD / Water pump / Holder bracket / Collets. 2,Brushless dc motors(Accept customization) 3,Stepper Motors and Stepper drivers 4,Servo Motors and Servo drivers 5, Other CNC router machines accessories
Certifications
Customer Feedback
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.
Q:
The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
6.
Q:
Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
7.
Q:
Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
8.
Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
