Quick Details
-
Power:
-
3.6kw
-
Dimension(L*W*H):
-
96*47*90cm
-
Weight:
-
65 KG
-
Output product name:
-
Small nut roasting
-
Name:
-
Small nut roasting machine
-
Heating method:
-
electric/gas/charcoal
-
Application:
-
all kinds of dried fruits and nuts
-
Function:
-
nut roasting
-
Type:
-
Grain Processing Equipment
-
Price:
-
negotiable
Quick Details
-
Brand Name:
-
pansheng
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380v
-
Power:
-
3.6kw
-
Dimension(L*W*H):
-
96*47*90cm
-
Weight:
-
65 KG
-
Output product name:
-
Small nut roasting
-
Name:
-
Small nut roasting machine
-
Heating method:
-
electric/gas/charcoal
-
Application:
-
all kinds of dried fruits and nuts
-
Function:
-
nut roasting
-
Type:
-
Grain Processing Equipment
-
Price:
-
negotiable
Product Description

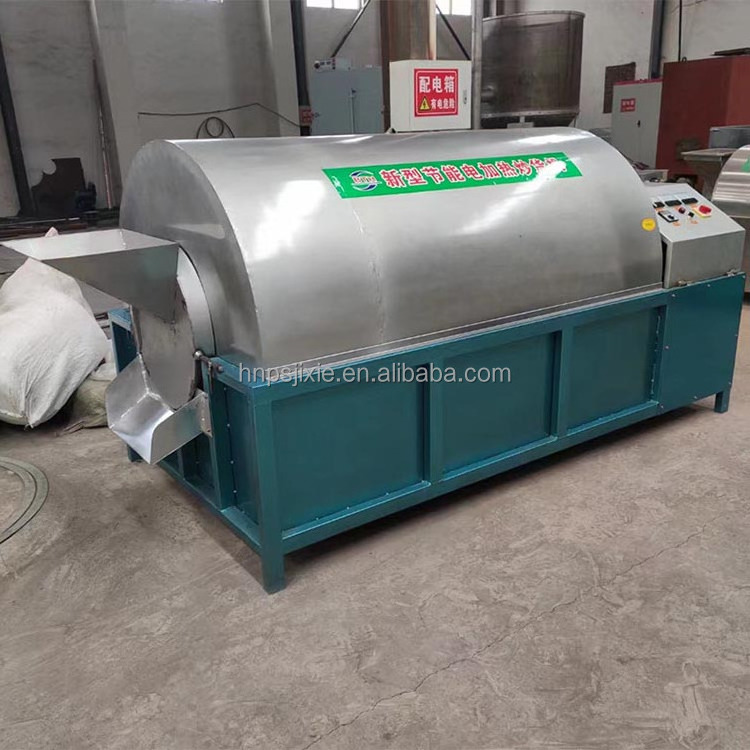

Hot sale sunflower seeds/ almonds roasting/ roaster/ frying machine
1) There are two types: electric and gas type. You can choose the one you prefer.
2) It can aslo be used for roasting peanuts, sesame, grains, cashew nuts, sunflower seeds etc, it is multi functional.
3) It is full stainless stell. What is more, we can customized the rotary drum--stainleess steel, not the iron.
4) For this machine, by reverse direction, it can pour out the materials. It is more convenient.
5) When roasting materials, you can also add some oil or salt to make different flavors.
Operation Methods
a, Gas/coal Heating
1,Please check the circuit junctions and insulation condition first
2,Fix the low pressure valve onto the gas tank and connect the soft tube for supplying gas. Then connect power.
3,Revolving take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the power switch fist and then open gas tank and fire. Then the roasting starts.
4,After finishing roasting, close the gas valve and turn off electricity. Fix the screen to the roller exit, and take down the
cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
5,Close the gas source and cut off power then the operator can leave.
1,Please check the circuit junctions and insulation condition first
2,Fix the low pressure valve onto the gas tank and connect the soft tube for supplying gas. Then connect power.
3,Revolving take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the power switch fist and then open gas tank and fire. Then the roasting starts.
4,After finishing roasting, close the gas valve and turn off electricity. Fix the screen to the roller exit, and take down the
cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
5,Close the gas source and cut off power then the operator can leave.
b , Electricity Heating
1,Please check the circuit junctions and insulation condition first
2,Revovling take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the motor switch frist and then open the heating switch and preset the temperature and start roasting. The temperature controller can set the heating temperature.
3,After finishing roasting, turn off heating and motor switch orderly . Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
4,Cut off power source then the operator can leave.
2,When the motor switch is in the clockwise (reverse) condition, first dial it to the stop position and wait for 2 seconds then make it to the reverse(clockwise) position, in order to ensure the motor’s service life.
3,The ball bearing need be lubricated every half a month and reduction gearbox every half a year.
1,Please check the circuit junctions and insulation condition first
2,Revovling take down the sealing cover of roller, load the materials, then revolving seal the cover. Turn on the motor switch frist and then open the heating switch and preset the temperature and start roasting. The temperature controller can set the heating temperature.
3,After finishing roasting, turn off heating and motor switch orderly . Fix the screen to the roller exit, and take down the cover of roller and switch on the motor reverse turning button, the roasted food will come out and separate automatically.
4,Cut off power source then the operator can leave.
Precautions
1,Check the connections and valve will not leak for the gas heating type and ensure no heating source or danger around the gas tank. Cut off the gas source after finishing work.
2,When the motor switch is in the clockwise (reverse) condition, first dial it to the stop position and wait for 2 seconds then make it to the reverse(clockwise) position, in order to ensure the motor’s service life.
3,The ball bearing need be lubricated every half a month and reduction gearbox every half a year.
Application areas
Snack Food Industry: melon seeds, peanuts, cashews, almonds, chestnuts, walnut oil press: sesame seeds, rapeseed, soybeans Tea industry: fixing, drying Pharmaceutical industry: Chinese planing condiment industry: pepper, pepper, anise, fennel Chemical industry: drying and heating of chemical raw materials Tobacco processing industry: baking process Feed industry: raw materials roasted mixed cereals Processing industry: corn, sorghum, rice, barley, wheat
Supporting products
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
|
|
Showroom Location
|
None
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor
|
|
Brand Name
|
pansheng
|
|
Place of Origin
|
China
|
|
|
Henan
|
|
Voltage
|
220/380v
|
|
Power
|
3.6kw
|
|
Dimension(L*W*H)
|
96*47*90cm
|
|
Weight
|
65KG
|
|
Warranty
|
1 Year
|
|
Application fields
|
Dairy products factory, Commercial catering, Flour mill, Winery, Fruit processing plant, Cooking oil factory, Cannery, Beverage Factory, Meat processing plants, Vegetable processing plant, Seasoning plant, Frozen food Factory, Snack food factory, Bakery
|
|
Raw material
|
Wheat, Vegetables, Corn, Fruit, Nuts, Flour, Soybean
|
|
Output product name
|
Small nut roasting
|
|
Raw material:
|
Wheat, Corn, Nuts, Soybean, Pumpkin Seeds,peanut ect
|
|
Name:
|
Small nut roasting machine
|
|
Heating method:
|
electric
|
|
Application:
|
all kinds of dried fruits and nuts
|
|
Function:
|
nut roasting
|
|
Type:
|
Grain Processing Equipment
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
