Size: 23.2X12.1X25.25mm
Limit Angle: No limit
Case material: PC plastic
Gear material: Metal Gear
Bearing type: No
Angle Sansor: Type Carbon-Film Potentiometer: Angle 330°
Life 100000: Cycles Min
Connector and Cable: Type JR
Material: PVC
Length 25CM
Pin Definition " 1 Signal
2 Vcc
3 GND
The Weight: 13.5± 1g
Horn Type: 20T/3.95mm
Gear Ratio: 1/416
Back Lash: ≦2.0°
The rocker phantom: 0°
The rocker screw: M2.0X4
Motor: Core Motor
- Product Details
- {{item.text}}
Quick Details
-
Controller Battery:
-
Battery
-
Style:
-
Radio Control Toy
-
Color::
-
Black
-
Dimensions(mm)::
-
A:23.2mm B:12mm C:25.5mm
-
Weight(g)::
-
12.5g
-
Gear type:
-
Metal Gear
-
Limit angle:
-
NO limit
-
Bearing:
-
NO Ball bearings
-
Horn gear spline:
-
20T
-
Horn type:
-
Plastic,POM
-
Cas:
-
A
Quick Details
-
Place of Origin:
-
Guangdong, China
-

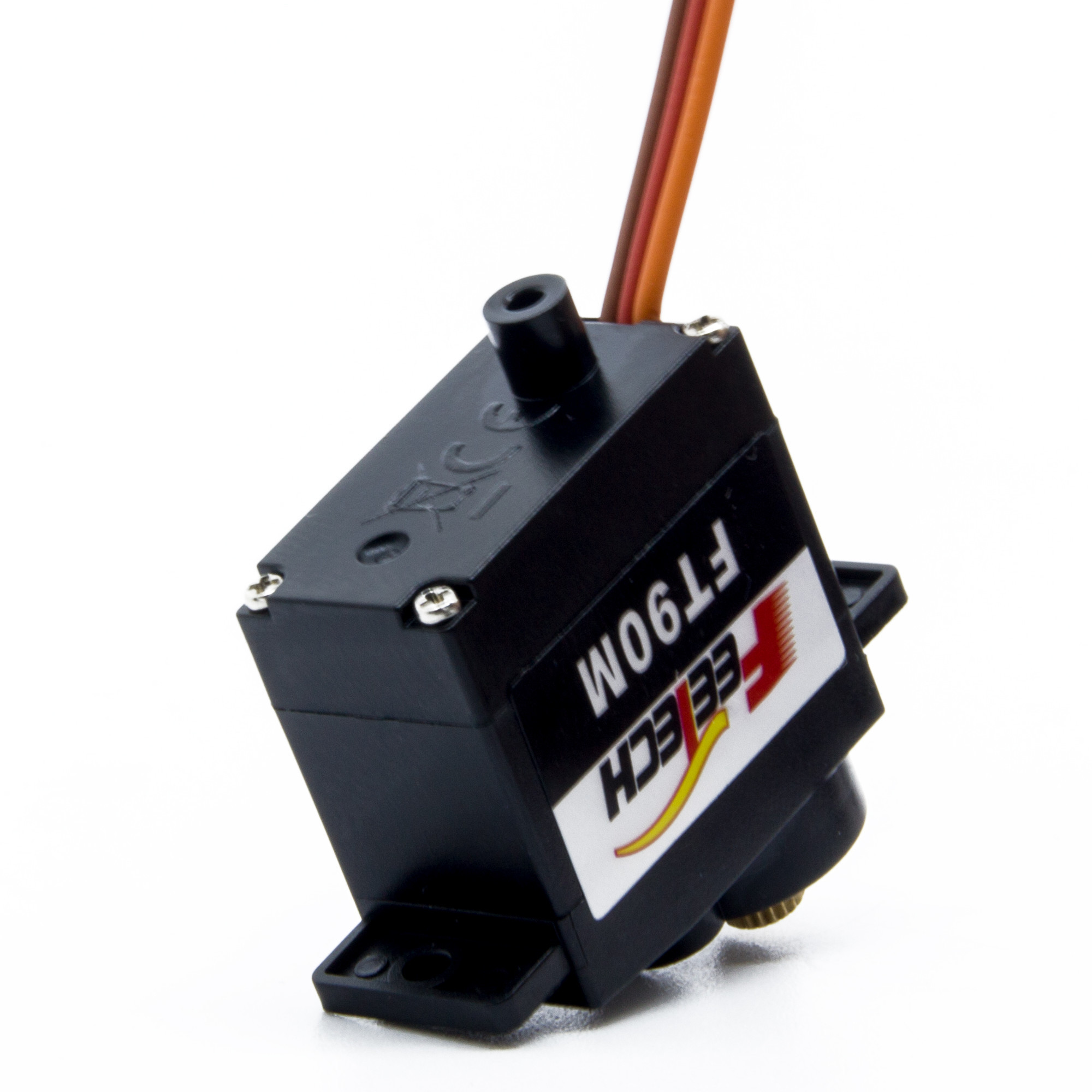

Model Number:
-
FT90M-C012
-
Remote Distance:
-
5mA
-
Controller Battery:
-
Battery
-
Style:
-
Radio Control Toy
-
Color::
-
Black
-
Dimensions(mm)::
-
A:23.2mm B:12mm C:25.5mm
-
Weight(g)::
-
12.5g
-
Gear type:
-
Metal Gear
-
Limit angle:
-
NO limit
-
Bearing:
-
NO Ball bearings
-
Horn gear spline:
-
20T
-
Horn type:
-
Plastic,POM
-
Cas:
-
A
Product Description
|
Operating Voltage
|
|
|
|
4.8V
|
|
6V
|
|
||||||
|
No Load Speed
|
|
|
|
0.125sec/60°(80RPM)
|
|
0.1sec/60°
(100RPM) |
|
||||||
|
Running Current ( no load)
|
|
|
|
120mA
|
|
150mA
|
|
||||||
|
Stall Torque (at locked)
|
|
|
|
1.89kg.cm
|
|
2.3kg.cm
|
|
||||||
|
|
|
|
|
26.3oz.in
|
|
31.99oz.in
|
|
||||||
|
Stall Current (at locked)
|
|
|
|
800mA
|
|
1000mA
|
|
||||||
|
Idle Current (at stopped) |
|
|
|
5mA
|
|
6mA
|
|
||||||
|
Input Voltage
|
|
|
|
3V-8.4V
|
|
|
|
||||||
|
Rated Torgue
|
|
|
|
0.6kg.cm
|
|
0.7kg.cm
|
|
||||||
|
Rated Current
|
|
|
|
250mA
|
|
350mA
|
|
||||||
|
Kt
|
|
|
|
2.3kg.cm/A
|
|
|
|
||||||
|
Command Signal
|
|
|
|
Pulse width modification
|
|
|
|||||
|
Control System Type
|
|
|
|
Digital comparator
|
|
|
|||||
|
Operating Travel
|
|
|
|
280°(at 1000→2000μsec)
|
|
|
|||||
|
Left&Right Travelling Angledeviation
|
|
|
|
≤ 5°
|
|
|
|||||
|
Centering Deviation
|
|
|
|
≦2°
|
|
|
|||||
|
Neutral Position
|
|
|
|
1500 μsec
|
|
|
|||||
|
Dead Band Width
|
|
|
|
≤4 μsec
|
|
|
|||||
|
Rotating Direction
|
|
|
|
Counterclockwise(1500→2000 μsec)
|
|
|
|||||
|
Pulse Width Range
|
|
|
|
1000→2000 μsec
|
|
|
|||||
|
Electronic Protection
|
|
|
|
Stall 3sec
|
|
|
|||||
|
Life test
|
|
|
＞50000 time
|
|
|||
|
The motor noises
|
|
|
45±5dB
|
|
|||
|
Steering gear noises
|
|
|
65±5dB
|
|
|||
|
Waterproof performance
|
|
|
No
|
|
|||
