Quick Details
-
Model Number:
-
TDJLM3070
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Output:
-
Switch output
-
Contact load:
-
0.3A at 240V AC/DC
-
Monitoring current:
-
0 to 100A options
-
Maximum overload:
-
100%
-
Maximum leakage value:
-
0.1mA
-
Response time:
-
<200ms
Quick Details
-
Usage:
-
PLC Signal,Overload Controller
-
Mounting Type:
-
screw hole fixed
-
Description:
-
current sensing relay, current sensor relay
-
Model Number:
-
TDJLM3070
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Output:
-
Switch output
-
Contact load:
-
0.3A at 240V AC/DC
-
Monitoring current:
-
0 to 100A options
-
Maximum overload:
-
100%
-
Maximum leakage value:
-
0.1mA
-
Response time:
-
<200ms

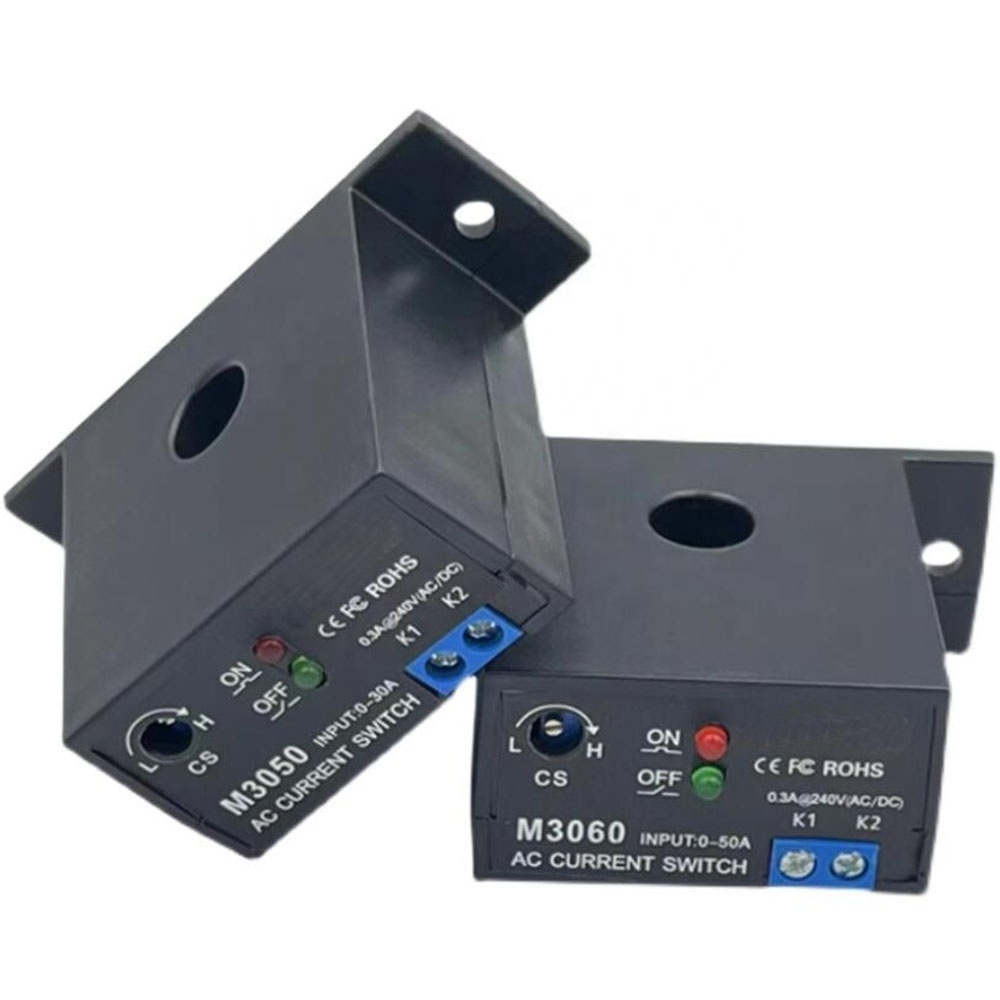

Taidacent 0.5-100A Detectable Normally Open Amp Sensor Monitoring Relay AC Current Leakage Transducer AC Current Sensing Switch
Product Description
Multi-Purpose: M3070 AC current sensing switch is specially designed and manufactured to solve AC current monitoring. It uses the principle of mutual inductance to sense AC direct current, isolate the AC current, output normally open or normally closed switch signals, and directly control various automated industrial equipment, such as flash lamps, buzzers, relays, microcontrollers or other power load equipment.
Upgrade: Compared with traditional transformers, thermal protectors and other devices, using this device can not only get more accurate and timely control, but also greatly simplify the design and reduce costs. Self-powered, no external power supply required. Input through current: 0-100A AC rated load: 0.3A at 240V AC/DC.
High Performance: The switch has no limit on the number of times of opening and closing, and the response speed reaches the millisecond level. The hysteresis is less than 1% and can be used under strong magnetic conditions. Through structure design, isolation withstand voltage up to 2000V.
LED Indication: The action current is 0-100A AC, which can be adjusted by the potentiometer. The LED indicator light can easily and intuitively indicate the working status of the switch.
ABS material: High-power MOS tube non-contact electronic switch is used, and the shell is made of self-extinguishing material ABS, which is heat-resistant, acid-alkali-resistant, high impact strength and stable in performance.
Specification
|
item
|
value
|
|
Mounting Type
|
screw hole fixed
|
|
Description
|
current sensing relay
|
|
Model Number
|
TDJLM3070
|
|
Type
|
CURRENT TRANSFORMER
|
|
Brand Name
|
Taidacent
|
|
Usage
|
PLC Signal,Overload Controller
|
|
Output
|
Switch output
|
|
Description
|
current sensor relay
|
|
Contact load
|
0.3A at 240V AC/DC
|
|
Monitoring current
|
0 to 100A options
|
|
Maximum overload
|
100%
|
|
Maximum leakage value
|
0.1mA
|
|
Response time
|
<200ms
|
Packing & Delivery
box
