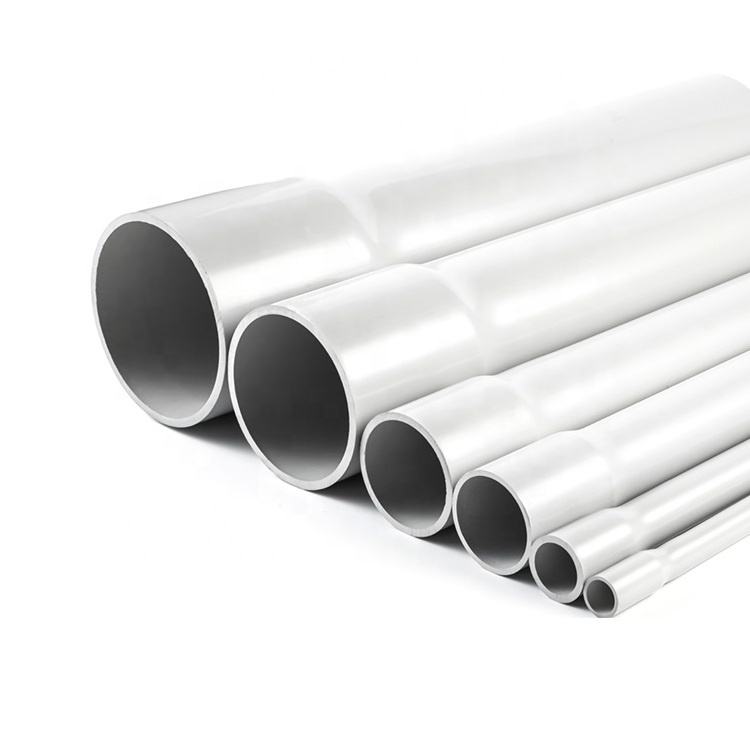

CSA 2"-6'' inch PVC Electrical Rigid Conduit Pipe

FOB Reference Price: Get Latest Price

≥3000 Foot

US $0.23

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: HH-CSRCA

Specification:: 1/2'' inch

Length:: 10/20 feet

Standard:: CSA, Canadian Standard

Product name:: PVC Electrical Rigid Conduit

Color:: Grey

Feature:: Corrosion Resistant

Application:: Wire Protecting

Type:: SCH40

Fire Rating:: V0

Working Temperature:: -45 degree~110 degree

Structure:: with a belled end

Printing:: Permanency

Quick Details

Processing Service:: Moulding, Cutting

Place of Origin:: Guangdong, China

Brand Name:: LEDES

Model Number:: HH-CSRCA

Specification:: 1/2'' inch

Length:: 10/20 feet

Standard:: CSA, Canadian Standard

Product name:: PVC Electrical Rigid Conduit

Color:: Grey

Feature:: Corrosion Resistant

Application:: Wire Protecting

Type:: SCH40

Fire Rating:: V0

Working Temperature:: -45 degree~110 degree

Structure:: with a belled end

Printing:: Permanency

CSA Approved

CSA 2"-6'' inch PVC Electrical Rigid Conduit Pipe

Product Details

Item Number	Size	OD(mm）	ID(mm）	Min T（mm）
HH-SCH40A	1/2	21.34	14.68	2.77
HH-SCH40B	3/4	26.67	19.81	2.87
HH-SCH40C	1	33.40	25.50	3.38
HH-SCH40D	1 1/4	42.16	33.90	3.56
HH-SCH40E	1 1/2	48.26	39.72	3.68
HH-SCH40F	2	60.32	51.33	3.91
HH-SCH40G	2 1/2	73.02	61.31	5.16
HH-SCH40H	3	88.90	76.40	5.49
HH-SCH40I	3 1/2	101.60	88.54	5.74
HH-SCH40J	4	114.30	100.60	6.02
HH-SCH40K	5	141.30	126.36	6.55
HH-SCH40L	6	168.28	152.04	7.11
HH-SCH40M	8	219.07	199.47	8.18

Flame Resistance

UL 94

V0 fire rating, the flame will self extinguish once leave the open fire within 5s. It can well ensure that in case of fire, the

destructive force will not increase due to the continuous burning of the conduit. Better protect the environment and surrounding equipment.

Sunlight Resistant

Our conduits can work normally after sunlight resistant test over 1000 hours. So our conduits are also suggest to be used in solar energy projects and solar projects.

Impact Resistant

For schedule 40 conduits, it can bear the load as least 3113 Newton, at most 4450 Newton; for schedule 80, all sizes of conduits can bear 8896 Newton without crush.
