Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3.2x2.5x1.7m
-
Weight:
-
2200 kg
-
unwind roll:
-
1 roll
-
rewind roll:
-
2rolls
-
slitting blade:
-
round blade/razor blade
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
170 m/min
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3.2x2.5x1.7m
-
Weight:
-
2200 kg
-
unwind roll:
-
1 roll
-
rewind roll:
-
2rolls
-
slitting blade:
-
round blade/razor blade
-
After Warranty Service:
-
No service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE

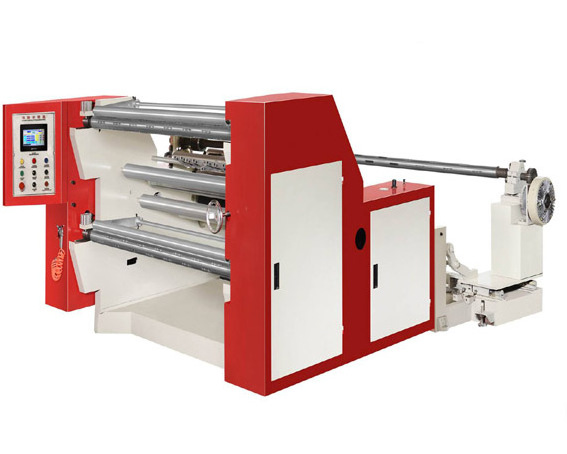

WFQ-1300A Computer horizontal slitting rewind machine-needle roller perforation
1
.
Application
This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production.
2
.Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g
.
2. Independent master control screen, more flexible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.
3 . Main Technical Specification
|
Model |
WFQ- 13 00 A |
|
Suitable material |
Fabric, PP, BOPP, Paper, PE, aluminum foil,etc |
|
Max. diameter of unwind |
10 00mm |
|
Max width or unwind roll |
13 00mm |
|
Paper inner diameter |
76mm |
|
Max. cutting width |
20- 13 00mm |
|
Machine speed |
160m/m in |
|
Slitting speed |
150m/min |
|
Rewind diameter |
600mm |
|
Main motor |
4 kw |
|
Accurate of adjustment |
±0.5mm |
|
Total power |
9 kw |
|
Weight |
22 00kg |
|
Overall size |
3200×25 00×17 0 0mm |
4.picture showroom
