Quick Details
-
Support computer and mobile screening:
-
with audio switching
-
Support pre-monitor and echo functions:
-
Support multiple consoles
-
Support seamless switching:
-
Support maximum 4K pixel ultra-high-resolution base map
-
support max 36 screen segmentation:
-
with KVM
-
Support the LCD scrolling captioning:
-
Support matrix switching
-
video wall processor:
-
led video processor
-
4K output:
-
H D M I/DVI
-
supports H.264/H.265 decoding:
-
open two windows
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
video wall matrix processor
-
Application:
-
Security video surveillance
-
Support computer and mobile screening:
-
with audio switching
-
Support pre-monitor and echo functions:
-
Support multiple consoles
-
Support seamless switching:
-
Support maximum 4K pixel ultra-high-resolution base map
-
support max 36 screen segmentation:
-
with KVM
-
Support the LCD scrolling captioning:
-
Support matrix switching
-
video wall processor:
-
led video processor
-
4K output:
-
H D M I/DVI
-
supports H.264/H.265 decoding:
-
open two windows

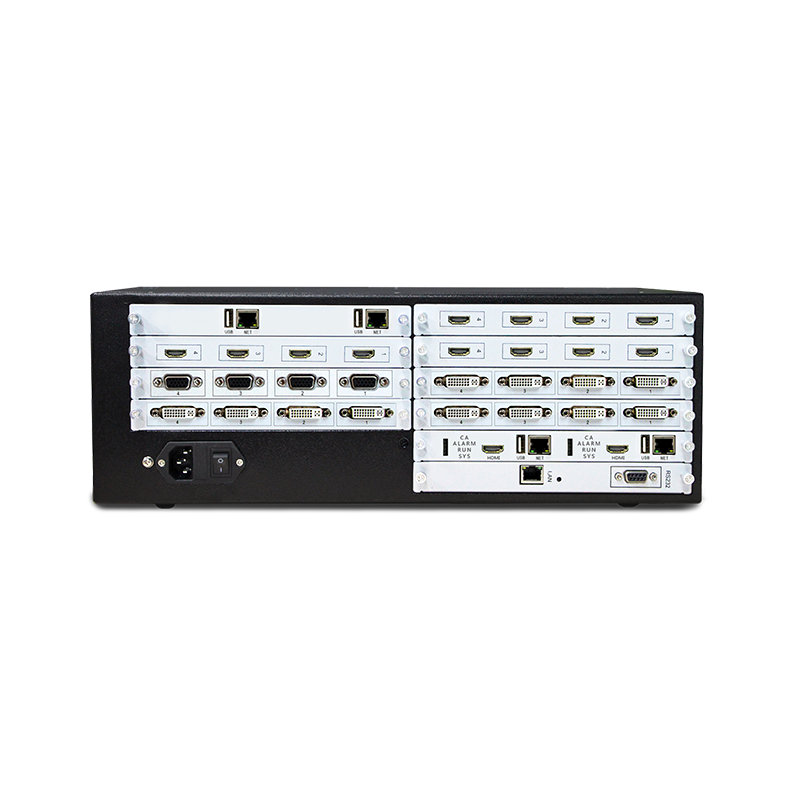

MA2000-02A series audio and video splicing processor is a professional multi-functional image splicing products developed for the field of LCD splicing display, using large-scale ARM + FPGA array and DSP high-speed processing combination architecture, combined with independent intellectual property rights of the video processing algorithm, full hardware design, integrated structure, so that its internal software and operating system without any, safe and stable It is safe and stable. It can meet the needs of a large number of pictures and video processing, seamless audio and video switching, simple control, and support for a variety of platforms.
Featured Features
Technical parameters
|
Chassis
Specification
|
Chassis Height | 3U | 6U | 12U | 24U | |
| Input Slot | 4 | 9 | 18 | 36 | ||
| Output Slot | 5 | 9 | 18 | 36 | ||
| Master Control Slot | 1 | 1 | 1 | 1 | ||
| Maximum input and output | 16 in 20 out | 36 in 36 out | 72 in 72 out | 144 in and 144 out | ||
|
Dimension
WxDxH(mm) |
480*340*160 |
480*340*295 | 440*360*580 | 520*350*950 | ||
| Input Boards | Signal Type | VGA/DVI/HDMI/SDI/BNC/ (DP/miniDP/Ypbpr/CVBS/support adapter) | ||||
| Maximum Resolution | 1920X1080@60HZ 4K (3840X2160@30HZ) (optional) | |||||
| Output Boards | Signal Type | DVI/HDMI/ (VGA/DP/miniDP/BNC/Ypbpr support adapter) | ||||
| Maximum Resolution | 1920×1080@60Hz 4K (3840X2160@30HZ) (optional) | |||||
| Hardware Information | Product Type | Pure Hardware Architecture | ||||
| Processing Technology | FPGA real-time processing technology | |||||
| Boot Speed | <5S | |||||
| Board Type | Modular hot-swappable structure | |||||
| Security Features | No viruses, deadlines | |||||
| Display method | Arbitrary stitching/open window/picture-in-picture/roaming/overlay/scaling/cross-screen, etc., support 2 layers overlay | |||||
| IPC decoding card (optional) | Hikang / Dahua / Yuvision / Xiongmai mainstream manufacturers such as standard onvif protocol and national standard GB28181 IPC decoding, and support Hikang / Dahua / Yuvision / Xiongmai NVR / DVR decoding and video playback; (control mark point), and support the Division Mi Ling cloud cross-regional, wide area network cameras on the wall decoding (control mark point) | |||||
| Decoding Performance |
A single network audio and video decoding IP card supports a maximum of 36 divisions, the maximum support for decoding 72-way audio and video decoding, can simultaneously decode 2-way 4K, 8-way 500W\400W\300W,
18-way 1080P, 32-way 720P, 72-way D1 (control mark point), and IP card can be multi-access system expansion of multi-way IPC decoding, to achieve large-scale video on the wall |
|||||
| Dante's audio and video switching |
Input: Support HDMI support built-in audio input
Output: Support external 3.5MM audio interface. Chassis support cross Dante's high quality sound channel audio. |
|||||
| Pre-monitoring back to the display card (optional) | Hard pre-surveillance / playback | |||||
| Multi-window information distribution card | Through multi-window information distribution software with a computer to capture WEB browser, local software, local video, local pictures, PPT push to the splicing screen (control mark point) | |||||
| Input and output board auto-detection | Real-time detection of all boards inserted in the current processor. | |||||
| Input signal auto-detection | Real-time detection of each way input whether there is a signal access, the input board and client software have status indication | |||||
| Wireless screen casting card (optional) | Support cell phone (Andriod \ ios) and computer one-key wireless screen casting function, while supporting computer and cell phone 2 split screen mixed casting (control mark point) | |||||
| Virtual LED scrolling subtitles | Ultra HD point-to-point vector subtitles, support dynamic and static subtitles, you can edit the display content, font, color and other parameters at will. Set in order to welcome message | |||||
| Control method | Network Control | Control Protocols | TCP/IP | |||
| Control Interface | RJ45 | |||||
| Wifi control | Tablet or cell phone connection, AI voice recognition control (control marker points) | |||||
| Serial control | Control Interface | RS232 × 1, 9-pin D-type male interface | ||||
| Baud rate | 115200 | |||||
|
Product specification |
Use Environment | Operating temperature (℃) | -15-60 degrees Celsius | |||
| Working humidity (RH) | 10-90 % non-condensing | |||||
| Electrical characteristics | Output Voltage | 100-220V,AC | ||||
| Frequency | 50-60HZ | |||||
| Weight | <=20KG(fully equipped) | |||||
| Redundant power supply (optional) | Support optional redundant power supply chassis | |||||
| Mean Time Between Failures (MTBF) | >50000 hours | |||||
