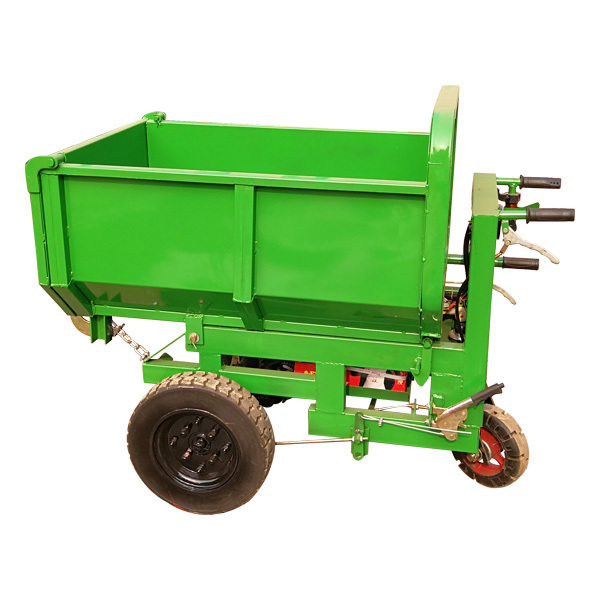

LK12 good electric wheelbarrow for building construction, garden tool cart

For LK13 , it is mainly used for the construction of mortars on the ground floor of construction sites, garden tools, farm tools, feed, crops, etc. It can also be used for the transportation of relative short-distance sandstone minerals in small mines.

Main Usage difference between LK12 and LK13:
LK12A mini wheelbarrow is usually used to load the large irregular materials, such as ore,construction waste,stone,tools and etc.
LK12B mini wheelbarrow is usually used to load the regularlar objects. such as bricks,regular shape wood, or other regular-packing items.

LK13 mini wheelbarrow is suitable for loading sand, powder material,other fine particles materials, cement paste and other slurry

Please NOTE: The standard configuration is mine tire. Not same as the tires in the following pictures. For more details about the tire, please see the details in the next paragraph.

The electric mini wheelbarrow Video Links :

1. LK12 mini wheelbarrow testing in the factory__ https://youtu.be/QHQSnErRBDY
2. Display of 36 sets of LK12 electric mini wheelbarrow bought by Bolivia client__ https://youtu.be/c76Fe7k29hA
3. Display of 44 sets of LK12 dumper bought by Dutch client--- https://youtu.be/Fb4DWoKeSVI
4. Testing of the LK13 electric mini wheelbarrow in factory --- https://youtu.be/qD_4UcD7S5Q

5. Pure clients drive the LK15 electric mini wheelbarrow --- https://youtu.be/rz-qwxvU5dw

1. Rear tire type. The standard configuration is mine tire .

LK12, LK13, LK15, these three models can be optional to choose the below tires .

To change mine tire to solid tire or herringbone tire, which need extra money.

Mine tire: this is standard configuration, which is better than normal pneumatic tire

Solid tire : with solid type tire is much super sturdy and durable

Herringbone patter tire: which is suitable to use in muddy road, rainforest area.

2. 850 Motor and rear axle and Battery.

The standard configuration motor of LK13 and LK12 is 850W. The battery is 20ah. If you want to improve the dumper's endurance capacity, you can add a new set(4 pieces) of batteries so that the vehicle can run uninterrupted.

3. Cargo box thickness. The standard configuration of LK12 has 3mm thickness of cargo box plates, mainly used for loading heavy stone, coal or ore. While the LK13 cargo box plates is 2mm thickness, mainly be used in construction site, garden or farm, no need 3mm plate, 2mm is enough.

4. Simple operation introduction of LK12.

A: Driving brake: you can use hand to stop the mini dumper when it is moving.
B: Electricity meter: you can see the electricity using condition clearly and you can charge it exactly.
C: Power switch: On and off, by using the key to turn it to on position to start and off position to stop.
D: Horn: Press this black round button, to make sound to notice person.
E: Forward and backward: press own upper part, go forward direction. press down under part, go backward direction.
F: Accelerator control: it controls the mini dumper's speed. Rotate it in clockwise direction to speed up.

G: Handbrake: When the trolley dumper is stopped, you can use handbrake to make it not to move anymore.
H: Footbrake: It is used to stop the mini dumper when you are driving.
I: Charge interface: Use the charger to plug in to charge battery. there is one cover to protect the charge interface.

5. Simple operation introduction of LK13.

A:Driving brake: you can use hand to stop the mini dumper when it is moving.
B: Electricity meter: you can see the electricity using condition clearly and you can charge it exactly.
C: Power switch: On and off, by using the key to turn it to on position to start and off position to stop.
D: Forward and backward: press own upper part, go forward direction. press down under part, go backward direction.
E: Accelerator control: it controls the mini dumper's speed. Rotate it in clockwise direction to speed up.
F: Handbrake: When the mini dumper is stopped, you can use handbrake to make it not to move anymore.
G: Lifting lever: Use it to lift the cargo box. Equip with long lifting lever, adopts lever principle to save labor.

LK135(load 1T), LK270(load 2T) &LK540(load 3T) mini dumper.

Load cargo tested on road: https://youtu.be/4PJZz-Cg0nA

LK200 load 1.5ton mini dumper.

Mucking loader.

Wheel type loader youtube video testing in factory : https://youtu.be/MphNsLC2SZg
