Quick Details
-
Model Number:
-
UV-20
-
Brand Name:
-
MIT-UNID-CNS
-
Pipe Size:
-
3/4" DN20
-
Orifice:
-
20mm
-
Fluid Temp(℃):
-
-5~80
-
Operating pressure:
-
0-0.001 Torr
-
Suitable medium:
-
Vacuum
Quick Details
-
Port Size:
-
3/4''
-
Warranty:
-
1 years
-
Place of Origin:
-
CHN
-
Model Number:
-
UV-20
-
Brand Name:
-
MIT-UNID-CNS
-
Pipe Size:
-
3/4" DN20
-
Orifice:
-
20mm
-
Fluid Temp(℃):
-
-5~80
-
Operating pressure:
-
0-0.001 Torr
-
Suitable medium:
-
Vacuum
About Us
Products Description
|
Model
|
|
UV-20
|
|
|
|||
|
Pipe Size
|
|
3/4" DN20
|
|
|
|||
|
Control Mode
|
|
Normally Closed
|
|
|
|||
|
Valve Body
|
|
Forged brass
|
|
|
|||
|
Conncetion
|
|
Thread,Standard:BSPT,Optional:BSP,NPT
|
|
|
|||
|
Voltage
|
|
DC:12V,24V,36V;AC:24V,36V,110V,220V,380V,440V
|
|
|
|||
|
Fluid Temp
|
|
-5～80℃
|
|
|
|||
|
Operating Pressure
|
|
0-0.001 Torr
|
|
|
|||
|
Feature
|
|
Direct-acting,multiplex,connected diaphragm,conductive
|
|
|
|||
|
Applicable Fluid
|
|
Vacuum
|
|
|
|||
|
Certificate
|
|
CE,CSA
|
|
|
|||
|

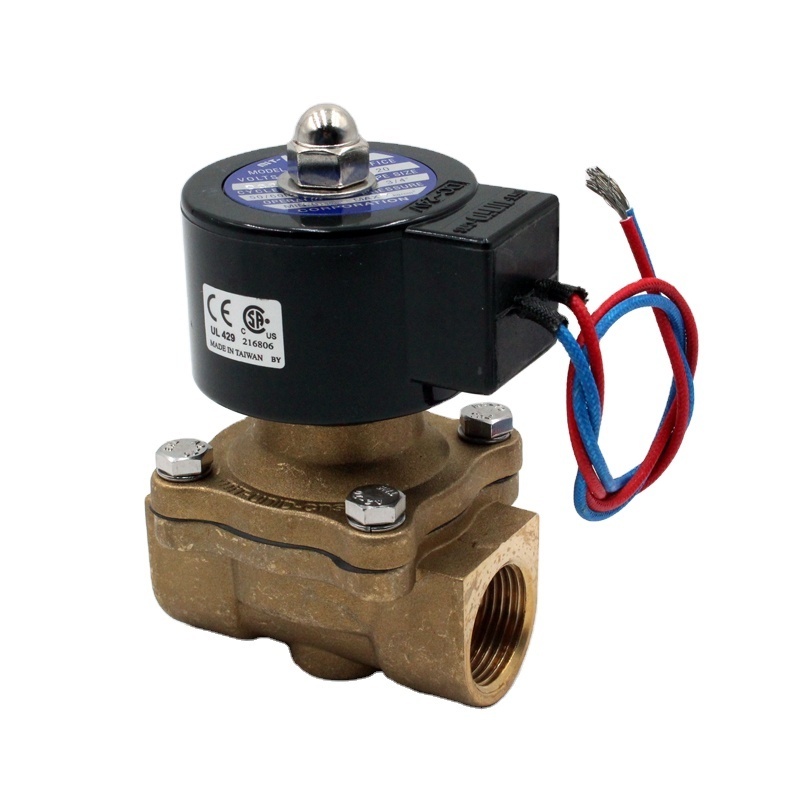

Product Introduction
|
|
UV-10~50 series are direct-acting diaphragm type, large flow, normal temperature, normally Closed, threaded, vacuum Solenoid
valves. The models are UV-10, UV-15, UV-20, UV-25, UV-35, UV-40, UV-50.The corresponding pipe size is 3/8 ", 1/2", 3/4", 1", 1-1/4 ", 1-1/2", 2" respectively. The valve body material of this Series is froged copper, and the diaphragm material is NBR, Which is suitable for vacuum Applications. |
|
|
|||
