Quick Details
-
Torque:
-
73N.M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BARTONSMARTX
-
Model Number:
-
2V91
-
Warranty:
-
24 Months
-
Engine Code:
-
2V91
-
Car Model:
-
UTV ATV
-
Product Name:
-

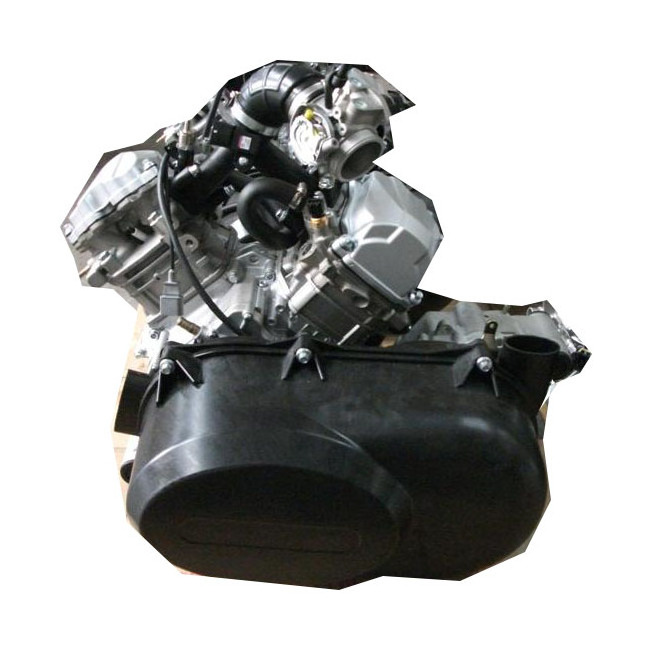

Complete Engine
-
Application:
-
Car Engine Parts
-
Key Word:
-
Petrol Engine Assy
Quick Details
-
OE NO.:
-
GASOLINE ENGINE ASSEMBLY 800CC, COMPLETE ENGINE CVT, 600cc atv engine
-
Power:
-
44KW
-
Displacement:
-
0.8L
-
Torque:
-
73N.M
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BARTONSMARTX
-
Model Number:
-
2V91
-
Warranty:
-
24 Months
-
Engine Code:
-
2V91
-
Car Model:
-
UTV ATV
-
Product Name:
-
Complete Engine
-
Application:
-
Car Engine Parts
-
Key Word:
-
Petrol Engine Assy
Product Description
Specification
|
Engine type
|
|
|
|
|
|
|
|
800
|
|
|||||||||
|
|
|
|
|
|
|
|
|
4-stroke,
single Over Head Camshaft(SOHC), Liquid cooled |
|
|||||||||
|
Number of cylinders
|
|
|
|
|
|
|
|
2
|
|
|||||||||
|
Number of valves
|
|
|
|
|
|
|
|
8 valves (mechanical adjustment)
|
|
|||||||||
|
Bore
|
|
|
|
|
|
|
|
91 mm
|
|
|||||||||
|
Stroke
|
|
|
|
|
|
|
|
61.5 mm
|
|
|||||||||
|
Displacement
|
|
|
|
|
|
|
|
800 cm3
|
|
|||||||||
|
Compression ratio
|
|
|
|
|
|
|
|
10.3:1
|
|
|||||||||
|
Decompressor type
|
|
|
|
|
|
|
|
N.A.
|
|
|||||||||
|
Maximum HP/ RPM
|
|
|
|
|
|
|
|
44Kw/6000 RPM
|
|
|||||||||
|
Maximum Ne /RPM
|
|
|
|
|
|
|
|
73N.m/5000 RPM
|
|
|||||||||
|
Idle speed
|
|
|
|
|
|
|
|
1250 ±50 RPM (not adjustable)
|
|
|||||||||
|
Lubrication
|
Type
|
|
|
|
|
|
|
Wet sump. Replaceable oil filter
|
|
|||||||||
|
|
Oil filter
|
|
|
|
|
|
|
Paper type, replaceable
|
|
|||||||||
|
|
Engine oil pressure
|
Minimum
|
|
|
|
|
|
350 kPa at 6000 RPM
|
|
|||||||||
|
|
Engine oil
|
Capacity
(oil change with filter) |
|
|
|
|
|
2.2 L
|
|
|||||||||
|
|
|
Recommended
|
|
|
|
|
|
SAE 10W40 API classification SL, SM or above
|
|
|||||||||
|
Intake valve opening
|
|
|
|
|
|
|
|
10°BTDC
|
|
|||||||||
|
Intake valve closing
|
|
|
|
|
|
|
|
45°ABDC
|
|
|||||||||
|
Exhaust valve opening
|
|
|
|
|
|
|
|
50°BBDC
|
|
|||||||||
|
Exhaust valve closing
|
|
|
|
|
|
|
|
0°ATDC
|
|
|||||||||
|
Gearbox
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Type
|
|
|
|
|
|
|
Dual range (HI-LO)with park, neutral and reverse
|
|
|
|||||||||
|
Gearbox oil
|
|
|
|
Capacity
|
|
|
400 ml
|
|
|
|||||||||
|
|
|
|
|
Recommended
|
|
|
XP-S chaincase oil
|
|
|
|||||||||
|
Trans-Ratio
|
|
|
|
|
|
|
High gear : 2.886
Low gear : 5.29 Reverse gear : 5.087 |
|
|
|||||||||
|
Rotating
|
|
|
|
|
|
|
Clockwise direction (in front of the rear shaft )
|
|
|
|||||||||
|
COOLING SYSTEM
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Coolant
|
|
|
|
|
|
Type
|
|
|
Ethyl glycol /water mix (50% coolant, 50% water). Use coolant specifically designed for aluminum engines.
|
|||||||||
|
|
|
|
|
|
|
Capacity
|
|
|
2.5 l
|
|||||||||
|
Thermostat
|
|
|
|
|
|
Opening temperature
|
|
|
65 ℃
|
|||||||||
|
ELECTRICAL SYSTEM
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Magneto generator output
|
|
|
|
|
|
|
|
|
420 W @ 6000RPM
|
|||||||||
|
Ignition system type
|
|
|
|
|
|
|
|
|
IDI (Inductive Discharge Ignition )
|
|||||||||
|
Ignition timing
|
|
|
|
|
|
|
|
|
Not adjustable
|
|||||||||
|
Spark plug
|
|
|
|
|
Quantity
|
|
|
|
2
|
|||||||||
|
|
|
|
|
|
Make and type
|
|
|
|
NGK DCPR7E
|
|||||||||
|
|
|
|
|
|
Gap
|
|
|
|
0.7---0.8 mm
|
|||||||||
|
Crankshaft position sensor (CPS)
|
|
|
|
|
|
|
|
|
774---946 Ω
|
|||||||||
|
Engine RPM limiter setting
|
|
|
|
|
Forward
|
|
|
|
8000 RPM
|
|||||||||
|
|
|
|
|
|
Reverse
|
|
|
|
3200 RPM
|
|||||||||
|
Battery
|
|
|
|
|
Type
|
|
|
|
Dry battery type
|
|||||||||
|
|
|
|
|
|
Voltage
|
|
|
|
12 volts
|
|||||||||
|
|
|
|
|
|
Nominal rating
|
|
|
|
47 A·h
|
|||||||||
|
|
|
|
|
|
Power starter output
|
|
|
|
0.7 kW
|
|||||||||
|
FUEL SYSTEM
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Fuel Delivery
|
|
|
Type
|
|
|
|
|
|
Electronic Fuel Injection ( EFI ) . Delorto 46 mm throttle body, 1injector per cylinder
|
|||||||||
|
Fuel pump
|
|
|
Type
|
|
|
|
|
|
Bosch
|
|||||||||
|
|
|
|
Model
|
|
|
|
|
|
Electrical (in fuel tank )
|
|||||||||
|
Fuel
|
|
|
Type
|
|
|
|
|
|
Regular unleaded gasoline
|
|||||||||
|
|
|
|
Octane no.
|
|
|
|
|
|
93 or higher (R+M)/2
|
|||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
