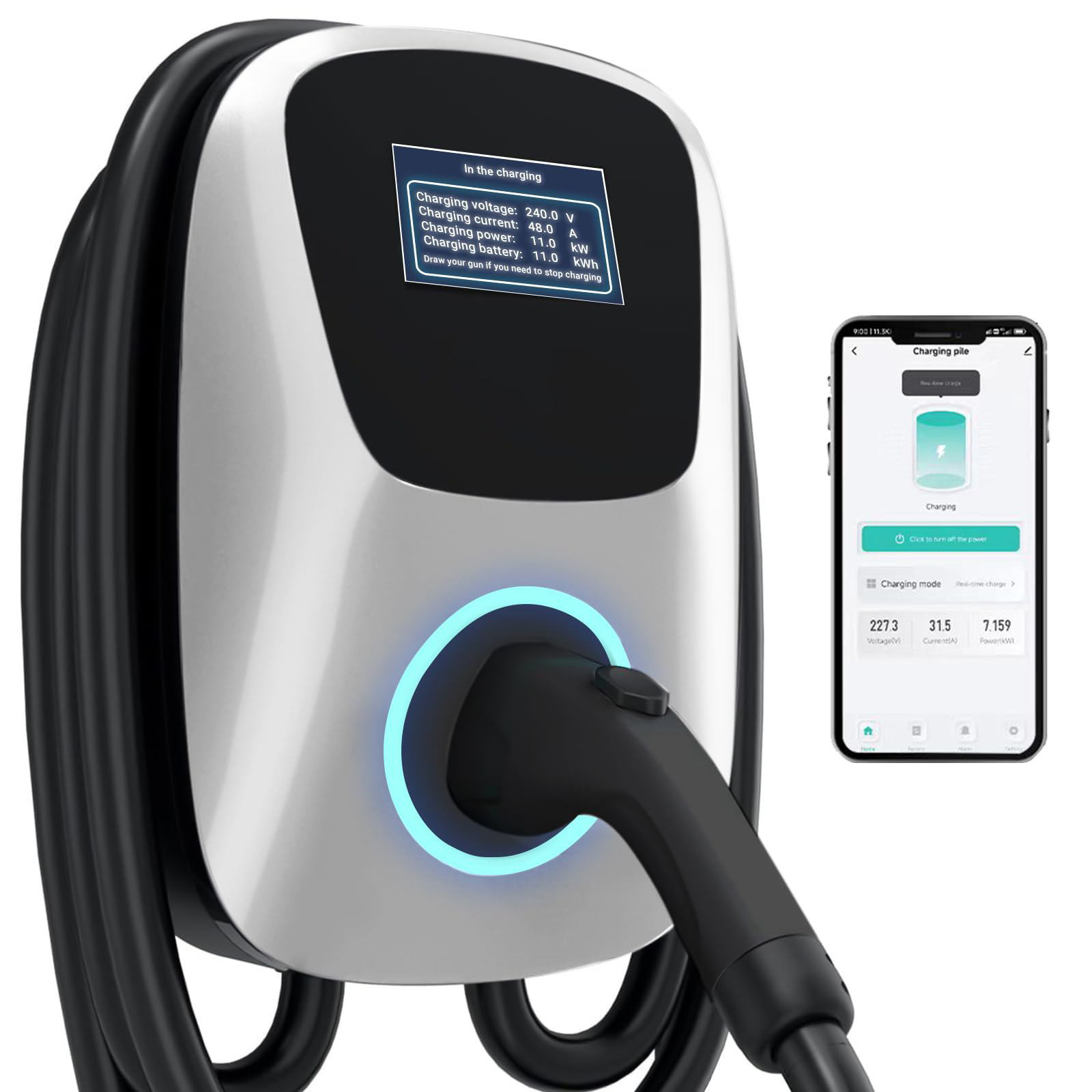

Home Electric Vehicle (EV) Charger up to 48 Amp 240V 380V Level 2 Level 3 WiFi and Bluetooth Enabled EVSE Hardwired

Home Electric Vehicle (EV) Charger up to 48 Amp 240V 380V Level 2 Level 3 WiFi and Bluetooth Enabled EVSE Hardwired

FOB Reference Price: Get Latest Price

≥2 Pieces

US $185

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Input Voltage:: 220-240vac

Product name:: JX1

Application:: Charging Electric Car Charging

Rated Current:: 16A/32A/40A/48A

Certificate:: CE ETL FCC

Warranty:: 24 Months

Cable Length:: 5m(Customizable)

Connectors:: Type2/Type1

Color:: Matte Black

Connector:: IEC62196-2/SAE J1772

Quick Details

Place of Origin:: Hunan, China

Brand Name:: JX

Output Power:: 7KW/11KW/22KW, 7KW/9.6KW/11KW/22KW Optional

Input Voltage:: 220-240vac

Product name:: JX1

Application:: Charging Electric Car Charging

Rated Current:: 16A/32A/40A/48A

Certificate:: CE ETL FCC

Warranty:: 24 Months

Cable Length:: 5m(Customizable)

Connectors:: Type2/Type1

Color:: Matte Black

Connector:: IEC62196-2/SAE J1772

Product Technology

Variety of options
The charger has a wide range of current options, different models/years of cars have different charging currents, so please check the AC current of your car before purchasing the corresponding model, and with different plugs you can use it in any situation. Tesla needs to use a separate adapter
Portability and easy operation
Keep the charger on the car for charging on the way, view real-time charging data on the huge LCD screen on the charger and switch the button to switch the current according to the circuit
More Protection
Our EV charger adopts High Strength ABS material, which has better quality and high durability. Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, waterproof rating of IP54 and other safety protection measures. They can secure your car charging.
LED Indicator and Smart Proximity Card

LED indicator helps you know the charging station's working status, to solve problems timely and protect your vehicle. Unique smart swipe charging design, simply swipe the smart card to start or stop charging. And effectively prevent people from stealing your power. Note: It will stop automatically when fully charged, or you swipe the card again to finish.
Warranty
24-month warranty and 7x24-hour friendly customer service to ensure your shopping experience. No need to pay extra payment for warranty service and save a lot of money! If you have any problems with the EV charger, please feel free to contact us directly.

Product Introduction

1.Various Charging Modes

Automatic Charging/Fixed Charging/Time Charging/Price Charging,etc.Various Authorization Modes with

Plug and Charge/RIFD Card Charging/Reservation Charging/ Code Scanning Charging,etc.

2.APP Control

This is an APP wall-mounted EV charger and suitable for home use. The APP could show current, consumption and other detailed
charging parameters.

3.Large LCD

Three color Indicator Light, Large LCD to display all the car's data on the charging station during charging. You can see the state of charge, including

current, voltage and temperature.

4.2Year Warranty

If there's any issue with the product, please contact our service team. Satisfactory

solutions are promised.

Our Advantages

Manufacturing Technique

Why Choose Us

We are a company dedicated to selling high quality and efficient electric vehicle charging stations. We have 6000 square feet and a powerful manufacturing plant with 300 people. We have many patented technologies and our products have passed various certifications and are recognized by authorities to provide safe and reliable charging services.

Our electric vehicle charging stations adopt the latest technology and can adapt to different models of electric vehicles, providing fast, safe and convenient charging services, and can be customized with various parameters and functions.

We have a professional technical team to provide installation and after-sales service to ensure a smooth and comfortable charging experience. Our services cover various scenarios such as homes, shopping malls, parking lots and roads, with up to 2-year maintenance guarantee, providing a comprehensive charging solution no matter where you are.

FAQ

Is the entire unit UL ETL CE rated?

Conformity to UL 2594，UL 2231-1， UL 2231-2 ， GB/T20234，GB/T18487，NB/T33008.2，NB/T33002 ，IEC/EN 61851-1，IEC/EN 61851-22

Is this compatible with my car?

works with all electric and plug-in hybrid vehicles.

Exclusive regional distribution rights?

We can sign a separate agreement that will guarantee that your brand will not be used by anyone else.

Does it have to use hardwire? Our products can also be connected to home sockets

How long does it take to create a separate look and logo?

We will follow your design requirements. Make the model. When you confirm it well, pay the production fee. Then we will courier to your country

Product Paramenters


Operating Voltage	220Vac(CN)/240Vac(US)/380Vac(CN,EU)±20%
Operating frequency	50/60Hz±1Hz
Product Power	7kW/9.6KW/11KW/22KW
Operating current	32A/40A/48A/32A
Communication method	☑RFID ☑Wifi☑4G☑Ethernet
Gun line length	3.5M/5M/7M
Operating temperature	-25~+45℃
Operating humidity	5%~95%RH
Altitude	<2000M
Protection level	IP54
Product weight	<5KG
Mounting method	Wall-mounted, column-mounted
Connector Type	☑GB/T 20234.2 ☑SAE J1772 ☑IEC 62196
Safety Standards	☑GB/T20234，GB/T18487，NB/T33008.2，NB/T33002 ☑UL 2594 ☑IEC/EN 61851-1，IEC/EN 61851-22
