Quick Details
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Application:
-
Wood Cutting
-
Weight (KG):
-
1500 KG
-
Max.Working Width(mm):
-
1600 mm
-
Weight:
-
650kg - 1400kg
-
Name:
-
bandsaw sawmill with electric and diesel engine
-
Max. wood diameter:
-
650mm - 1600mm
-
Band wheel diameter:
-
500mm - 700mm
-
Main Motor power:
-
7.5 kw - 18.5 kw
-
Rail length (standard model):
-
5900mm
-
Keywords:
-
portable horizontal bandsaw sawmill
-
type:
-
gasoline, diesel and electric
-
Service:
-
we can add tires
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO9001-2008
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sawmillworld
-
Usage:
-
cutting wood
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Application:
-
Wood Cutting
-
Weight (KG):
-
1500 KG
-
Max.Working Width(mm):
-
1600 mm
-
Weight:
-
650kg - 1400kg
-
Name:
-
bandsaw sawmill with electric and diesel engine
-
Max. wood diameter:
-
650mm - 1600mm
-
Band wheel diameter:
-
500mm - 700mm
-
Main Motor power:
-
7.5 kw - 18.5 kw
-
Rail length (standard model):
-
5900mm
-
Keywords:
-
portable horizontal bandsaw sawmill
-
type:
-
gasoline, diesel and electric
-
Service:
-
we can add tires
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO9001-2008
Product Description

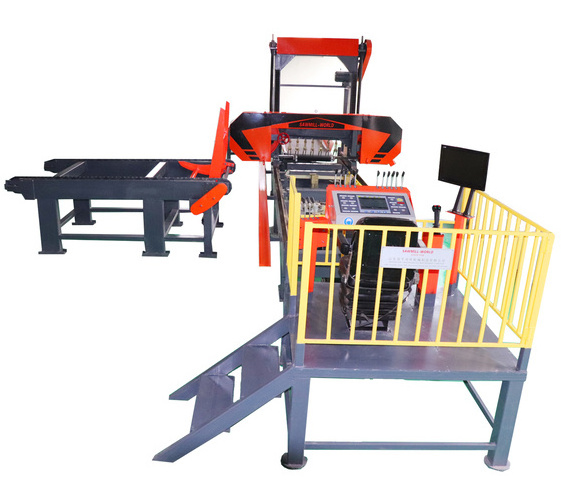

Hydraulic Horizontal Band Sawmill
The engine can be electric, diesel or gasoline engine.
|
Model
|
MJH700E
|
MJH1000E
|
MJH1300E
|
|
Max Sawing Wood Diameter
|
700mm
|
1000mm
|
1300mm
|
|
Saw Wheel Diameter
|
700mm
|
700mm
|
700mm
|
|
Max Sawing Wood Thickness
|
300mm
|
300mm
|
300mm
|
|
Electric Motor Power
|
22kw
|
30kw
|
30kw
|
|
Up/Down Electric Motor
|
1.5kw
|
1.5kw
|
1.5kw
|
|
Forward/backward Electric Motor
|
2.2kw
|
2.2kw
|
2.2kw
|
|
Saw Blade Width
|
27mm-75mm
|
27mm-75mm
|
27mm-75mm
|
|
Blade Tension
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|
Machine Length
|
5800mm
|
5800mm
|
5800mm
|
Hydraulic Log Loading Machine
We can customize it as your wood size.
Belt Conveyor
Undertake the finished board
Roller Board Conveyor
It can transfer the board to change the delivery directly.
Labor saving.
Control Center
Press the button
Input the size on the touching screen
Easy operation
Wood Clamping+ Log Support
Return Board
Log Stopper
Prevent wood from falling
Chain Type Log Rotator
Turn over the wood easily.
