Quick Details
-
Brand Name:
-
XUANCAI
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Efficiency(lm/w):
-
110-120LM/W
-
Lamp Luminous Flux(lm):
-
1100LM
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Type:
-

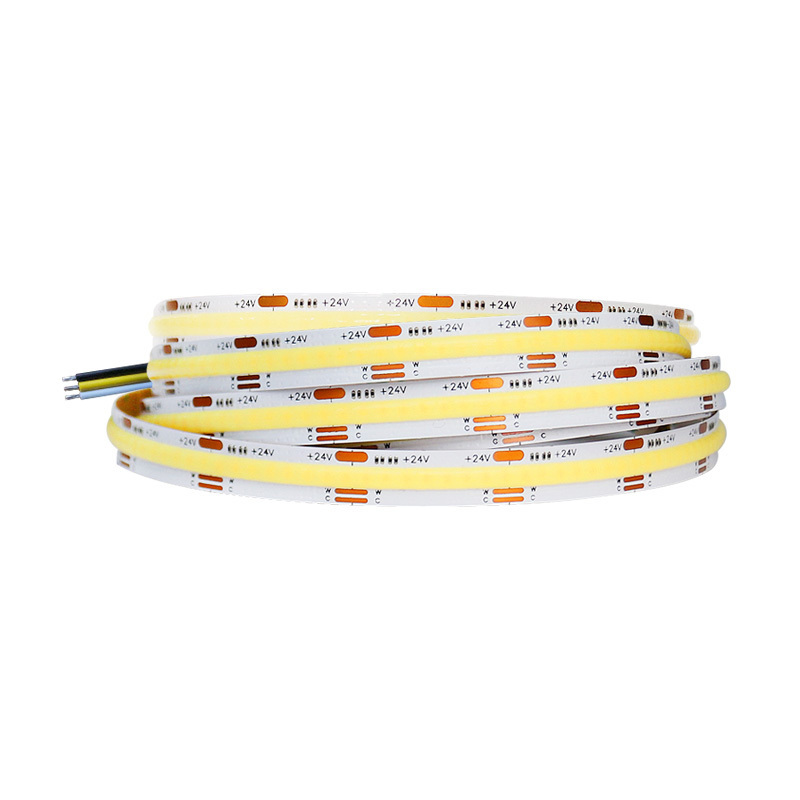

Tunable Flexible Cob Led Strip
-
PCB Width:
-
10MM
-
Color Temperature:
-
2700-6500K
-
Wattas:
-
10W +10W
-
Voltage:
-
DC24V
-
Luminous efficiency:
-
100-120LM/W
-
CRI:
-
>90
-
Warranty:
-
3 Years
-
Switch Mode:
-
Remote Control/ Button/ Wifi/ Amazon Axela/ Google Assistant
Quick Details
-
Color Temperature(CCT):
-
White
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Sensor control, Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUANCAI
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Efficiency(lm/w):
-
110-120LM/W
-
Lamp Luminous Flux(lm):
-
1100LM
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Type:
-
Tunable Flexible Cob Led Strip
-
PCB Width:
-
10MM
-
Color Temperature:
-
2700-6500K
-
Wattas:
-
10W +10W
-
Voltage:
-
DC24V
-
Luminous efficiency:
-
100-120LM/W
-
CRI:
-
>90
-
Warranty:
-
3 Years
-
Switch Mode:
-
Remote Control/ Button/ Wifi/ Amazon Axela/ Google Assistant
Specification
Product Information
|
|
|
Board width
|
10MM
|
|
Power
|
20W/Meter
|
|
Voltage
|
DC24V/DC12V
|
|
Rolls
|
5M/Roll
|
|
Luminous intensity
|
110-120LM/W
|
|
Chip Material
|
InGaN
|
|
CRI
|
>90
|
|
Color Temperature(K)
|
2700-6500K
|
COB Strip Parameters:
Input Voltage: DC 12V/24V
Input Interface: Black Yellow White Wire, black for "+",
Support CCT color temperature and brightness adjustment
Wattage: 10W+10W/M, Total 20W/M
Strip Width: 10mm
LED quantity: 576 LEDs/Meter
Minimum cut length: every 27.8mm
Color Rendering Index: Ra>90
Operation temperature: -20℃-+45℃
Storage temperature: -40℃-+85℃
Beam angle: 180°
Waterproof Level: IP20, not waterproof
Input Voltage: DC 12V/24V
Input Interface: Black Yellow White Wire, black for "+",
Support CCT color temperature and brightness adjustment
Wattage: 10W+10W/M, Total 20W/M
Strip Width: 10mm
LED quantity: 576 LEDs/Meter
Minimum cut length: every 27.8mm
Color Rendering Index: Ra>90
Operation temperature: -20℃-+45℃
Storage temperature: -40℃-+85℃
Beam angle: 180°
Waterproof Level: IP20, not waterproof
Product Paramenters
Latest LED COB technology, provide high density light without light spot. Much better than SMD LED
The plane graph of RGB COB LED Strip
Installation Instructions
You can cut according to the position of the solder pad's scissors mouth. The back of the cob strip has 3M Adhesive tape , it is easy to mount anywhere
Application
①Outdoor Lighting: Buildings, Advertising walls, Signs, Christmas decorations, Swimming pool, Park, Ice rinks
②Indoor Lighting: Polygonal wall, Ceiling groove design of hotel, Nightclub , KTV etc
③Home dark groove edge : Door frame, Bar, Wine cabinet, Wardrobe, TV cabinet...)
④Car beauty, Cabinet lights, Staircase lights, Wardrobe lights, Mirror lights, Frame lights, Advertising light boxes, Balance bikes
②Indoor Lighting: Polygonal wall, Ceiling groove design of hotel, Nightclub , KTV etc
③Home dark groove edge : Door frame, Bar, Wine cabinet, Wardrobe, TV cabinet...)
④Car beauty, Cabinet lights, Staircase lights, Wardrobe lights, Mirror lights, Frame lights, Advertising light boxes, Balance bikes
