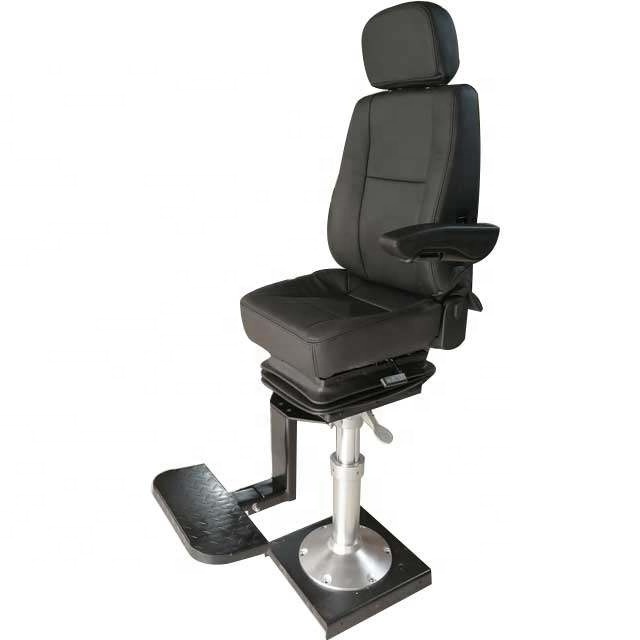

Marine Pilot/Captain/Helmsman Chairs is designed ergonomic, durability and comfortable to sit on it. The seat cover is leather and it has an aluminium frame. With special manul facturing, it is suitable for all kinds of luxury passenger ships, yachts, and so on. The seat can move on the double-sliding rail. The backrest of seat is angle-adjustable. Armrest can be adjusted and foldable . The height of seat can be adjusted freely. There is a seat security locking handle to ensure safety.
- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Customers' Requirments
-
Application:
-
Ship
-
Type:
-
Pilot Chair Seat
-
Product Name:
-
Marine Fixed Type Helmsman Capstan Pilot Chair Seats for Sale
-
Certificate:
-
Classification Society Certificate
-
Name:
-
Marine Fixed Type Captain Pilot Chair Seats for Sale
-
Packing:
-
Carton Wooden Case
-
Usage:
-
Pilot Chair Seats
-
Size:
-
Customized Size
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
YUSHUO
-
Material:
-
Aluminum
-
Color:
-
Customers' Requirments
-
Application:
-
Ship
-
Type:
-
Pilot Chair Seat
-
Product Name:
-
Marine Fixed Type Helmsman Capstan Pilot Chair Seats for Sale
-
Certificate:
-
Classification Society Certificate
-
Name:
-
Marine Fixed Type Captain Pilot Chair Seats for Sale
-
Packing:
-
Carton Wooden Case
-
Usage:
-
Pilot Chair Seats
-
Size:
-
Customized Size
Product Description
Technical Parameters
|
Material
1.Lifting column with Aluminum alloy and stainless steel synthesis; 2.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure; 3. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth; 4. Pedal steel plate inner core and environmentally friendly rubber synthetic; 5. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus; Function data 1. Upper part of the seat can be moved back and forth of 120mm,height adjustment 60mm, seat inclination angle range of ±12°; 2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control; 3. The seat of pneumatic lifting regulating range 0-120mm； 4.The seat can rotate 360°and locked ,4-point positioning control; 5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm; 6.Seat can bear more than 150FT.LB torsion, reached AD grade standard; Function: 1.Ergonomic design; 2.Adjustable backrest and headrest; 3.Seat height may be angle adjusted; 4.Seats can be moved back and forth; 5.Folding / angle-adjustable comfortable seat armrest; 6.Seat can rotated 360 degrees, multi-point positioning; 7.Foot pedal height adjustable / folding; 8.Column can be vertically lifting; |
