Quick Details
-
Model Number:
-
GJ
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~70
-
Max. Current:
-
5A
-
Type:
-
GJ-1;GJ-3
-
Rated current:
-
5 A
-
Weight of Hammer:
-
≥1.7kg
-
Power Supply:
-
12-380V
-
Certificate:
-
CE&CCS
-
Warranty:
-
12 Months
-
Delivery time:
-
5 working days
-
Application:
-
terex&kobelco&kato cranes
-
Model:
-
GJ-1
-
Brand:
-
wtau
Quick Details
-
Max. Voltage:
-
12-380V
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
WTAU
-
Model Number:
-
GJ
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-20~70
-
Max. Current:
-
5A
-
Type:
-
GJ-1;GJ-3
-
Rated current:
-
5 A
-
Weight of Hammer:
-
≥1.7kg
-
Power Supply:
-
12-380V
-
Certificate:
-
CE&CCS
-
Warranty:
-
12 Months
-
Delivery time:
-
5 working days
-
Application:
-
terex&kobelco&kato cranes
-
Model:
-
GJ-1
-
Brand:
-
wtau

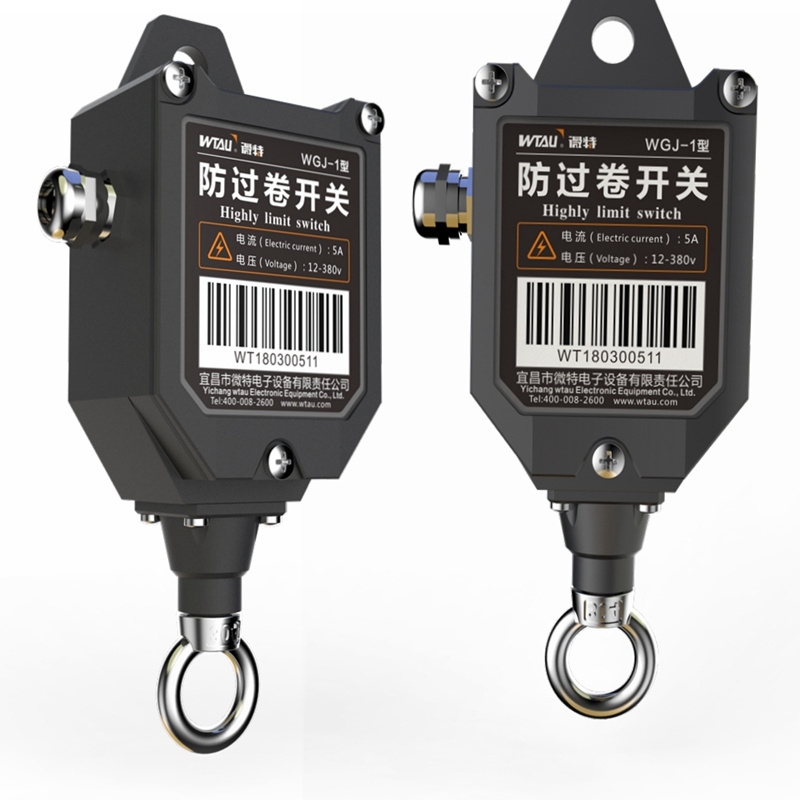

GJ-type Limit Switch (hook limit switch) is used for lifting wire rope anti-volume limit an electrical automatic protection switch. It is an appropriate weight of the hammer supporting the use of hook up and down movement to hold up or disconnect or turn-on switch, put down the hammer to achieve the purpose of automatically cut off the hoist power supply connected braking system to limit rope over volume, and reach hook in the purpose of a certain height within the lift.
Core advantages
1. Reliable and durable
Zinc alloy casting, compact structure, dustproof and waterproof grade up to IP66; selected high-quality accessories
2. Adjustable status
The normally open and normally closed state of the switch can be adjusted on site and can be used to control the lifting height of various types of hooks.
3. Easy to install
The installation is simple. Over the years, many users have given good feedback on self-installation and self-resetting and reinstallation.
|
GJ-1 |
to reach the peak normally open ( hook across the boom, loop disconnect) |
|
GJ-3 |
to reach the peak normally closed (hook met crane, closed loop) |
|
applies to DC and AC voltage |
12 ~ 380V; |
|
Rated current |
5A |
|
rated current |
10A |
|
supporting the external hammer weight |
≥ 1.7kg |
