- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minglei
-
Model Number:
-
ML-TH70S
-
Product name:
-

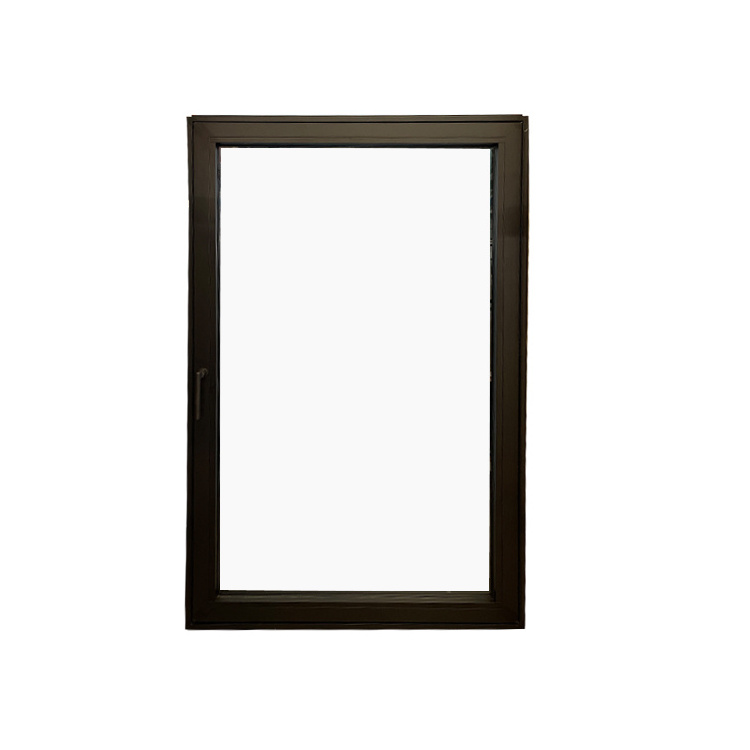

Hangzhou Minglei passive house windows
-
Opening style:
-
Casement, tilt& turn, awning, sliding, pivot
-
Surface treatment:
-
Power Coating, Anodized, Fluorocarbon paint, electrophoresis
-
Color:
-
white, grey, Champagne, brown, bronze,silver, wood grain, RAL color
-
Profile thickness:
-
1.4mm-3.5mm, as per customer requirements
-
Glass Type:
-
Single\double\tempered\tinted\low-e\reflective
-
Hardware:
-
Domestic system or Germany system
-
Seal & strip & Silicone:
-
Germnay originally imported Rubber sealing strip
-
Harmonized Standard:
-
ISO9001, CE, AS2047, AAMA/WDMA
Quick Details
-
Frame Material:
-
Aluminum Alloy
-
Feature:
-
Magnetic Screen, Folding Screen
-
Function:
-
Heat Insulation
-
Application:
-
Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Minglei
-
Model Number:
-
ML-TH70S
-
Product name:
-
Hangzhou Minglei passive house windows
-
Opening style:
-
Casement, tilt& turn, awning, sliding, pivot
-
Surface treatment:
-
Power Coating, Anodized, Fluorocarbon paint, electrophoresis
-
Color:
-
white, grey, Champagne, brown, bronze,silver, wood grain, RAL color
-
Profile thickness:
-
1.4mm-3.5mm, as per customer requirements
-
Glass Type:
-
Single\double\tempered\tinted\low-e\reflective
-
Hardware:
-
Domestic system or Germany system
-
Seal & strip & Silicone:
-
Germnay originally imported Rubber sealing strip
-
Harmonized Standard:
-
ISO9001, CE, AS2047, AAMA/WDMA
Product details
|
1. Profile
|
6063-T5 Thermal break aluminum alloy
|
|
|
||
|
2. Profile brand
|
Germany Schuco system, Domestic system
|
|
|
||
|
3. Surface finish
|
Powder coating, Anodized, Woodgrain transfer, Elestrophoresis, Fluorocarbon paint.
|
|
|
||
|
4. Profile thickness
|
1.6 mm-3.0mm,
|
|
|
||
|
5. Glass option
|
Double insulated glass
: 5mm/6mm+12A/15A+6mm, warm edge spacer low-e & argon gas optional
Triple insulated glass
: 5mm+ 9A/12A/15A/18A+5mm+ 9A/12A/15A/18A+5mm, warm edge spacer low-e & argon gas optional
Laminated insulated glass : 5mm+ 0.76PVB/ 1.14PVB+5mm+12A+5mm, clear, tinted, reflective, tempered optional |
|
|
||
|
7. Hardware
|
Germany imported Schuco brand, Siegenia, G-U, Hoppe, Italy Giesse, Sonbinco
|
|
|
||
|
8. Seal & strip
|
Germany Orginally imported EPDM Rubber sealing strip, black or grey color
|
|
|
||
|
9. Screen optional
|
Nylon/fiberglass mesh material, Stainless steel mesh screen etc
|
|
|
||
Domestic system thermal insulation aluminum window
ML 70 series high thermal insulation
ML 75 series high thermal insulation
ML101 Series Passive house max insulation
|
Product performance
|
ML101 Series
|
ML 75 series
|
ML 70 series
|
|
European U-Value (Metric/SI)
|
0.79 W/(m²K)
|
1.3 W/(m²K)
|
1.4 W/(m²K)
|
|
American U factor (U.S./I-P)
|
0.14
|
0.23
|
0.24
|
|
Rw (dB)
|
40
|
38
|
38
|
|
Wind load resistance (Pa)
|
≥ 5000 Pa
|
≥ 5000 Pa
|
≥ 5000 Pa
|
|
Water tightness (Pa)
|
≥ 700 Pa
|
≥ 700 Pa
|
≥ 700 Pa
|
|
Air infiltration/exfiltration
|
q1≤0.26m³/(m·h);
|
q1≤ 0.36m³/(m·h); q2≤ 0.71m³/m²·h)
|
q1≤ 0.42m³/(m·h); q2≤ 0.77m³/m²·h)
|
For years, Aluminum window have been specified by architects and builders for their overall strength and lasting value. Because of their rigidity, durability and narrow frames, aluminum windows can be configured into a wide variety of combinations that maximize views. Aluminum windows also are popular because of their low maintenance. They won't rust or rot. You don't have to paint them. And they're available with tough anodized or baked-on finishes.
Packing & Delivery
Related products
Our company
Hangzhou Minglei Industry Co., Ltd., which have been specialized in windows and doors for over a decade, exported to more than 30 countries, 70% of sales to the USA, Canada, Europe, and Australia markets. Based on advanced & exquisite manufacturing technique, and abundant product application and service experience, We can offer extensive range of windows and doors products, which can meet EU CE and USA ASTM standards on windows & doors technologies.
Minglei endeavor to supply superior quality and innovative windows and doors to meet every client's needs and expectation with timely delivery.
Adhering to the customer-centric business philosophy,quality first principle, Minglei will always be your reliable supplier and business partner you can do trust.
Certifications
Minglei Show Case
FAQ
Q: Are you a trading company or a manufacturer ?
A: We are manufacturer and have our own trading company, which engaged in high quality windows & doors manufacturing for domestic & abroad market.
Q: What is your lead time?
A: 20-35 days upon of deposit received and shop drawing confirmed (We arrange shop drawing before manufacturing to double confirm all the windows details).
Q: What is the standard size and design of your windows and doors?
A: As windows and doors are customized products. we manufacture according to your specific demension special requirements .
And we also have engineers to give improvement suggestions.
Q: What about your window systems ?
A: We use Germany high insulation system with thermal break technology.
Q: Will we need to install the glass (onsite glazed) or do your windows come with the glass installed?
A: We will install glass at factory based on windows/doors dimension to make sure they can be safe during transportation
and it is easy for our buyer to install the whole windows/doors.
Onsite glazed are recommended for big sized products.
Q: Do you know what is a U-Factor/Value?
The U-factor/Value measures how well a fenestration product prevents heat from escaping a home or building.
The lower the U-Factor/Value is, the better a product is at keeping heat inside the building, thus is a better insulator.
The most energy efficient window we made is Germany PHI certified passive housing standard window and door, which Uw is 0.79 W/ m2* K(metric), turns to U factor is 0.14 ( imperial).
Q: What is Solar Heat Gain Coefficients?
That measures the fraction of solar energy transmitted and tells you how well the product blocks heat coming into the house caused by sunlight.
SHGC is measured on a scale of 0 to 1; values typically range from 0.25 to 0.80.
The lower the SHGC, the more a product is blocking solar heat gain. Blocking solar heat gain is particularly important during the summer season in warmer climates.
By contrast, people in cooler climates may want solar heat gain during the cold winter months to lessen the cost of heating the home.
Q: What is your warranty ? What do we do in case of problems?
A: 10 years quality warranty is provided, including frame unfading or peel-off, hardware and accessories working properly under correct operation.
10 years warranty for German hardware. In case of our quality problem, we will provide replacement by international courier.
Immediate delivery of replacement parts with available in stock,
and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
Q: What kind of service can I get from you?
A: We are able to provide the engineering as well as supervising service to guide installation our windows and doors.
