Quick Details
-
Model Number:
-
SC768/760/777/791/792/767/769/778
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000
-
Function:
-
ON-ON/ON-OFF/ON-OFF-ON/with lamp/Reset
-
Material of Contact:
-
Ag
-
Housing color:
-
Black/White/Green...
-
Pins:
-
Quick-connect
-
Operating temperature:
-
0~125°C
-
Material of Terminal:
-
Copper Alloy
-
Protection type:
-
IP20
-
Insulation Resistance:
-
>100M Ω
-
Actuator:
-
Arc button/arc button with point light/rocker button
-
Application:
-
coffee machine/stirrer/oven
Quick Details
-
Max. Voltage:
-
125VAC/250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Baokezhen
-
Model Number:
-
SC768/760/777/791/792/767/769/778
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000
-
Function:
-
ON-ON/ON-OFF/ON-OFF-ON/with lamp/Reset
-
Material of Contact:
-
Ag
-
Housing color:
-
Black/White/Green...
-
Pins:
-
Quick-connect
-
Operating temperature:
-
0~125°C
-
Material of Terminal:
-
Copper Alloy
-
Protection type:
-
IP20
-
Insulation Resistance:
-
>100M Ω
-
Actuator:
-
Arc button/arc button with point light/rocker button
-
Application:
-
coffee machine/stirrer/oven
Product Description

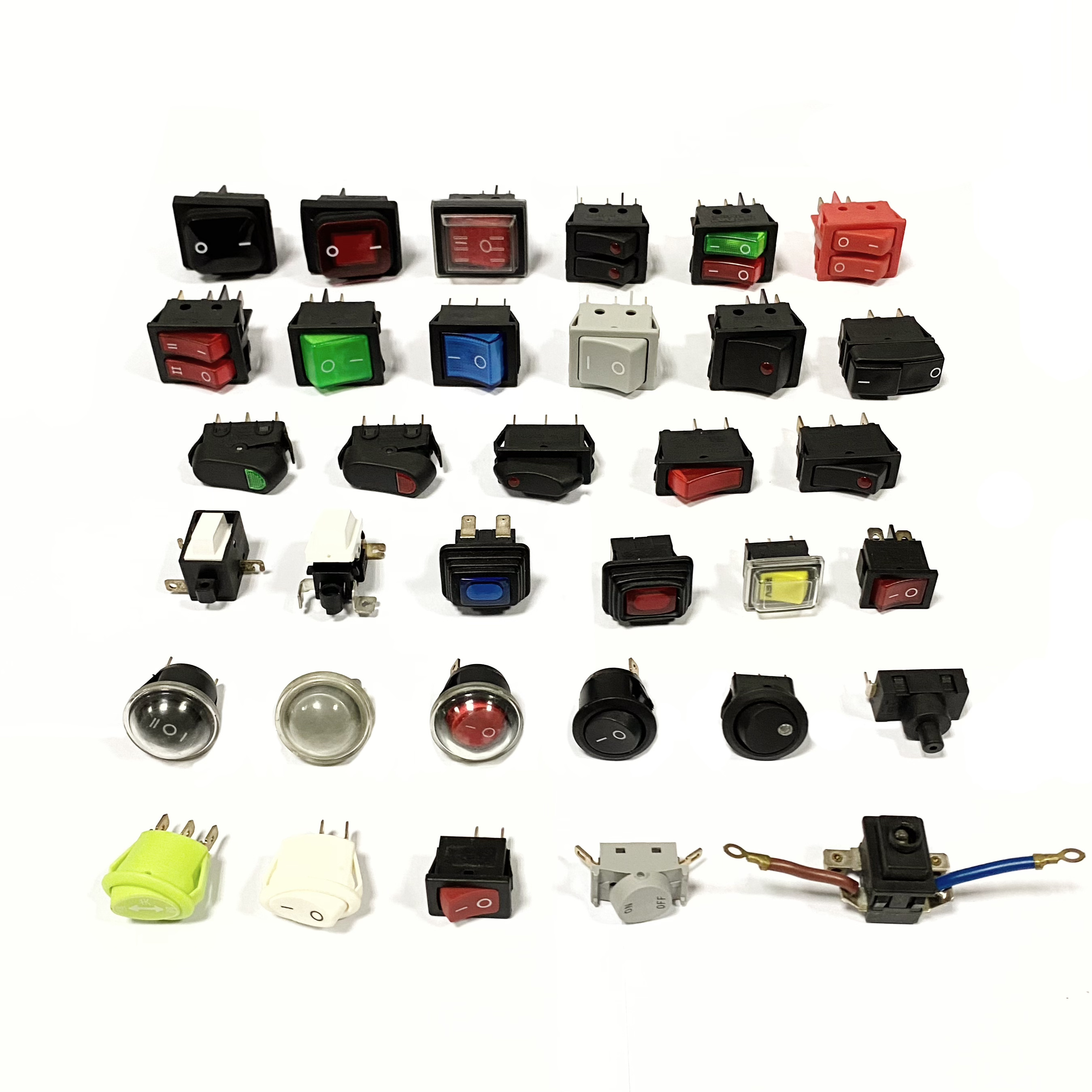

Baokezhen Electrical LED illuminated 6A/10A/16A 125V/250V 2/3/4/6 Pin ON-OFF ON-OFF-ON 2/3 Position Boat Switch Rocker switch
Excellent touch switches,long service life
Used in home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment.
Used in home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment.
SC768 Rocker Switch
6(1)A 250VAC T85 10(4)A 250VAC T105/5515A 125VAC T85 6(4)A 250VAC T105/55
SC760 Rocker Switch
6A 125VAC 3A 250VAC
6(3)A,10(3)A,16A 250VAC T90/55
SC777 Rocker Switch
6A 12A 16A 125VAC /250VAC
12(4)A 250VAC T90/55
SC778 Rocker Switch
10A 125VAC 6A 250VAC
6(2)A 250VAC T85/55
Specification
|
Product Name
|
Electrical tools LED illuminated 6A/10A/16A 125V/250V Rocker switch push button switch ON-OFF/ON-ON/ON-OFF-ON rocker switches
|
|
Electrical Rating
|
6A/7A/10A/16A 125/250VAC
|
|
Contact Resistance
|
≦20mΩ
|
|
Insulation Resistance
|
>100mΩ
|
|
Electric life
|
10000 circles
|
|
Mechanical life
|
50000 circles
|
|
Brand
|
Baokezhen
|
|
Temperature Range
|
0°C....+85°C
|
|
Certification
|
CQC UL SMEKO CB KEMA LFGB VDE
|
|
Used
|
oven coffee maker hair drier stirrer power strip,etc
|
|
Heat and fire resistance
|
850°C
|
|
Flammablility
|
UL94V-0
|
