Quick Details
-
Voltage:
-
220V/380V, 380V / 220V
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Y-F
-
Dimension(L*W*H):
-
170*94*175mm
-
Weight:
-
360 KG
-
Certification:
-
CE
-
Product name:
-
Automatic Side Sealing Shrink Wrap Machine
-
Keyword:
-
Heat Shrink Tunnel Packing Side Sealer
-
Function:
-
Cutting And Sealing Shrinking
-
Packing material:
-
POF/PVC/PP/PE
-
Max shrink size:
-
200*95*40mm
-
Max sealing size:
-
Width 95mm,length:unlimit
-
Advantage:
-
Meet Wrapping Technical Requestments
-
Transfer speed:
-
0-10m/min
-
Customize:
-
Provide
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V, 380V / 220V
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Y-F
-
Dimension(L*W*H):
-
170*94*175mm
-
Weight:
-
360 KG
-
Certification:
-
CE
-
Product name:
-
Automatic Side Sealing Shrink Wrap Machine
-
Keyword:
-
Heat Shrink Tunnel Packing Side Sealer
-
Function:
-
Cutting And Sealing Shrinking
-
Packing material:
-
POF/PVC/PP/PE
-
Max shrink size:
-
200*95*40mm
-
Max sealing size:
-
Width 95mm,length:unlimit
-
Advantage:
-
Meet Wrapping Technical Requestments
-
Transfer speed:
-
0-10m/min
-
Customize:
-
Provide
Product Description

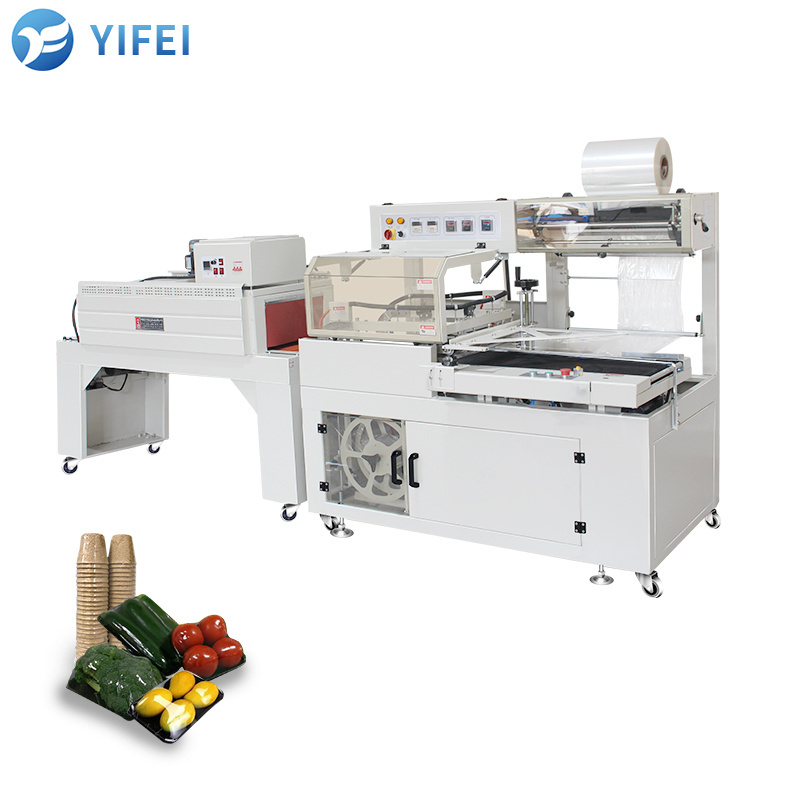

Automatic film side sealing and cutting machine
heat shrinking machine
1>
Unlimited product length such as industry tube.
2>
S
uitable for packaging slightly higher products,c
osmetic medicine box and so on.
|
Sealer and cutter parameter
|
|
|
|
Product Type
|
450LA
|
|
|
Voltage
|
220V 50HZ/60HZ
|
|
|
Max Packaging height
|
15cm
|
|
|
Power
|
1.5KW
|
|
|
Sealing dimension
|
length: unlimit
width:45cm
|
|
|
Machine dimension
|
170*94*145cm
|
|
|
Packing speed
|
15m/min
|
|
|
Weigth
|
310kg
|
|
|
Heat shrinker parameter
|
|
|
|
Product Type
|
BS-4522
|
|
|
Package size
|
150*45*22cm
|
|
|
Machine size
|
190*70*138cm
|
|
|
Shrinkage transfer speed
|
0-10m/min
|
|
|
Voltage
|
380V
|
|
|
Power
|
12KW
|
|
|
Load
|
30kg
|
|
|
Machine Weight
|
140kg
|
|
The length is not limited, and objects with large length can be packing shrink.
A wide range of applications: packaging electronic components, hardware books, drugs, printed matter, color boxes, greeting cards,food and beverage, textiles, cosmetics, cups, tea, etc. Sealing and cutting.
Sample
Product Details
Side sealer and cutter details
High quality alloy cutter
The sealing and cutting knife adopts imported DuPont Teflon coating, anti adhesion and high temperature resistant alloy knife.
knife height adjustment
Turn the hand wheel to adjust the longitudinal knife opening height.
Pneumatic device
The gas reaches here through the gas nozzle to control the automatic sealing and cutting of the cutter.
Safe use of protective cover / alarm device
The sealing and cutting part is equipped with glass protective cover and self alarm function for safe use.
Imported photoelectric induction
Automatic detection of products to ensure accurate sealing and cutting positioning.
Simple intelligent control panel
Rich functions and more intelligent. Adopts international brand electrical components such as Omron.
Heat shrinker details
Air jet constant temperature heat shrinkable
Adopts heat dissipation pipe heating and high-speed hot air circulation. It has good shrinkage effect. It is suitable for PVC, POF, PP and other shrinkable films, especially POF shrinkable films.
Control panel
The operation is simple and easy to understand, with speed regulation function. Press the emergency stop button to stop the machine.
High power fan
With high-power motor and strong wind force, hot air circulation is formed in the furnace.
Adopt new roller
The outer cover is made of silica gel, resistant to high temperature, high temperature, wear resistance, no scalding film and deformation, and can be used for a long time.
