LGCM Mini Wheel Loader 1.5 Ton Wheel Loader Diesel Engine Yangdong Engine

LGCM Mini Wheel Loader 1.5 Ton Wheel Loader Diesel Engine Yangdong Engine

FOB Reference Price: Get Latest Price

≥1 Sets

US $25100

≥2 Sets

US $25000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 7200*2400*3300 mm

Machine Weight:: 9300 kg

Bucket capacity:: 1.8 cbm

Marketing Type:: New Product 2023

Load capacity:: 3000kgs

engine power:: 92kw

Number of cylinder:: 6

max speed:: 35km/h

dumping height:: 3800mm

dumping reach:: 1420mm

overall weight:: 9300kg

maximum tractive force:: 80KN

maximum breakout force:: at least 110KN

maximum grade ability:: 30℃

Quick Details

Engine Brand:: WEICHAI

Power:: 92 KW

Brand Name:: Laigong

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 7200*2400*3300 mm

Machine Weight:: 9300 kg

Bucket capacity:: 1.8 cbm

Marketing Type:: New Product 2023

Load capacity:: 3000kgs

engine power:: 92kw

Number of cylinder:: 6

max speed:: 35km/h

dumping height:: 3800mm

dumping reach:: 1420mm

overall weight:: 9300kg

maximum tractive force:: 80KN

maximum breakout force:: at least 110KN

maximum grade ability:: 30℃

With optimised design, Laigong loader has reasonable structure configuration, easy maintenance, light and flexible operation, large turning angle, which is more suitable for narrow lot operation, labour-saving and high efficiency.

Product Description

Model	LG939	LG946	LGE36	LGE56	LGE68
Operating weight(kg）	6000	9300	9300	16500	19800
Length（mm)	6740	7200	7200	8085	8250
Width(mm)	2050	2400	2400	2950	3100
Height(mm)	2960	3300	3300	3450	3400
Wheel base(mm)	2810	3150	3150	3250	3350
Wheel track(mm)	1700	2100	2100	2250	2250
Tire size(size)	16/70-24	17.5-25	17.5-25	23.5-25	26.5-25
Max.travelling speed(km/h)	35	35	35	35	35
Loading weight(kg)	2500	3000	3000	5000	6000
Standard bucket capacity(m3)	1.1	1.7	1.8	3.0	3.3
Bucket width(mm)	2200	2400	2400	2400	2400
Dumping height(mm)	3600	3800	3800	3150	3350
Dumping reach(mm)	800	1200	1420	1250	1255
Max. lifting height(mm)	5400	5600	5600	5400	5600
Transmission type	Automatic					Automatic	Automatic	Automatic	Automatic
Control type(kw)	Hydraulic		Mechanical	Hydraulic			Hydraulic	Hydraulic
Engine	YUCHAI 4105 Turbo	DONGFANGHONG 6105T	WEICHAI WP6G125E22 Turbo	WEICHAI SteyrWD10G220E23 Turbo	Steyr WD10G240E21
Power(kw/ rpm)	85	92	105	126	126

Integrated gearbox and torque converter design could have shorter wheel base and radius of turning circle to adapt to various working conditions. Adopt double high-low speed system same as Laigong wheel loader to match the engine power precisely, raise the fuel use ratio and decrease the operation cost of customer.

Split gearbox is better in heat dissipation effect and convenient in maintenance and repair. The split gear box also adopts the double high-low speed system.

Reinforced swing arm, tank shelf and revolving platform guarantee stability and service life of working device.

High efficient cooling system for smooth operation under high temperature status.

Wheel-loader Accessories

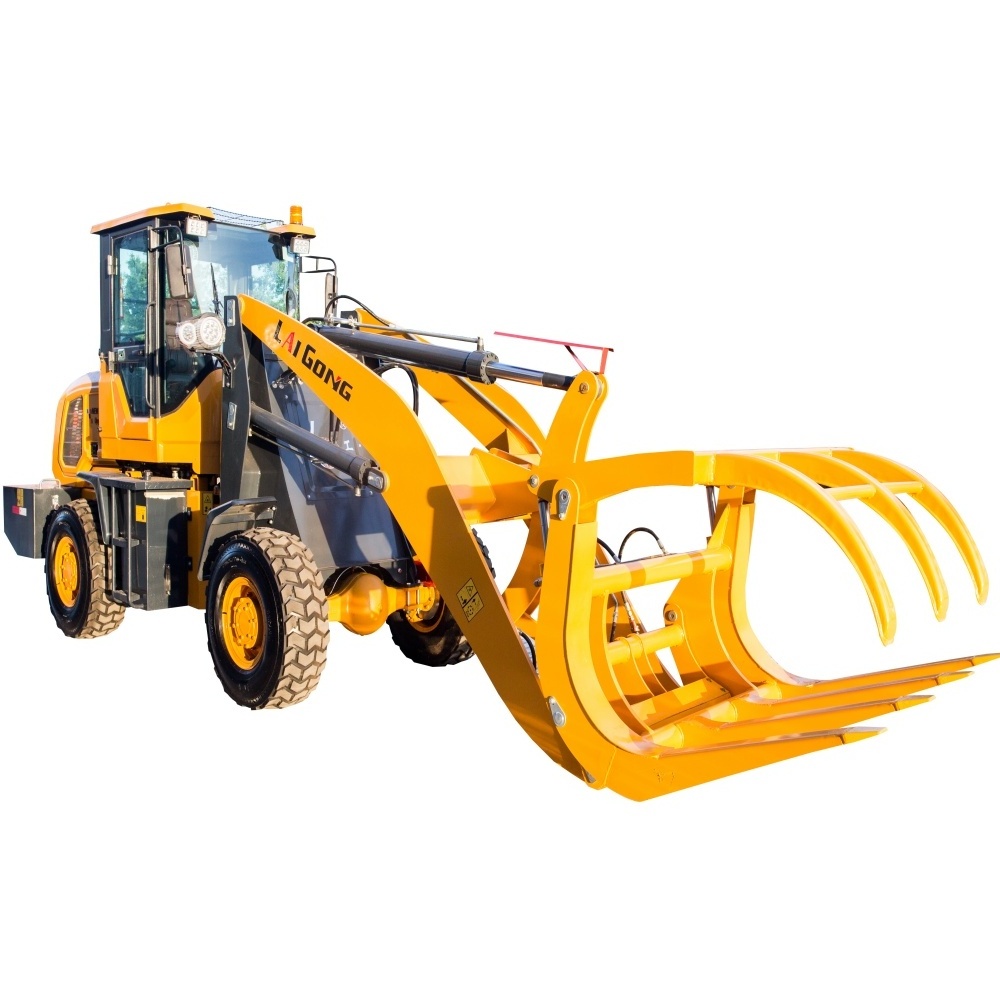

Wood grabber

Grass catcher

Quick-change mechanism

Marble fork

Fork Holding Machine

Grain Bucket

LG926

Engine:YUNNEI 490
Load :1.5t
Dumping height:3.2m
Bucket width :1800mm

LG928

Engine:YUNNEI 490 Turbo
Load :1.6t
Dumping height:3.2m
Bucket width :1900mm

LG936

Engine:YUNNEI 4102 Turbo
Load :1.8t
Dumping height:3.5m
Bucket width :2000mm

LG938

Engine: YUCHAI 4102 Turbo
Load :2t
Dumping height:3.6m
Bucket width : 2200 mm

LG939

Engine: YUCHAI 4105 Turbo
Load :2.5t
Dumping height:3.6m
Bucket width :2200mm

LG946

Engine: DONGFANGHONG 6105T
Load :3t
Dumping height:3.8m
Bucket width : 2400 mm

Main Categories

wheel-loader

mini excavator

self-loading concrete mixer truck

crawler tactor

all-terrain forklift

backhoe loader

LAIGONG wheel-loader is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
