Quick Details
-
Weight:
-
50 KG
-
Marketing Type:
-
Other
-
Core Components:
-
Top sub, External Cylinder, Drive Chuck
-
Drilling Diameter:
-
140mm, 146mm, 152mm, 165mm, 178mm
-
Name:
-
High Air Pressure Dth Hammers Without Foot Valve
-
External Diameter:
-
148mm
-
Length without bit:
-
1248mm
-
Recommended Rotation Speed:
-
30-60r/min
-
Working Pressure:
-
1.0-2.5 Mpa
-
Bit Shank:
-
DHD380
-
Achine Type:
-
Drilling Tool
-
Material:
-
Alloy Steel
-
Application:
-
Water Well Drilling Rock Drilling Mining Quarry Or Water Well Drilling
-
Local Service Location:
-
China
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Csdrill
-
Dimension(L*W*H):
-
1248mm
-
Weight:
-
50 KG
-
Marketing Type:
-
Other
-
Core Components:
-
Top sub, External Cylinder, Drive Chuck
-
Drilling Diameter:
-
140mm, 146mm, 152mm, 165mm, 178mm
-
Name:
-
High Air Pressure Dth Hammers Without Foot Valve
-
External Diameter:
-
148mm
-
Length without bit:
-
1248mm
-
Recommended Rotation Speed:
-
30-60r/min
-
Working Pressure:
-
1.0-2.5 Mpa
-
Bit Shank:
-
DHD380
-
Achine Type:
-
Drilling Tool
-
Material:
-
Alloy Steel
-
Application:
-
Water Well Drilling Rock Drilling Mining Quarry Or Water Well Drilling
-
Local Service Location:
-
China

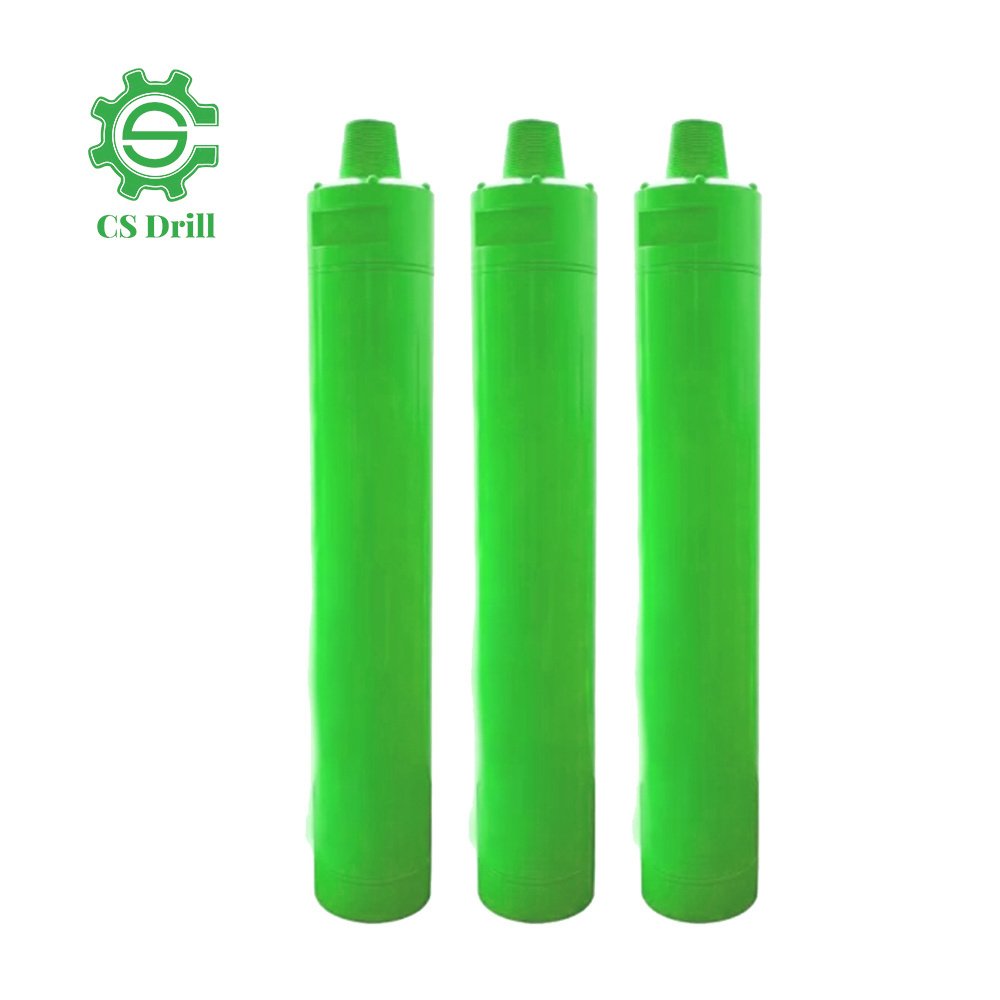

DTH Drilling Hammer DHD360/QL60/Mission60 Without foot valve For Mining
Product Description
The Characteristics Of High Air Pressure DTH Hammers Without foot valve:
It is a kind of high air pressure DTH Hammer without foot valve, our newest design. It is also one of the most advanced DTH Hammers in the world.
|
Length
(without bit)
|
Weight (without bit)
|
External Diameter
|
Bit Shank
|
Hole range
|
|
|
|||
|
1248mm
|
100KG
|
φ148mm
|
DHD360/QL60
|
φ150-φ190mm
|
API 3 1/2" Reg
|
|
|||
|
Working Pressure
|
Impact rate at 1.5Mpa
|
|
|
Air consumption
|
|
|
|||
|
|
|
|
|
1.0Mpa
|
1.8Mpa
|
2.2Mpa
|
|||
|
1.0-2.5Mpa
|
28HZ
|
30-60r/min
|
|
12m³/min
|
20m³/min
|
28m³/min
|
|||
Advantages :
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. lower energy consumption and higher impact frequency.
The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. lower energy consumption and higher impact frequency.
The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
Contact us
Packing & Delivery
Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation. Also we can customize package according to your special requests.
