Quick Details
-

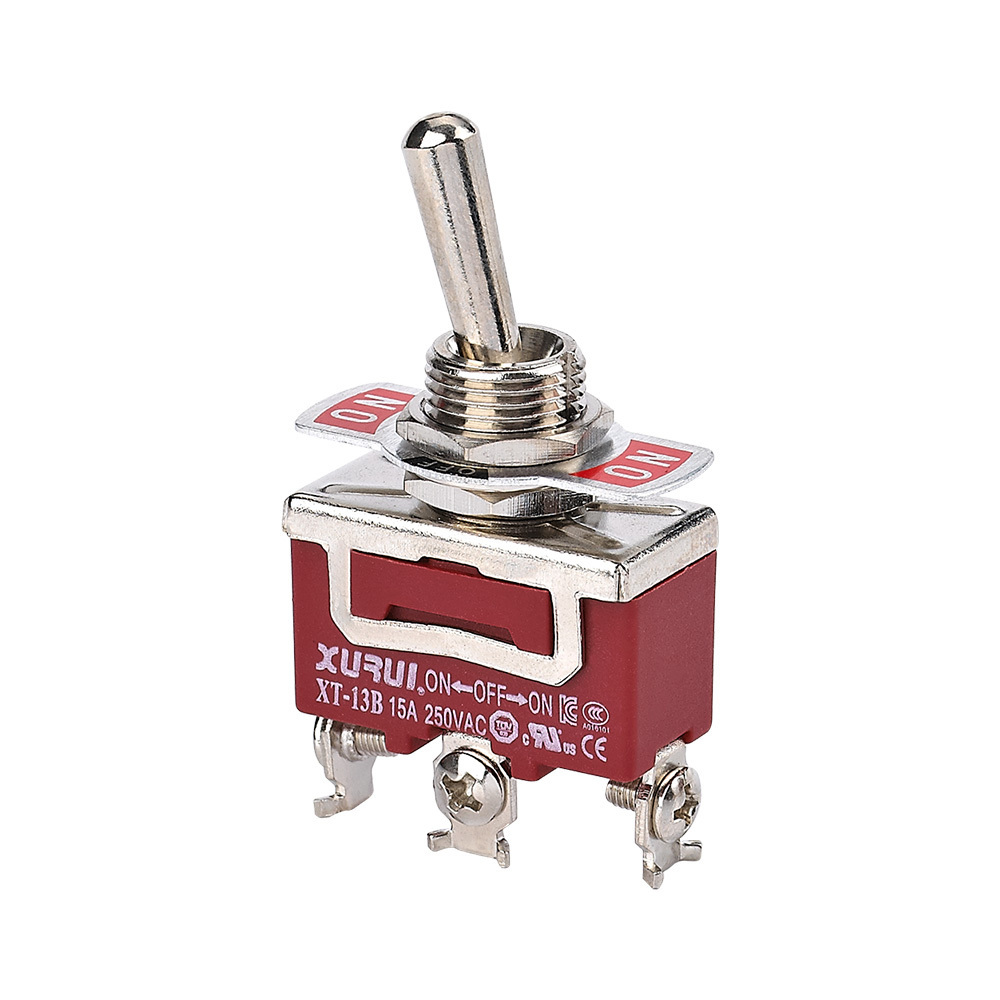

Model Number:
-
XT-13B, XT-13A,XT-13AF
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times above
-
Terminal:
-
Screw terminal or Solder Terminal
-
Certificate:
-
UL TUV KC CE CCC
-
Waterproof:
-
Protecting Cap
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
House Material:
-
PA66
-
Electrical Life:
-
100,000 times above
-
Color:
-
Red, Black
-
Operated Temperature:
-
-25-80℃
-
Contact Form:
-
SPDT, ON-OFF-ON
-
Type:
-
machine toggle switch
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XT-13B, XT-13A,XT-13AF
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times above
-
Terminal:
-
Screw terminal or Solder Terminal
-
Certificate:
-
UL TUV KC CE CCC
-
Waterproof:
-
Protecting Cap
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
House Material:
-
PA66
-
Electrical Life:
-
100,000 times above
-
Color:
-
Red, Black
-
Operated Temperature:
-
-25-80℃
-
Contact Form:
-
SPDT, ON-OFF-ON
-
Type:
-
machine toggle switch
- Adopt thermoplastic crust, compact construction, and simple installation;
- May install the protecting cap, can against oil and dustproof;
- Hand reset and automatic reset for flexible choice;
- Widely used in electrical equipment, automatic machine, communication equipment and instrument, electro motion tool etc.
|
Item |
Data |
|
|
Rating load |
15A/250VAC,25A/250VAC MTS:6A125,250V |
|
|
Operating frequency |
30times/min |
|
|
Insulation resistance |
100M Ω Above DC500V |
|
|
Contact resistance |
25m Ω initial value |
|
|
Withstand voltage |
Non-connection wire |
1000VAC |
|
Every terminal |
1500VAC |
|
|
Vibration |
Misoperation |
10-55Hz Amplitude 1.5mm |
|
Impact |
Durable |
1000m/s ² |
|
Misoperation |
300m/s ² |
|
|
Life |
Electrical |
100,000 above |
|
Mechanical |
500,000 above |
|
|
Protection degree |
IP40 |
|
|
Operating temperature |
-25~+80 ℃ |
|
|
Operating humidity |
< 85% |
|
- Quality Assurance: We offer replacement if you receive defective or wrong items in 12 months from the shipping date.
- Supplied directly from factory with more than 16 years experience.
- Short Delivery Time: Stock in 2 days, order as short as 7 days.
- Small order welcome.
- Payment by Paypal is supported.
Zhejiang Xurui Electronic Co., Ltd , established in 2002, is specialized in the research, development, production of industrial products.
Xurui has a modern workshop covering more than 2,000 square meters. There are about 120 employees, incuding more than 10 years experienced technicians.
Main Products: 1. Micro Switch; 2. Limit Switch; 3. Toggle Switch; 4. Foot Switch; 5. Solid State Relay; 6. Reed Switch; 7. Proximity Switch.
Q: How do you control the products' quality?
A: 100% auto inspection machine and manual test together before packing.
Q: Would you accept to use our logo?
A: If you have good quality, we would like to do OEM and ODM, customized specification.
