Quick Details
-
Brand Name:
-
TIANYI SUNS
-
Model Number:
-
Multi-jet Water Meter
-
Standard:
-
ISO 4064 Class B
-
Color:
-
Blue,Black,Red
-
Dial:
-
Wet Dial
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Feature:
-
High Performance
-
Installation:
-
Horizonal Prepaid Water Meter
-
Application:
-
Household|Resident
-
Work Environment:
-
Dry Water Meter
-
Size:
-
DN15-50mm
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
TIANYI SUNS
-
Model Number:
-
Multi-jet Water Meter
-
Standard:
-
ISO 4064 Class B
-
Color:
-
Blue,Black,Red
-
Dial:
-
Wet Dial
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Feature:
-
High Performance
-
Installation:
-
Horizonal Prepaid Water Meter
-
Application:
-
Household|Resident
-
Work Environment:
-
Dry Water Meter
-
Size:
-
DN15-50mm

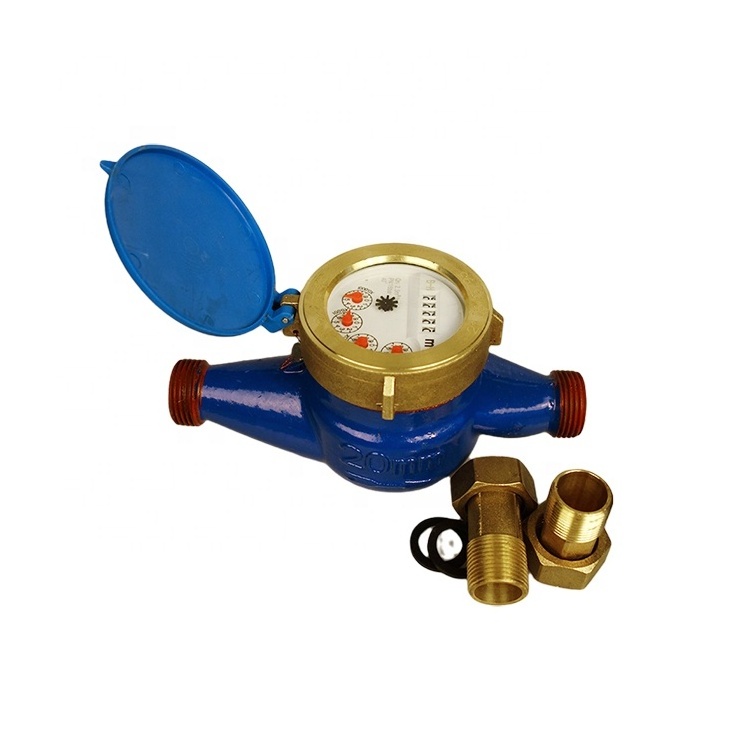

LXSG-15E-50E Mechanical Bronze Multi Jet Dry Dial Wet Type Water Meter
Products Description
Specification
1. Type name:
Multi-jet dry-dial cold type
2. Model No.: LXSG-15E-50E
3. Standard :ISO 4064 Class B
4. Material: Cast iron
5. Feature : Iron body ,brass cover, brass couplings
6. Horizontal installation
Working Conditions
Water temperature<50ºC (Hot water meter<90°C)
Water pressure <1MPa(PN: 1.6Pa/16bar)
<0.1 MPa
<0.063MPa(R80/R100)
<0.063MPa(R80/R100)
Accuracy
From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt) Exclusive +-5%
From transitional flow-rate (Qt) Inclusive,to overload flow rate (Qs) Exclusive +- 2%
Technical Details
|
Meter Size DN (mm)
|
Class
|
Qs
Overload Flow |
Qp
Nominal Flow |
Qt
Transitional Flow |
Qmin
Min Flow |
Starting
Flow |
Min
Reading |
Max
Reading |
||||
|
Nominal
Size DN (mm) |
Class of
measurement |
m³/h
|
Permanent
flow-rate qp(m3/h) |
L/h
|
|
|
m³
|
|
||||
|
15
|
B
|
3
|
1.5
|
120
|
30
|
8
|
0.0001
|
99999
|
||||
|
20
|
B
|
5
|
2.5
|
200
|
50
|
10
|
0.0001
|
99999
|
||||
|
25
|
B
|
7
|
3.5
|
280
|
70
|
12
|
0.0001
|
99999
|
||||
|
32
|
B
|
12
|
6.0
|
480
|
120
|
14
|
0.0001
|
99999
|
||||
|
40
|
B
|
20
|
10
|
800
|
200
|
40
|
0.0001
|
99999
|
||||
|
50
|
B
|
30
|
15
|
3000
|
450
|
45
|
0.0001
|
99999
|
||||
Installation
Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
