Quick Details
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, Motion Detection, APP Control, Voice Interaction, Build-in GPS, ADAS, Passenger count
-
Voltage:
-
9-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ODM OEM ULV Bevin
-
Model Number:
-
B9204-G6-ADXB
-
ADAS:
-
FCW, LDW, PCW, Vehicle too close
-
DMSX:
-
Seat belts, Smoking, Phonecall, Yawn, Eyes close, Distracted driving
-
DMSX-2:
-
Abnormal driver, Video occlusion, Sunglasses identification
-
BSD:
-
Right front, left front, right, left, front. 5 choose 2
-
Language:
-
English, Russian, Portuguese, Spanish, Vietnamese, Free customization
-
Positioning:
-
GPS/BD/GLONASS
-
Video input:
-
4CH H.265/H.264 1080P/720P
-
Storage:
-
Maximum support 1x2.5 inch HDD/SDD and 1x512G SD card
-
I/O Port:
-
2 x RS232, 1 x RS485 can be customized, 8 I/O Input, 2 I/O Output
-
Network:
-
4G or WiFi
Quick Details
-
Car Fitment:
-
Scania Heavy Duty - Europe
-
Angle:
-
120°
-
Resolution:
-
1080P 720P
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, Motion Detection, APP Control, Voice Interaction, Build-in GPS, ADAS, Passenger count
-
Voltage:
-
9-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ODM OEM ULV Bevin
-
Model Number:
-
B9204-G6-ADXB
-
ADAS:
-
FCW, LDW, PCW, Vehicle too close
-
DMSX:
-
Seat belts, Smoking, Phonecall, Yawn, Eyes close, Distracted driving
-
DMSX-2:
-
Abnormal driver, Video occlusion, Sunglasses identification
-
BSD:
-
Right front, left front, right, left, front. 5 choose 2
-
Language:
-
English, Russian, Portuguese, Spanish, Vietnamese, Free customization
-
Positioning:
-
GPS/BD/GLONASS
-
Video input:
-
4CH H.265/H.264 1080P/720P
-
Storage:
-
Maximum support 1x2.5 inch HDD/SDD and 1x512G SD card
-
I/O Port:
-
2 x RS232, 1 x RS485 can be customized, 8 I/O Input, 2 I/O Output
-
Network:
-
4G or WiFi
Product Specifications
|
ADAS
|
FCW, LDW, PCW, Vehicle too close
|
|
DMSX
|
Seat belts, Smoking, Phonecall, Yawn, Eyes close, Distracted driving
|
|
DMSX-2
|
Abnormal driver, Video occlusion, Sunglasses identification
|
|
BSD
|
Right front, left front, right, left, front. 5 choose 2
|
|
Language
|
English, Russian, Portuguese, Spanish, Vietnamese, Free customization
|
|
Video input
|
4CH H.265/H.264 1080P/720P
|
|
Storage
|
Maximum support 1x2.5 inch HDD/SDD and 1x512G SD card
|
|
Positioning
|
GPS/BD/GLONASS
|
|
Port
|
2 x RS232, 1 x RS485 can be customized, 8 I/O Input, 2 I/O Output
|
|
Network
|
Upload ADAS/DMS alarm, video and GPS track to CMS platform via
4G or WiFi
|
|
PRODUCT PARAMETERS
|
|
|
|

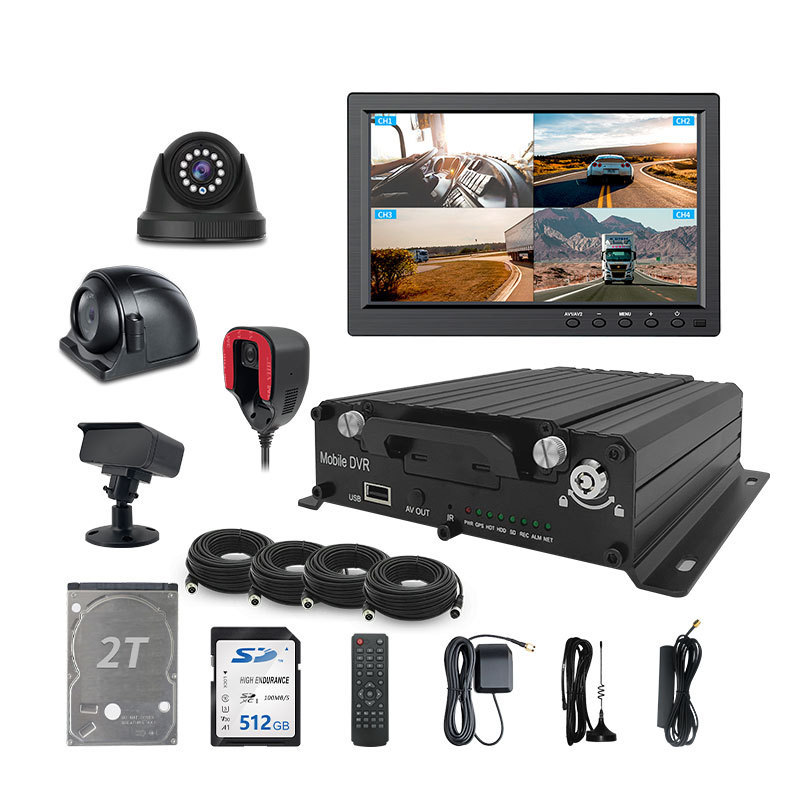

Product
|
SD Card 4CH 4G WiFi RS232 ADAS DMS Seat belt BSD MDVR Kit
|
|
|
Model
|
B9204-G6-ADXB
|
|
|
ADAS
|
FCW, LDW, PCW, Vehicle too close
|
|
|
DMSX
|
Seat belts, Smoking, Phonecall, Yawn, Eyes close, Distracted driving, Abnormal driver, Video occlusion, Sunglasses identification
|
|
|
BSD
|
Right front, left front, right, left, front. 5 choose 2
|
|
|
System language
|
English, Russian, Portuguese, Spanish, Vietnamese, other (Free customization)
|
|
|
Video format
|
H.265
/H.264. H.265 save 50% space
|
|
|
Video input
|
4CH 720P/1080P, HD without noise
|
|
|
Video output
|
1CH mixed video output (Can be changed to VGA output)
|
|
|
Video encryption
|
Support
AES256
encryption
|
|
|
Audio input
|
4CH G711a audio input，Clear sound without noise
|
|
|
Audio output
|
1CH，Can be connected to speakers
|
|
|
RS232
|
2 x RS232, 1 x RS485 can be customized
|
|
|
Alarm input
|
8 I/O input. The I/O input can be connected to reverse, left turn, and right turn
|
|
|
Alarm Output
|
2CH I/O output,
Power off the vehicle
or connect the buzzer
|
|
|
Positioning
|
Support built-in
GPS/BD/GLONASS
module
|
|
|
G-sensor
|
Support built-in acceleration sensor, Vehicle Collision Alert
|
|
|
Network
|
Upload ADAS/DMS alarm, video and GPS track to CMS platform via 4G or WiFi
|
|
|
CMS Server
|
CMSV6, JT808-2013/2019
Protocol Platform, Customer supply platform(ULV provides network communication protocol)
|
|
|
Storage
|
Maximum support
1x2.5 inch HDD/SDD and 1x512G SD card
, loop recording
|
|
|
Firmware upgrade
|
Support SD Card/U disk Upgrade, Support Network upgrade
|
|
|
Input voltage
|
Adaptive 8~36V wide power supply voltage, with protection functions such as overvoltage, undervoltage, short circuit, and reverse connection
|
|
|
Consumption
|
Normal work maximum：5W，standby：0.5W
|
|
|
Temperature
|
-20℃ to +70℃
|
|
|
Humidity
|
20% to 80%
|
|
|
Size
|
168*143*56 mm
|
|
|
Camera
|
|
|
|
|||
|
Camera Name
|
ADAS 720P
|
DMS 720P
|
Front（Birdview）BSD Camera
|
|||
|
Camera model
|
A1C
|
DA-1C1
|
M-AHD-1251-D
|
|||
|
Imaging target
|
1/3 inch
|
1/3 inch
|
1/3 inch
|
|||
|
Focal length
|
3.6mm
|
3.6mm
|
2.8mm
|
|||
|
Aperture
|
F2.4
|
F2.2
|
F2.5
|
|||
|
Field of view
|
D:85° H:60° V:53°
|
D:82° H:58° V:36°
|
HFOV:95°
|
|||
|
Image mode
|
Black and white image/color image switchable
|
Black and white image
|
Black and white image/color image switchable
|
|||
|
HDR
|
70.4dB
|
70.4dB
|
70.4dB
|
|||
|
Format
|
AHD
|
AHD
|
AHD
|
|||
|
Resolution
|
1280*720
|
1280*720
|
1280*720
|
|||
|
Frame rate
|
25fps
|
25fps
|
25fps
|
|||
|
Voltage
|
12V
|
12V(+/-3V)
|
12V
|
|||
|
Waterproof
|
Not supported
|
Not supported
|
IP66
|
|||
|
Connector
|
4Pin Aviation head
|
4Pin Aviation head
|
4Pin Aviation head
|
|||
|
Temperature
|
-20℃-70℃
|
-20℃-70℃
|
-20℃-70℃
|
|||
