Quick Details
-
Place of Origin:
-
China
-
Operation Mode:
-
S3
-
Voltage:
-
24v
-
Power:
-
800w
-
Speed:
-
3600rpm
-
Rotation:
-
CW
-
O.D:
-
80MM
-
specification:
-
high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
Quick Details
-
Speed(RPM):
-
3600RPM
-
Continuous Current(A):
-
120A
-
Efficiency:
-
Other
-
Place of Origin:
-
China
-
Operation Mode:
-
S3
-
Voltage:
-
24v
-
Power:
-
800w
-
Speed:
-
3600rpm
-
Rotation:
-
CW
-
O.D:
-
80MM
-
specification:
-
high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
1.low noise,stable running
2.easy brush replacement
3.OEM service available high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
4.efficient and long continuous running time
5. Customization available
6.robust construction for long and reliable service life
7.100% copper wire high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
8.12V, 24V, 36V, 48V,60V,72V as per customers' option
9.Factory established in 1996 with nearly 20 years' manufacturing experience .

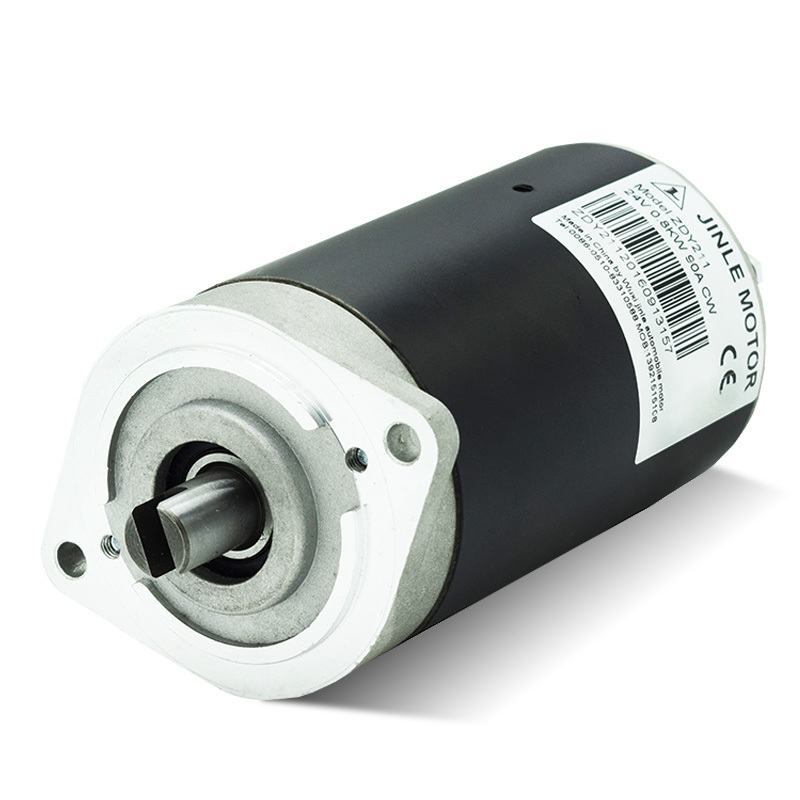

1.Specification of high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation :
| type | voltage | power | Speed | Rotation | O.D |
| ZDY211 | 24V | 0.8KW | 3600rpm | cw | 80MM |
Work duty : S3
Insulation class: H
Protection class: Ip54
Price:We have our own factory so that we can offer the more competitive price
Quality:Topest materials,skilled workers and strict test system to provide good quality products
Usage:The products are widely used in electric folk-lift truck, electric rail car, electric sightseeing car and so on
2.Drawings of high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
3.Parameters:
| Unload | Speed(n) | 5120(rpm) |
| Current(l) | 9.310(A) | |
| Max_Torque | Torque(M) | 2.024(N.m) |
| Current(I) | 56.230(A) | |
| Speed(n) | 3242(RPM) | |
| Eff | 50.78% | |
| Output Power(P2) | 687.10(W) | |
| Max_Efficiency: | Eff | 55.58% |
| Speed(n) | 4056(RPM) | |
| Torque(M) | 0.990(N.m) | |
| Current(I) | 31.520(A) | |
| Output Power(P2) | 420.50(W) | |
| Max_Pout: | Eff | 50.78% |
| Speed(n) | 3242(RPM) | |
| Torque(M) | 2.024(N.m) | |
| Current(I) | 56.230(A) | |
| Output Power(P2) | 687.10(W) |
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
high rpm 3600rpm 24v dc motor brushed 800w 1 hp with cw rotation
Q: Could we get the samples?
A: Yes! Definitly! The samples will be sent to you.
