Quick Details
-
Purify Efficiency:
-
98%
-
Weight (KG):
-
165 kg
-
Product Name:
-

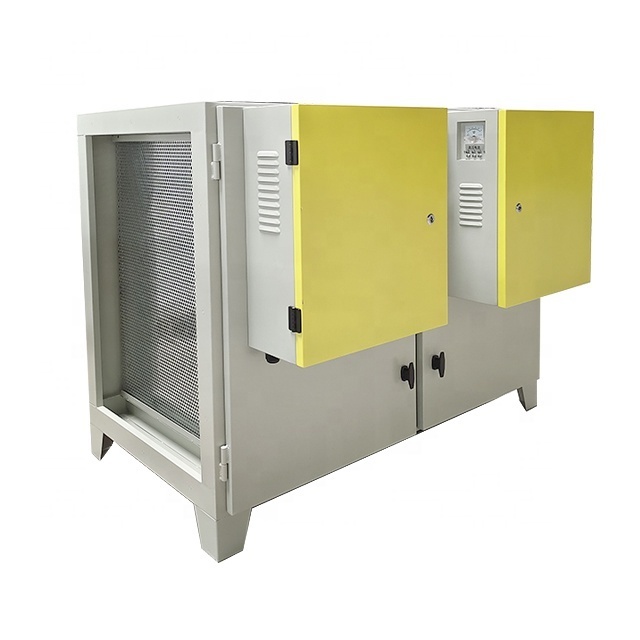

Electrostatic Precipitator
-
Dimension:
-
1370*965*1060mm
-
Flange Size:
-
600*825mm
-
Power:
-
1110W
-
emission way:
-
100% low altitude emission
-
OEM:
-
Acceptable
-
Advantage:
-
Purifying Efficiency ≥ 98%
-
After-sales Service Provided:
-
Online support
-
Filter Cell:
-
Washable
-
Certification:
-
ISO9001 CE
Quick Details
-
Core Components:
-
supply power, electrostatic filter
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
KELV
-
Purify Efficiency:
-
98%
-
Weight (KG):
-
165 kg
-
Product Name:
-
Electrostatic Precipitator
-
Dimension:
-
1370*965*1060mm
-
Flange Size:
-
600*825mm
-
Power:
-
1110W
-
emission way:
-
100% low altitude emission
-
OEM:
-
Acceptable
-
Advantage:
-
Purifying Efficiency ≥ 98%
-
After-sales Service Provided:
-
Online support
-
Filter Cell:
-
Washable
-
Certification:
-
ISO9001 CE
Specification
Model-H （
When you choose, you can consult customer service first to ensure that you choose the right one
）
|
Model
|
Air Flow
(M³/h)
|
Volume(mm)
(L*W*H)
|
Flange Size
（mm）
|
Weight
(kg)
|
Voltage
(V)
|
Power
(W)
|
|
KL-H-2A
|
2000
|
700*945*880
|
580*645
|
83
|
220
|
490
|
|
KL-H-4A
|
4000
|
1370*945*880
|
580*645
|
145
|
220
|
980
|
|
KL-H-6A
|
6000
|
1370*965*1060
|
600*825
|
165
|
220
|
1110
|
|
KL-H-8A
|
8000
|
1400*1490*820
|
1125*585
|
232
|
220
|
1430
|
|
KL-H-10A
|
10000
|
1400*1605*880
|
1240*645
|
254
|
220
|
2050
|
|
KL-H-12A
|
12000
|
1400*1635*1060
|
1270*825
|
294
|
220
|
2200
|
|
KL-H-16A
|
16000
|
1400*1490*1500
|
1125*1265
|
388
|
220
|
2850
|
|
KL-H-20A
|
20000
|
1400*1605*1620
|
1240*1385
|
464
|
220
|
3200
|
|
KL-H-25A
|
25000
|
1400*2090*1500
|
1725*1265
|
538
|
220
|
3600
|
|
KL-H-30A
|
30000
|
1400*2265*1620
|
1900*1385
|
660
|
220
|
4800
|
|
KL-H-36A
|
36000
|
1400*2310*1980
|
1645*1745
|
730
|
220
|
5400
|
|
KL-H-42A
|
42000
|
2100*2090*1500
|
1725*1265
|
772
|
220
|
7200
|
|
KL-H-56A
|
50000
|
2100*2265*1620
|
1900*1385
|
990
|
220
|
8100
|
Product Description
Product Analysis
What is electrostatic precipitator（ESP）?
Electrostatic precipitator is a type of filter that uses static electricity to remove oil fume from exhaust fumes before it
exit from the exhaust pipe. The core part of the ESP is the electrostatic cell,The honeycomb structure electrostatic cell which is charged with a high voltage by high voltage power supply.
exit from the exhaust pipe. The core part of the ESP is the electrostatic cell,The honeycomb structure electrostatic cell which is charged with a high voltage by high voltage power supply.
Oil fume particles pick up a charge when they pass the charged electrodes. Then the charged oil fume particles are attracted to oppositely charged collecting cylinders. As a result,85%-95% of oil fume will be moved.
Working principle:
