Hot press heating machine
Competitive price
Professional supplier
Good after-service.
- Product Details
- {{item.text}}
Quick Details
-
Return Force (kN):
-
120 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDIO
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000/1300/42mm
-
Weight (T):
-
11 T
-
Model Number:
-
1330
-
Motor Power (kw):
-
81 kw
-
Power Source:
-
Hydraulic
-
Type:
-
Hydraulic Press
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
3000mm
-
Ejector Force (kN):
-
120
-
Return Force (kN):
-
120 kN
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEDIO
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3000/1300/42mm
-
Weight (T):
-
11 T
-
Model Number:
-
1330
-
Motor Power (kw):
-
81 kw
-
Power Source:
-
Hydraulic
-
Type:
-
Hydraulic Press
Product Overview
wood

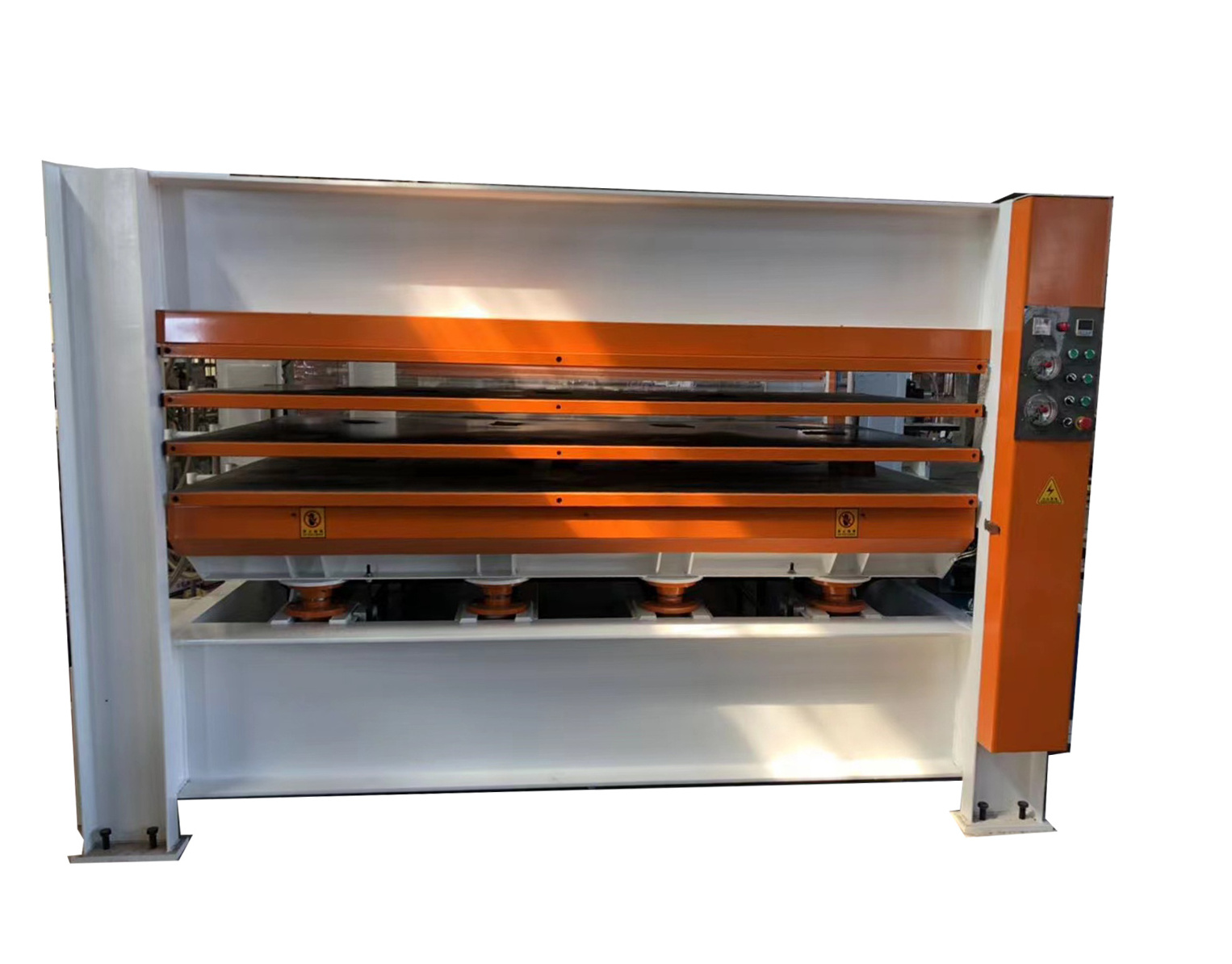

Hydraulic hot heating press machine
Professional for wood decoration heating press.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
total pressure
|
: 1200 kn/ 1600kn
|
|
|
|
2
|
Rated oil pressure
|
25mpa
|
|
|
|
3
|
Heating method:
|
Electric heating of heat transfer oil
|
|
|
|
4
|
Closing speed
|
30mm/s
|
|
|
|
5
|
Number and diameter of oil
|
cylinders 8/100mm
|
|
|
|
6
|
Unit surface pressure
|
4.1KGF/cm2
|
|
|
|
7
|
Cylinder stroke
|
500mm
|
|
|
|
8
|
stalled power Hydraulic power
|
7.5kw Thermal power 2.2kw Heating power 81kw
|
|
|
